The robotic Leica iCON iCS50 construction sensor combines visual measurement technology with the wireless Leica vPen to create high-precision digital templates ready for your CNC machinery.
Designed for
Designed for stonemasons, glaziers, bathroom fitters, kitchen and millwork shops, and marine interior professionals who need to capture real-world dimensions and bring them straight back into CAD/CAM — finalised on site, ready for the CNC.
Benefits

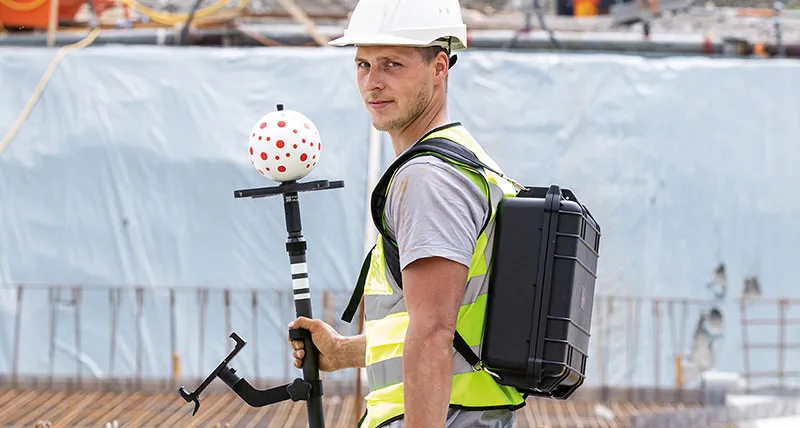

Ready in just a few steps — quick-mount tripod and auto-setup get you measuring fast.

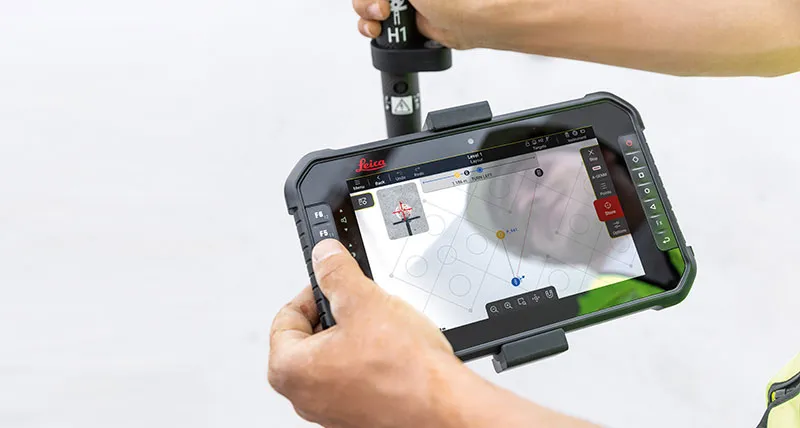

Fast layout and aiming — high-resolution camera live stream with a high-speed direct-drive motor.

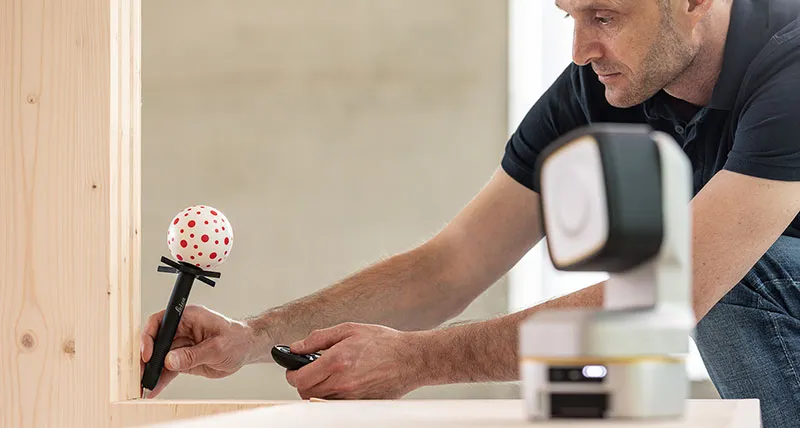

Wireless Leica vPen — touch and measure on any surface, including glass and edges, with ±1 mm accuracy at 10 m.

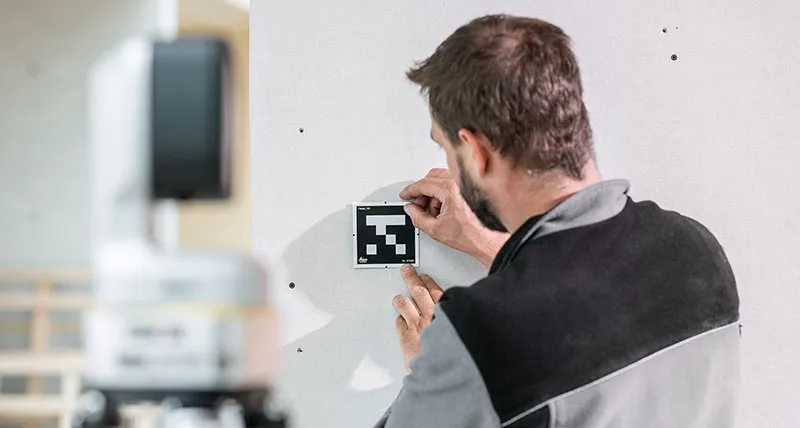

Leica vTarget — automated relocation lets you reposition the sensor in seconds without losing accuracy.

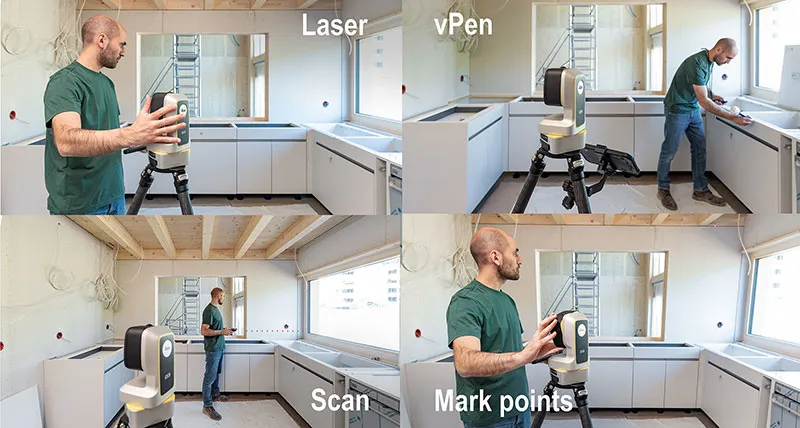

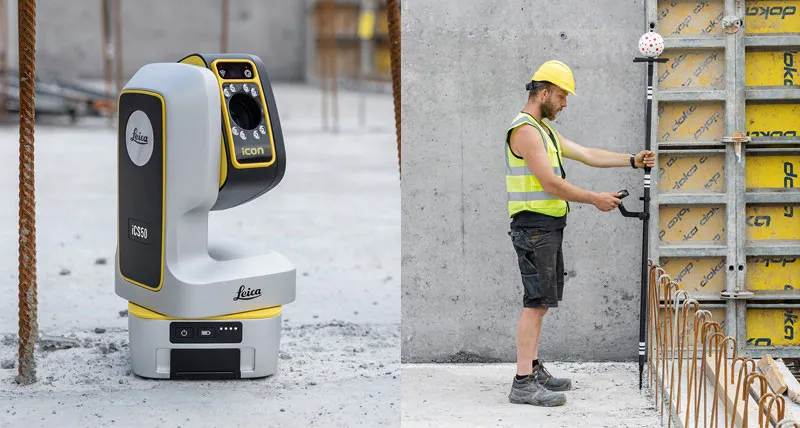

High flexibility — switch seamlessly between laser, vPen and line scans to match every measurement situation.
Leica iCON iCS50
The Leica iCON iCS50 is a robotic construction sensor purpose-built for digital templating. Combining state-of-the-art visual measurement technology with the unique wireless Leica vPen, it lets one person capture accurate 2D and 3D measurement data — on stone, glass, wood, metal or painted drywall — and turn it into a production-ready DXF before leaving the site.

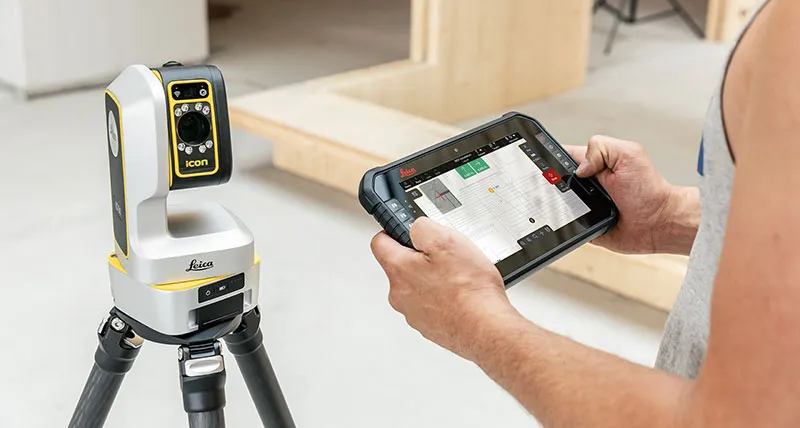

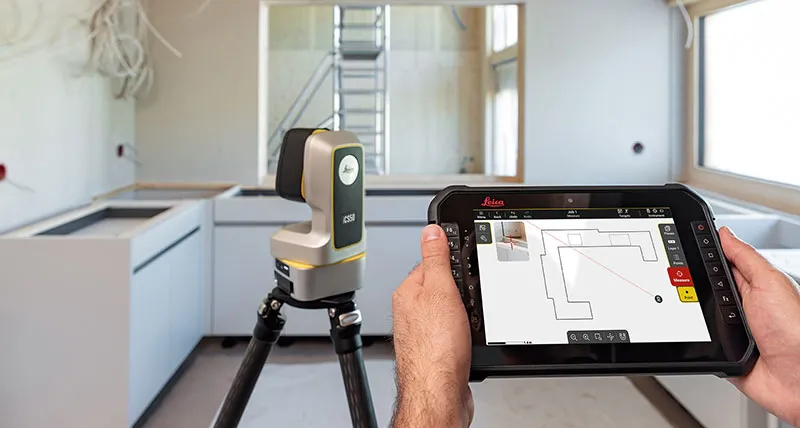

Pair it with the Leica iCON trades for Templating software to walk through guided workflows for countertops, splashbacks, staircases, window and door installations and marine interiors. Add offsets, roundings and cut-outs for sinks, hobs, taps, sockets, holes and notches directly on your tablet, then send the finished file straight to your CNC machinery via cable, e-mail or the cloud.
Because the templates are built on real, on-site dimensions — not transcribed measurements — production becomes faster, more accurate and dramatically less wasteful.
Technical data
| Instrument category | iCON Robotic Construction Sensor |
|---|---|
| Angular accuracy (Hz / V) | 3″ (0.93 mgon) |
| 3D point accuracy — laser | 1.0 mm @ 10 m / 2.0 mm @ 50 m |
| 3D point accuracy — vPen | 1.0 mm @ 10 m |
| Reflectorless range (Kodak White 90%) | 0.3 to 50 m (250 m optional) |
| vPen working range | 0.7 to 10 m |
| Direct drives | 180 °/s |
| Cameras | Overview 12.33 MP · On-axis 12.33 MP · Fish-eye 13.31 MP · 16× zoom |
| Tilt compensation range | ± 3° |
| Interfaces | USB-C (×2), Wi-Fi |
| Weight | 3.37 kg |
| Protection class | IP54 |
| Operating temperature | −20 °C to +50 °C |
| Battery | Rechargeable Li-Ion · > 8 h operating time · 70 % charge in 1 h |
| Laser class | Class 2 (IEC 60825-1) |
| On request |
|
Other features
- One-person operation — compact, easy to carry, set up and run by a single user.
- Visual-based target lock keeps the iCS50 connected to the vPen and vTargets at all times.
- Automatic instrument-movement alert prevents accuracy loss after accidental bumps.
- Powerful on-site CAD tools: connect lines, add offsets, layers, profiles, dimensions and cut-outs (sink, hob, tap, sockets, holes, notches).

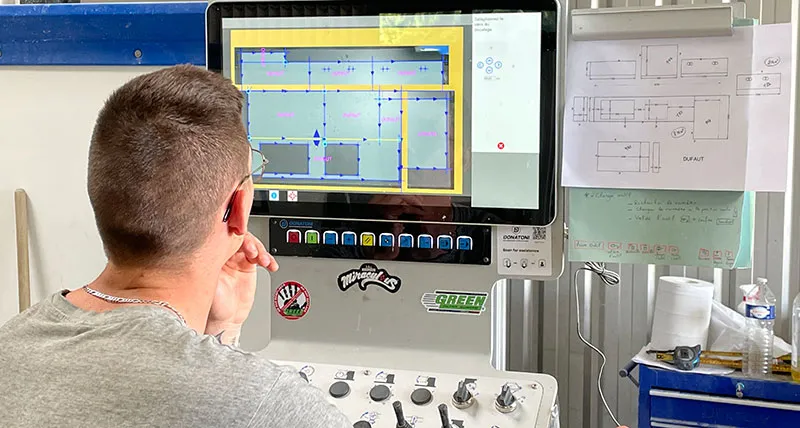

- Exports production-ready DXF files via cable, e-mail or cloud.
- Mechanical theft protection (Kensington lock).
Details
Accessories
- Leica iCON trades for Templating software
- Leica vPen wireless measuring pen
- Leica CSX8 tablet with pouch
- RC10 remote control
- GZM3 target plate
- Leica vTarget plates with stands and stickers
- Leica CTP108 carbon tripod
- Indoor charger and rugged carry case
