Aquatec is an advanced, versatile, high-performance abrasive waterjet cutting system, able to accommodate the most diverse production demands in different application fields, delivering highly accurate cuts.
Benefits

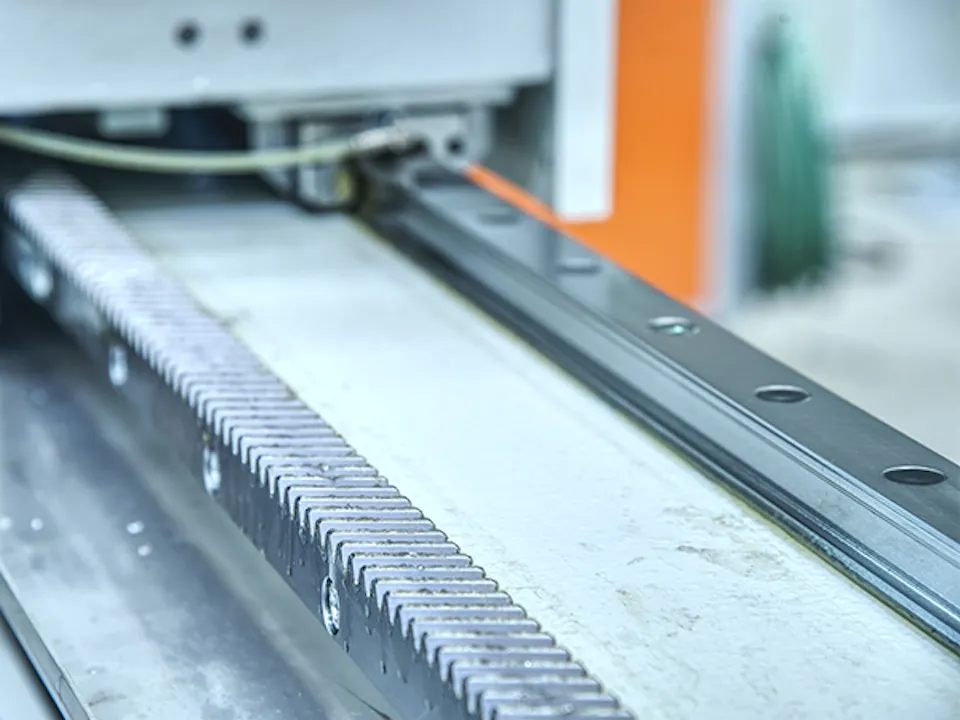

Unmatched cutting performance
The open frame structure with electric gantry on two separate thick supports on a basement anchored to the floor offer high rigidity even with rapid speed up to 54 m/ min e acceleration up to 2 m/s 2.

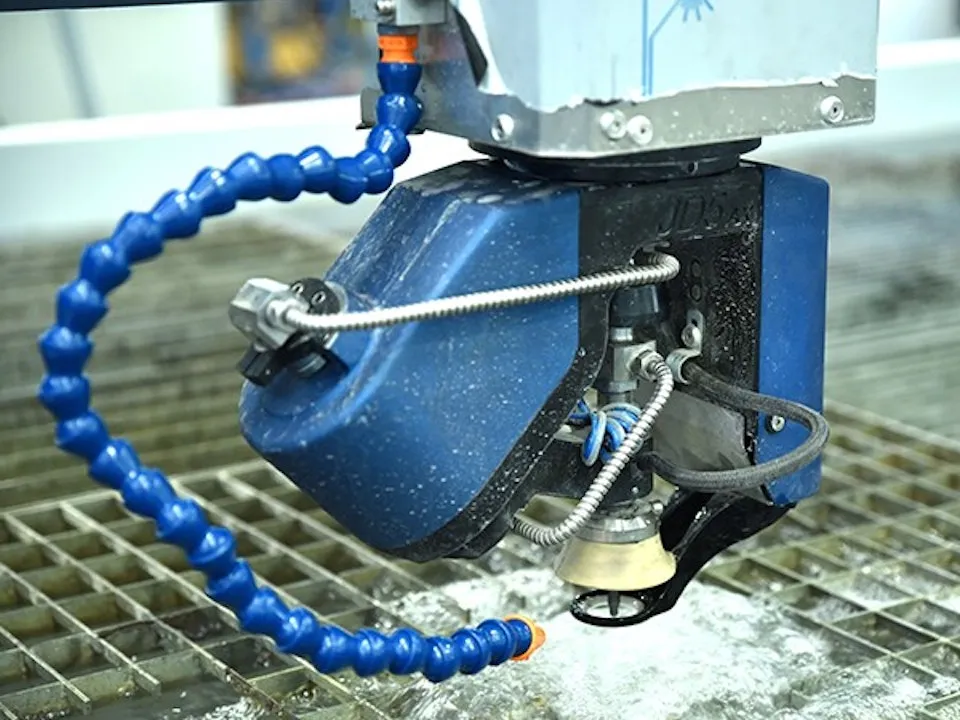

Infinite opportunity savings up to 33% of the cycle time
The most compact solution on the market with infinite rotation 33% less cuttig cycle avoiding to recover the revolutions of the C axis to align internal wires and tubes.

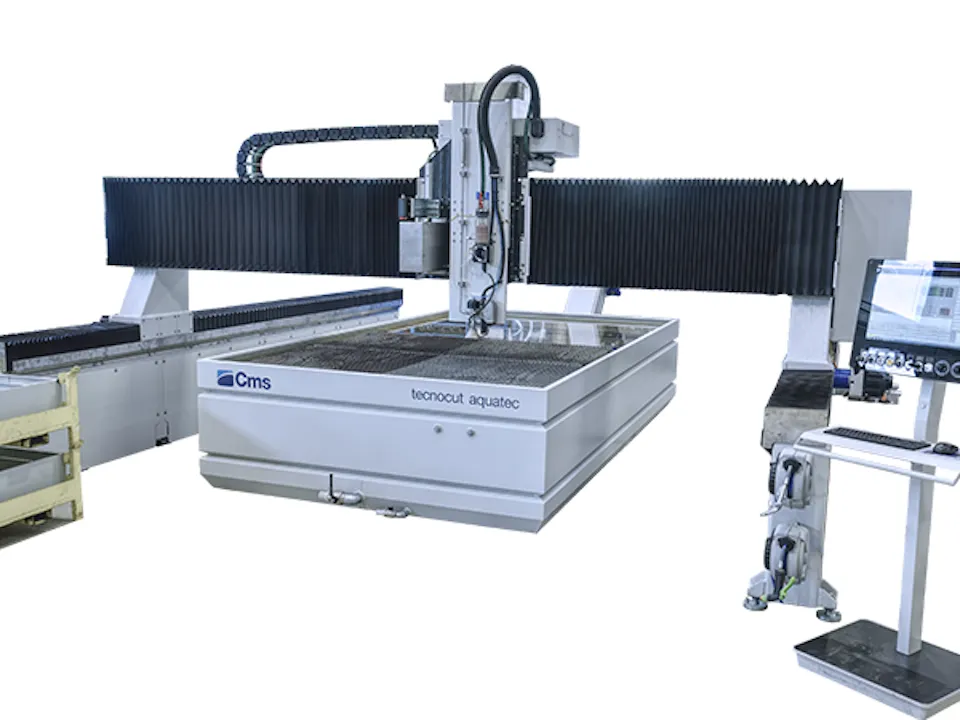

Easy operations: access of worktop from 4 sides
Excellent access to the cutting area, the large gantry and modular frame allow configurations with wide space around the catch tank for easy loading and unloading operations.

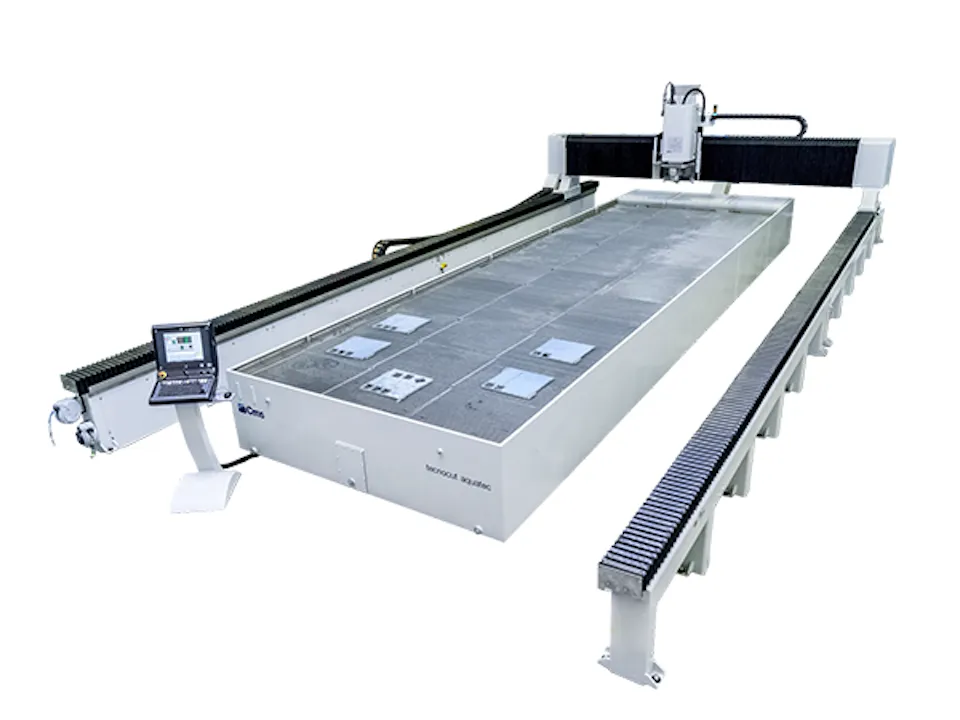

High flexibility to maximize the productivity
The modular structure of frame and catch tank offer high flexibility for most demanding customers looking for large format hevy duty cutting solutions.
CMS Aquatec
Aquatec is an advanced, versatile, high-performance abrasive waterjet cutting system, able to accommodate the most diverse production demands in different application fields, delivering highly accurate cuts. The machine consists of a mobile bridge moving along separate high-thickness steel supports fastened to the floor, providing outstanding structural rigidity.
The most compact solution on the market with infinite C-axis rotation saves up to 33% of the cycle time by eliminating the need to recover revolutions when aligning internal wires and tubes.
Technical data
| Model* | 2030 / 2040 / 6030 / Rapids / Accelerations |
|---|---|
| X Axis | 3800 mm / 149 in / 4020 mm / 158 in / 3000 mm / 118 in / 54 m/min / 2 m/s2 |
| Y Axis | 2650 mm / 104 in / 6650 mm / 262 in / 54 m/min / 2 m/s2 |
| Z Axis | 650 mm / 25 in / 12,6 m/min / 1 m/s2 |
| B Axis | ±60° / 17299 °/min / 1450 °/s2 |
| C Axis | infinite / 13400 °/min / 850 °/s2 |
| Workable area | 2000x300 mm / 78x118 in / 2000x4000 mm / 78x157 in / 6000x3000 mm / 236x118 in |
| Overall dimensions | 5886x4039 mm / 232x159 in without light barriers / 8195x6832 mm / 323x269 in without light barriers |
