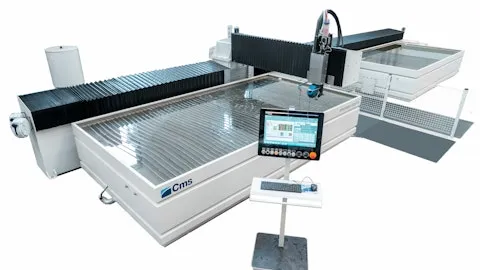

Easyline is a high-performance, versatile, modular water jet cutting system — either pure or hydroabrasive — for the most diverse production demands.
Benefits

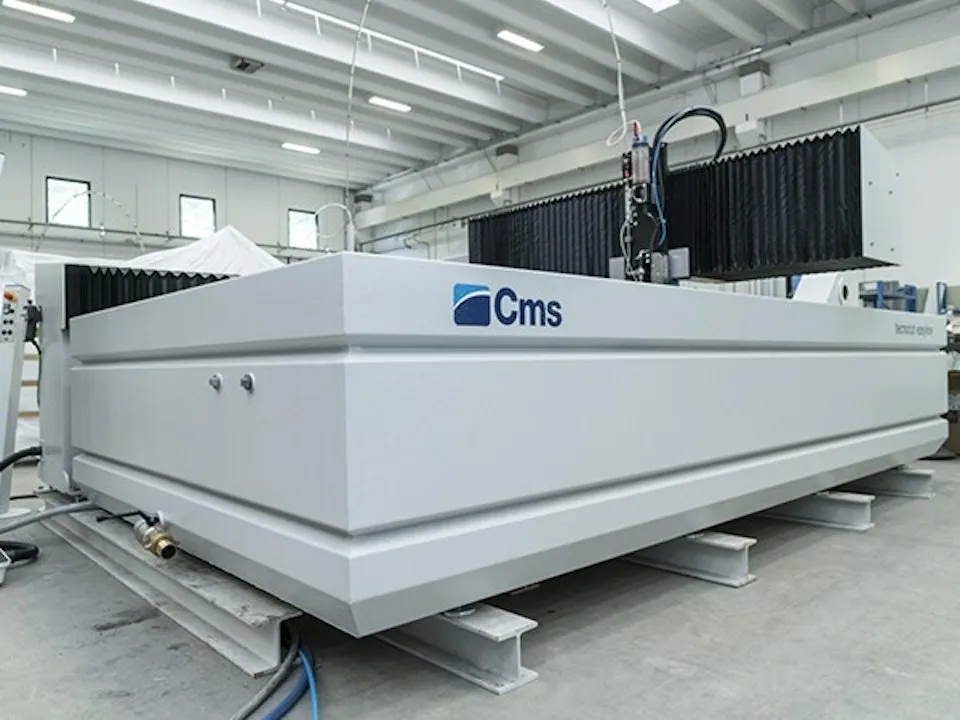

Easy operations: access of worktop from 3 sides
Excellent access to the cutting area, the cantylever structure with separate catch tank offers easy access on 3 sides to load and unload the material.

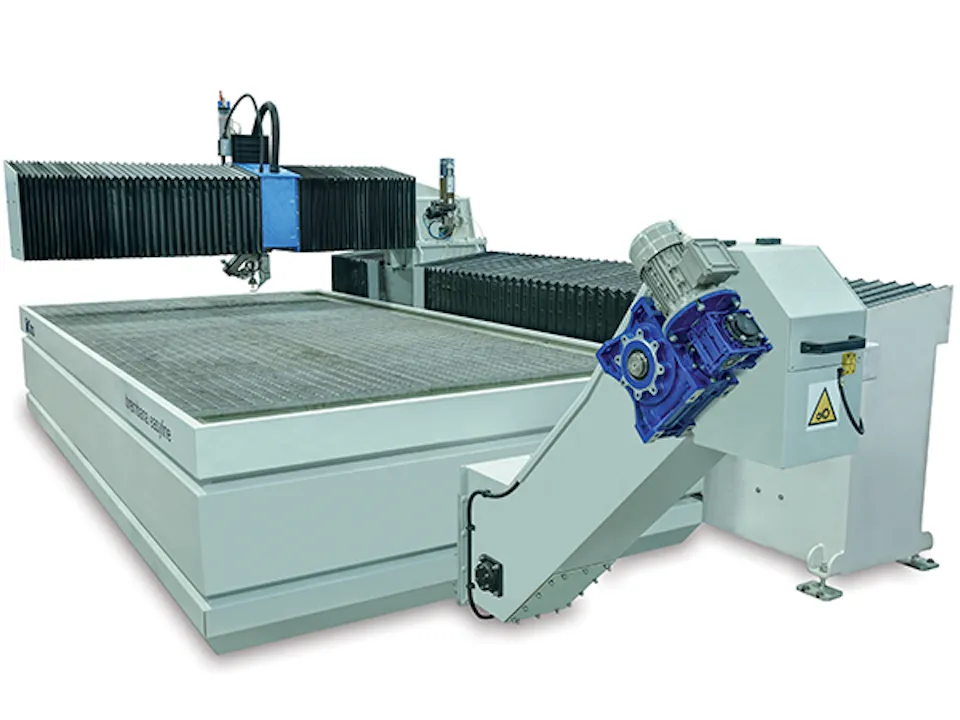

Easy maintenance: 91% less cost for exhausted abrasive removal
The catch tank with special anti-rust ceramic painting is designed to fit the new Evo4 chain dredge for exhausted abrasive removal even later after installation, with 91%* less maintenance costs.

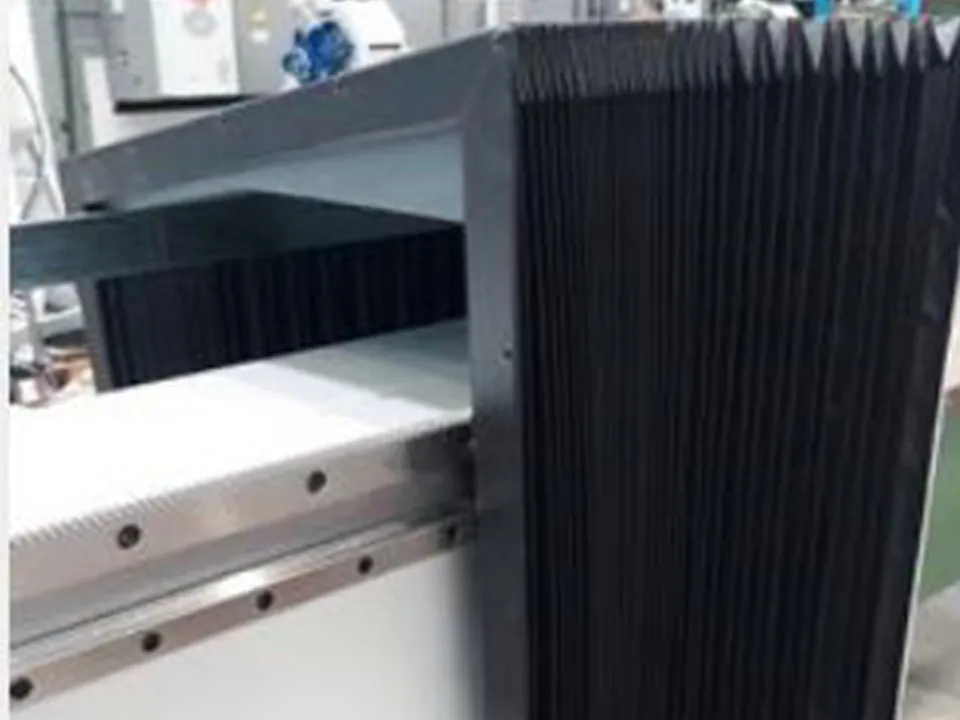

Easy sealing: safe protection from dust and water
The heat-sealed bellows provide complete protection of linear guides and racks from dust and water during the cutting, guaranteeing long lifetime without affecting the cutting quality.

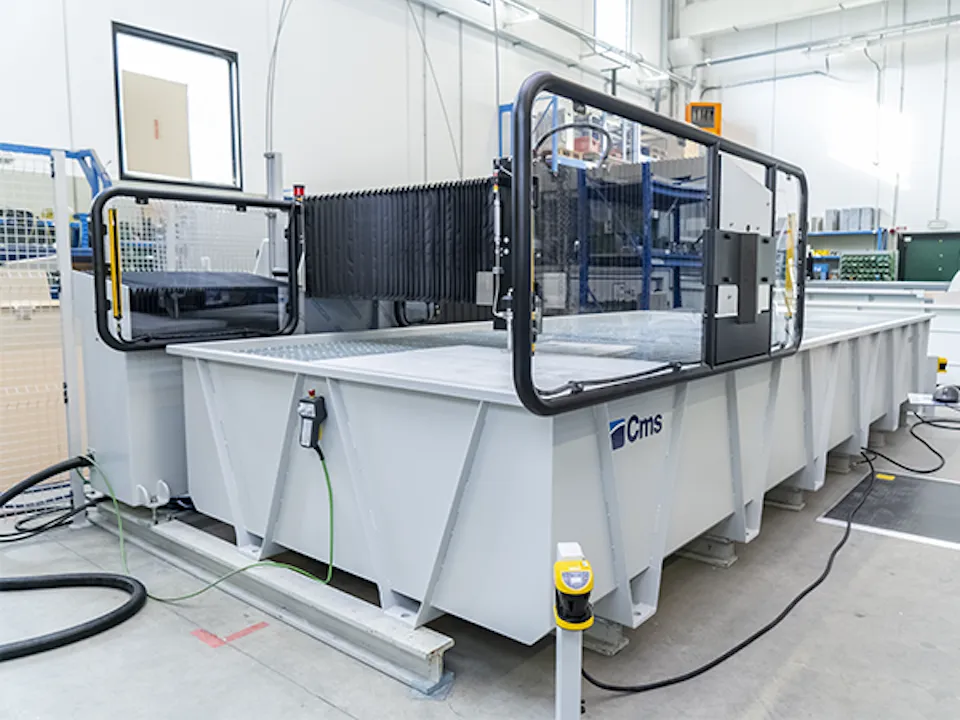

Up to 55% more productivity
The versatility of waterjet to cut a wide range of materials, with custom solutions to increase th productivity up to 55%, like single or double tank pendulum cycle or the multiple cutting heads configuration.
CMS Easyline

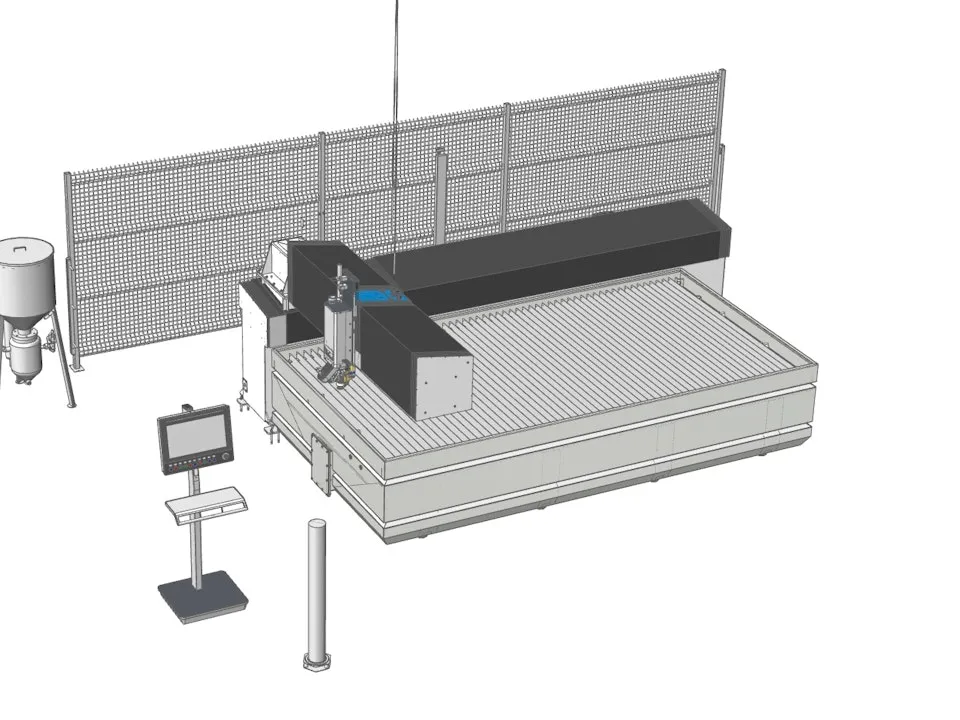

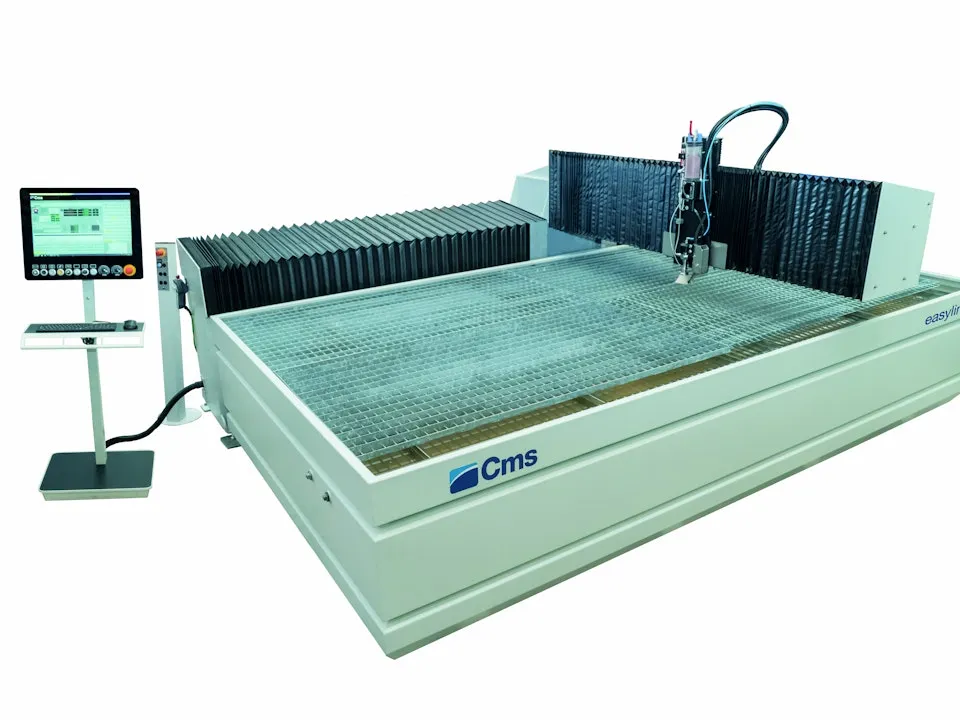

Easyline is a high-performance, versatile, modular water jet cutting system — either pure or hydroabrasive — which can be employed in a number of application fields for the most diverse production demands. The cantilever structure with separate catch tank offers excellent access on 3 sides to load and unload the material.
The heat-sealed bellows provide complete protection of linear guides and racks from dust and water during cutting, guaranteeing long lifetime without affecting cutting quality.
Technical data
| X Axis | 1000 mm / 39 in / 2000 mm / 79 in / 4000 mm / 157 in / 6000 mm / 236 in |
|---|---|
| Y Axis | 1000 mm / 39 in / 2000 mm / 79 in |
| Z Axis | 220 mm / 8.6 in (150 mm / 5.9 in with 5 axis head) |
| B Axis | ±60° |
| Support plane | 1210x1225 mm / 47x48 in / 2210x2225 mm / 87x87 in / 4210x2225 mm / 166x87 in / 6210x2225 mm / 244x87 in |
| Overall dimensions with Light Barriers | 4680x4174 mm / 184x164 in / 5680x5174 mm / 224x204 in / 5689x7208 mm / 224x284 in / 5680x9242 mm / 224x364 in |
