CMS Easypump delivers constant output pressure through two or three parallel, independent and electronically synchronized pressure multipliers, eliminating the need for an attenuator.
Benefits

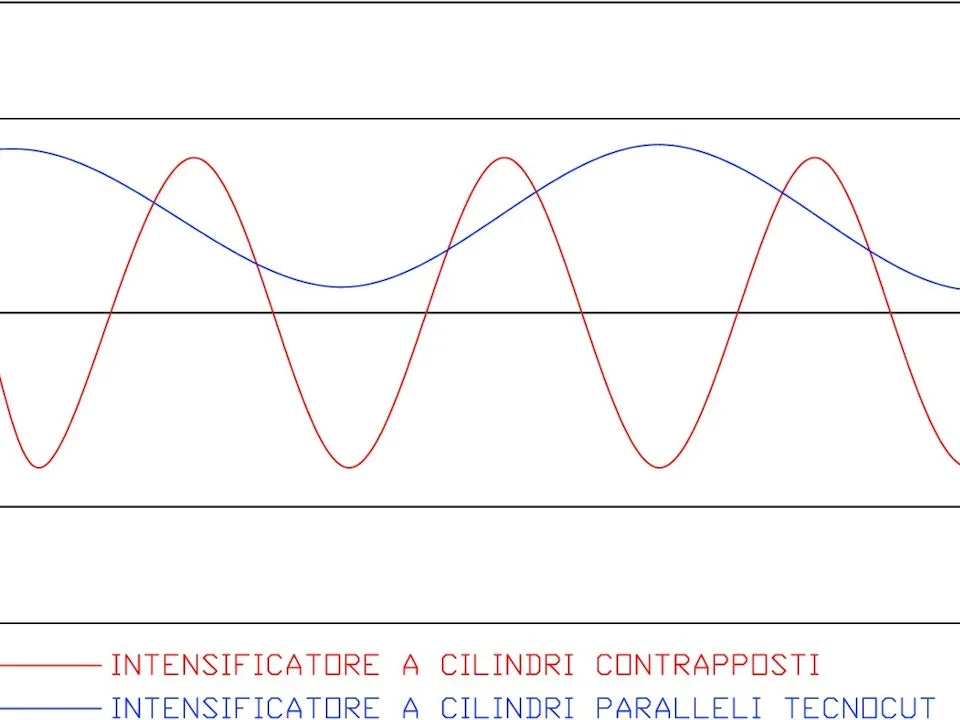

Constant output pressure for better cutting quality
Hydraulic intensifier with 2 or 3 independent and electronically syncronized parallel cylinders to guarantee a constant signal of output pressure without the use of attenuator.

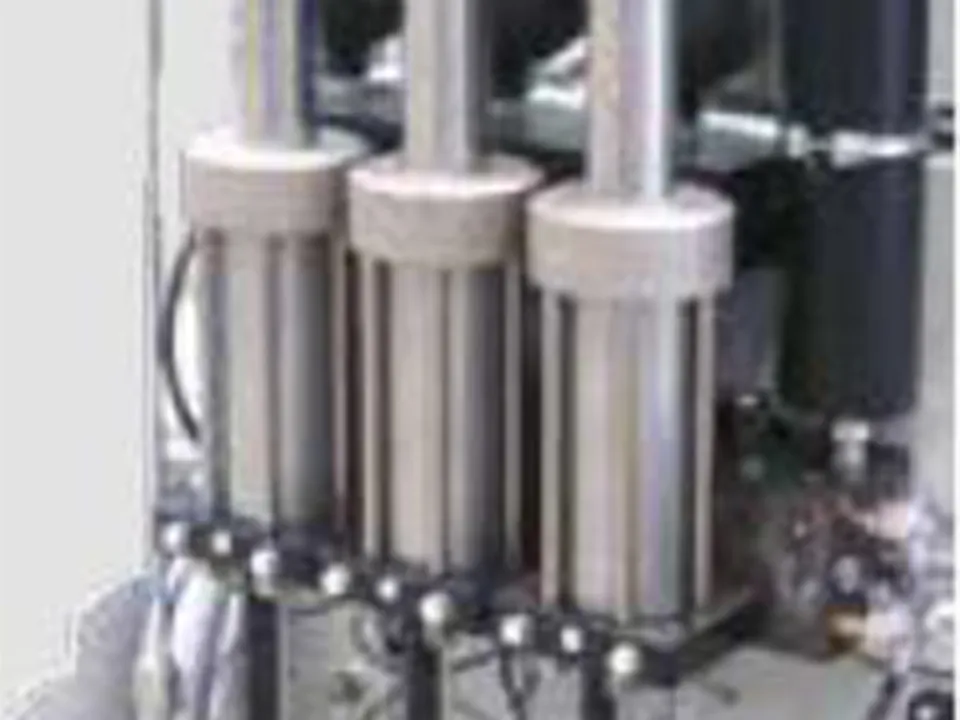

Redundant architecture: less machine downtime
The technology with 3 independent cylinders allows the bypass of a single cylinder that needs maintenance, while the machine is working, avoiding unnecessary downtime.

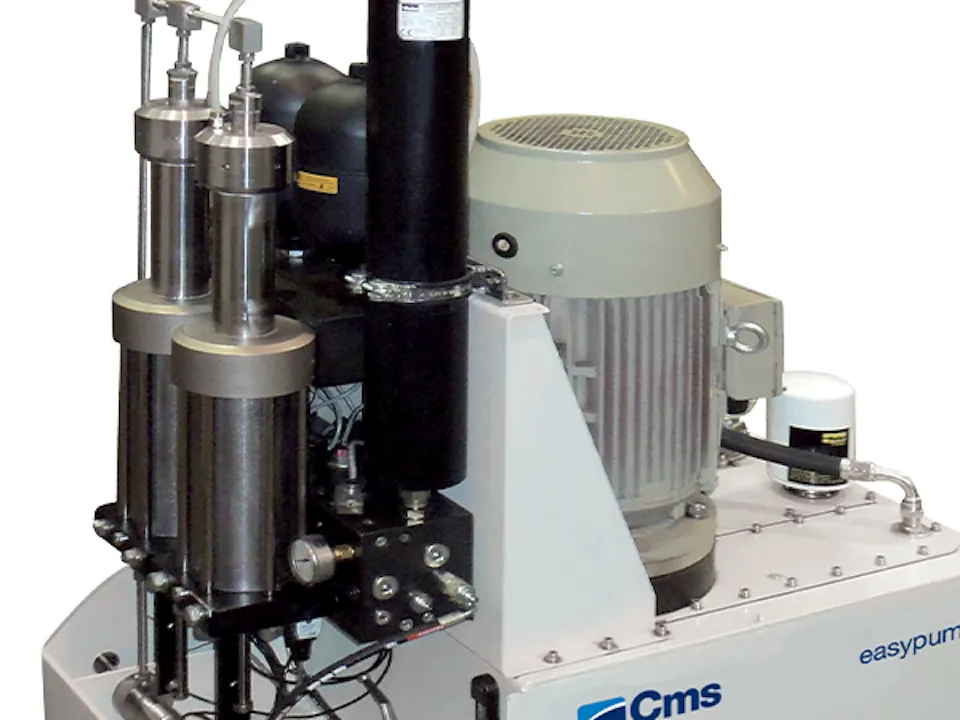

Less maintenance costs
The parallel cylinders architecture is designed for a low cycle frequency that reduce the high pressure components wear and consequently the maintenance costs.

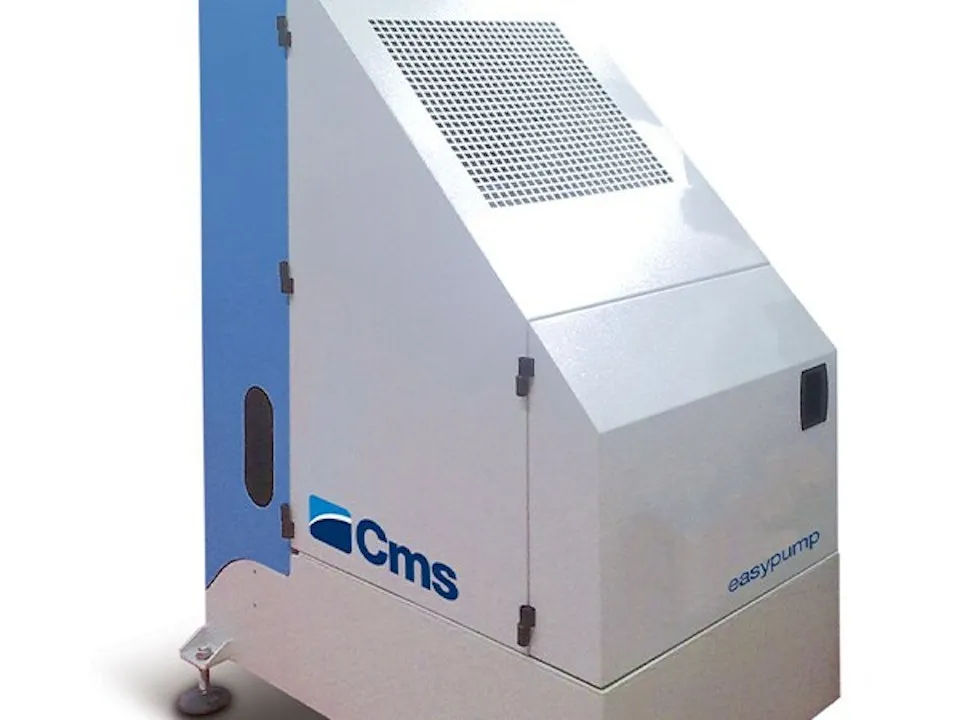

"noiseless" system for a quiet environment
Sealed cover with soundproof panels to guarantee high noise reduction while the intensifier is working.

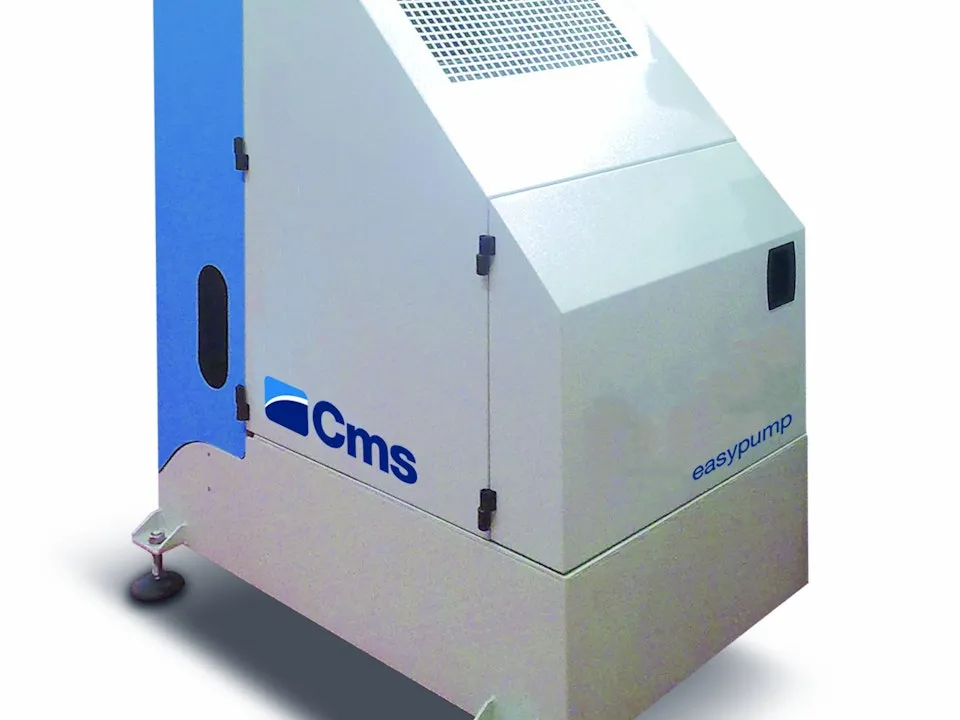

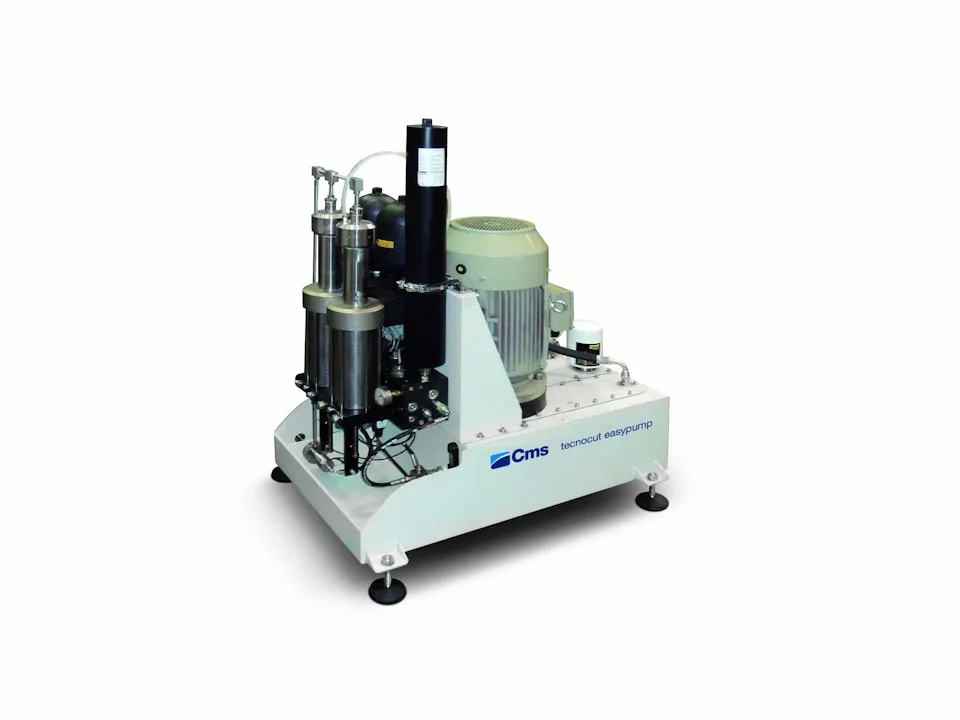

CMS Easypump

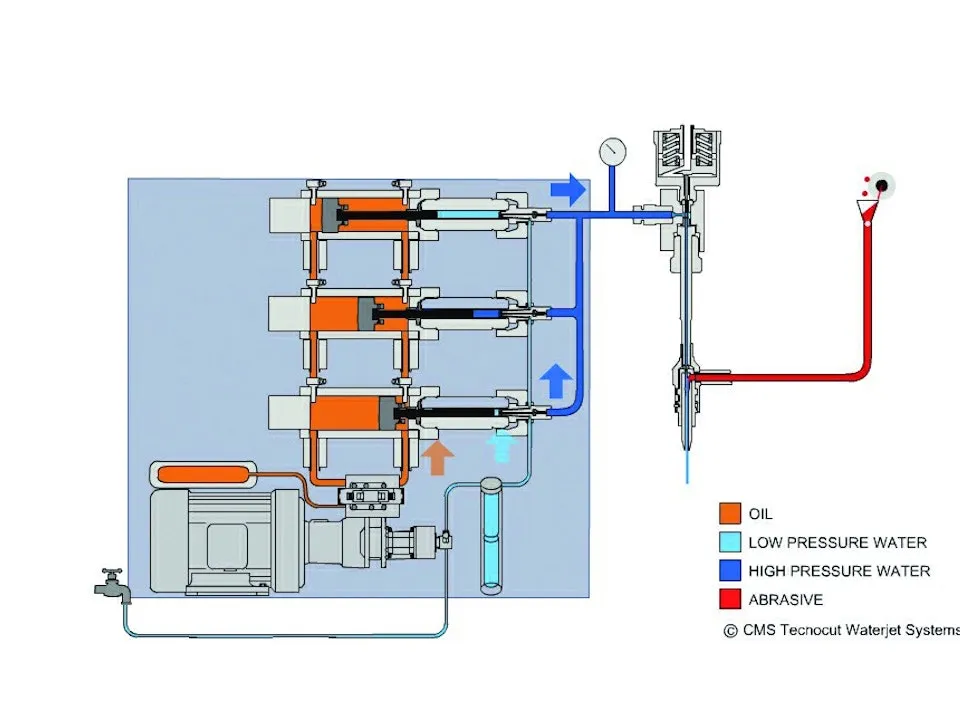

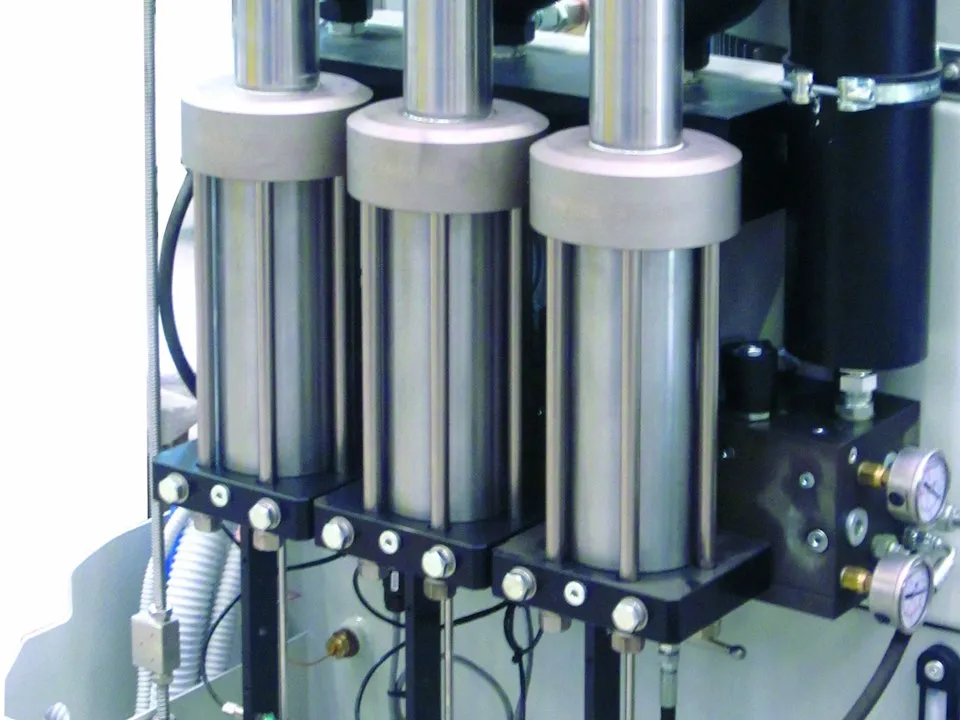

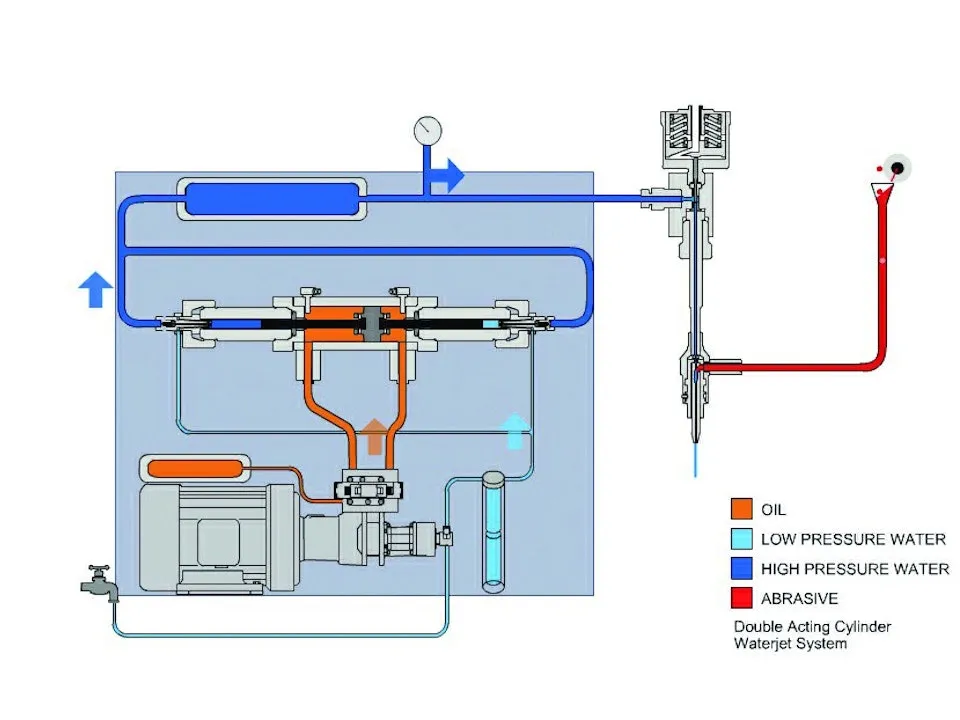

CMS has developed a new concept of high-pressure intensifiers: two or three parallel, independent and electronically synchronized pressure multipliers, which deliver a constant pressure while eliminating the need of an attenuator — a typical feature of old, traditional intensifiers.
The parallel-cylinder architecture is designed for a low cycle frequency that reduces wear on high-pressure components and consequently reduces maintenance costs. A sealed cover with soundproof panels guarantees high noise reduction during operation.
Technical data
| Power | 22,5 KW / 30 Hp |
|---|---|
| Cylinders | 2 |
| Max water pressure | 4150 bar / 60.000 psi |
| Max water flow rate | 2,3 lpm / 0.61 gpm |
| Max diam orifices | 0,25 lpm / 0,009 in |
| Voltage | 400V +/- 5% 50-60 Hz (Different voltages and frequencies on request) |
