Jetpower Evo brings a new concept to ultrahigh-pressure intensifiers using independent, parallel and electronically synchronized multipliers to deliver constant pressure without drops.
Benefits

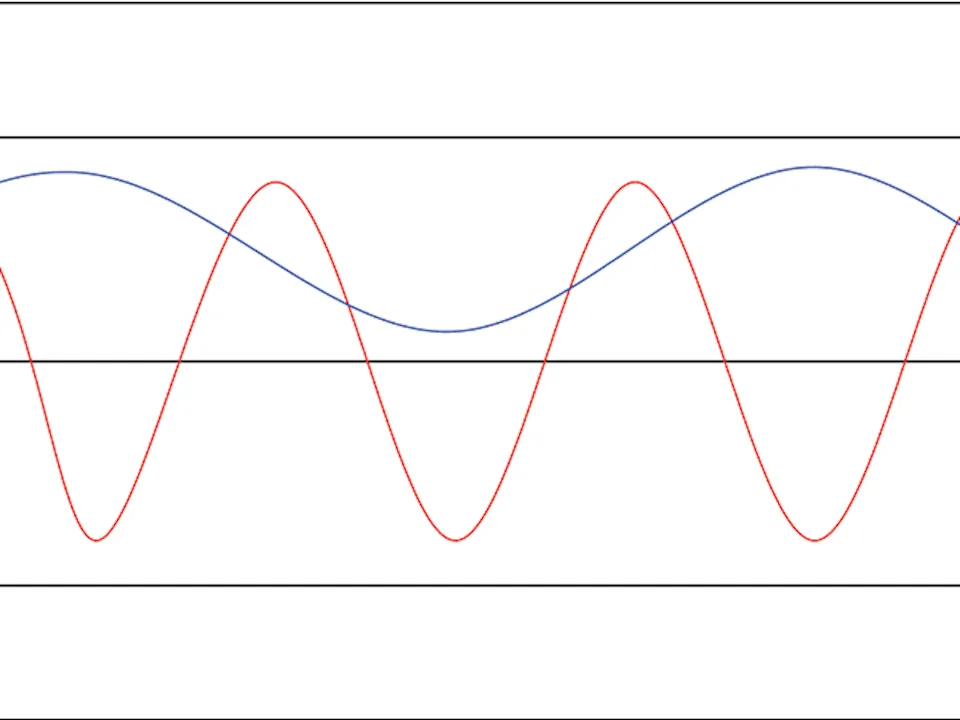

Constant output pressure for better cutting quality
Hydraulic intensifier with 2 or 3 independent and electronically syncronized parallel cylinders to guarantee a constant signal of output pressure without the use of attenuator.

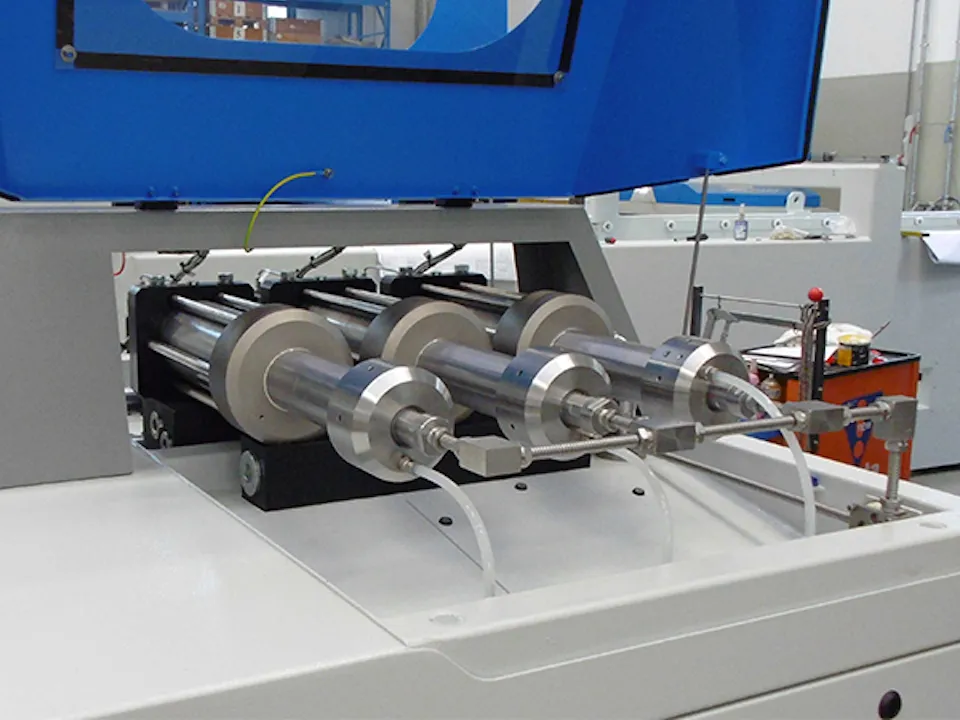

Redundant architecture: less machine downtime
The technology with 3 independent cylinders allows the bypass of a single cylinder that needs maintenance, while the machine is working, avoiding unnecessary downtime.

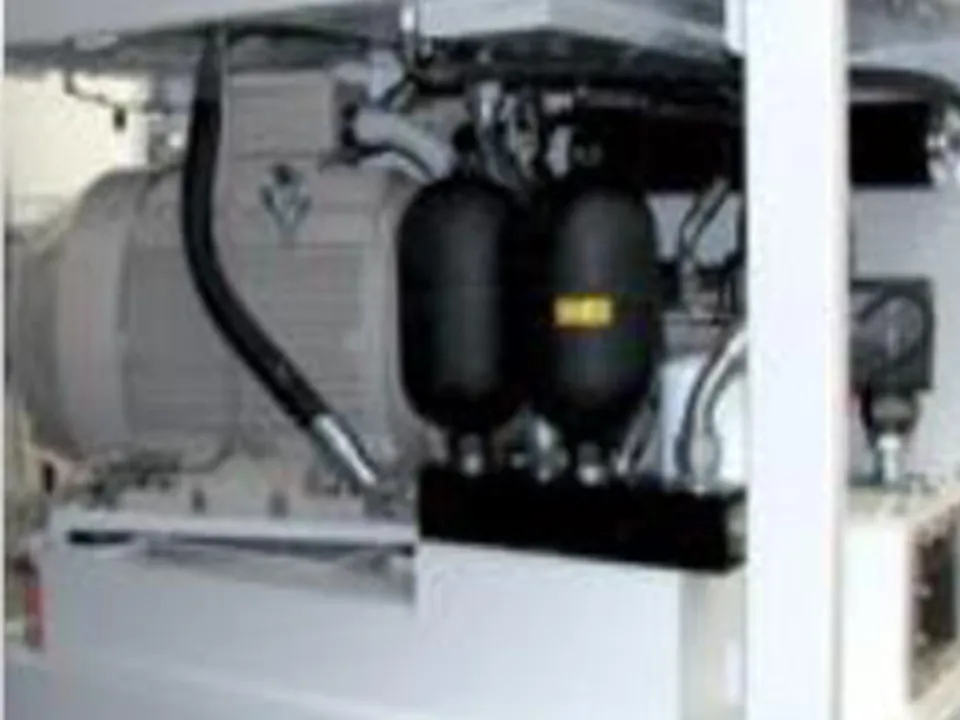

Less maintenance costs
The parallel cylinders architecture is designed for a low cycle frequency that reduce the high pressure components wear and consequently the maintenance costs.
Reduction of oil consumption and operating costs

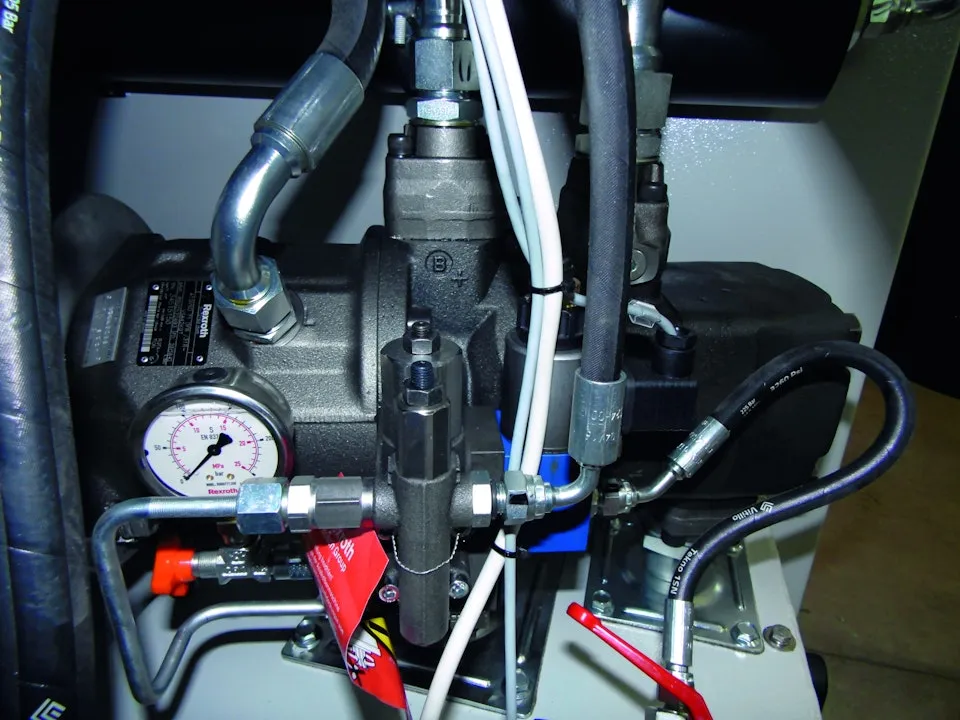

Water flow rate up to 5 l/min to satisfy a wide range of cutting applications, adapting the oil consumption thanks to an independent variable flow pump for hydraulic circuit.

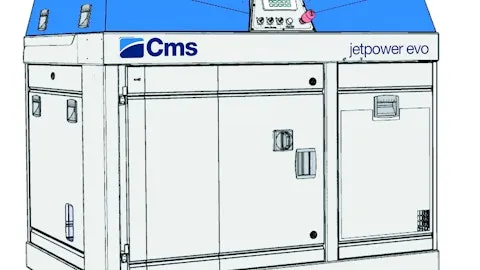

CMS Jetpower Evo

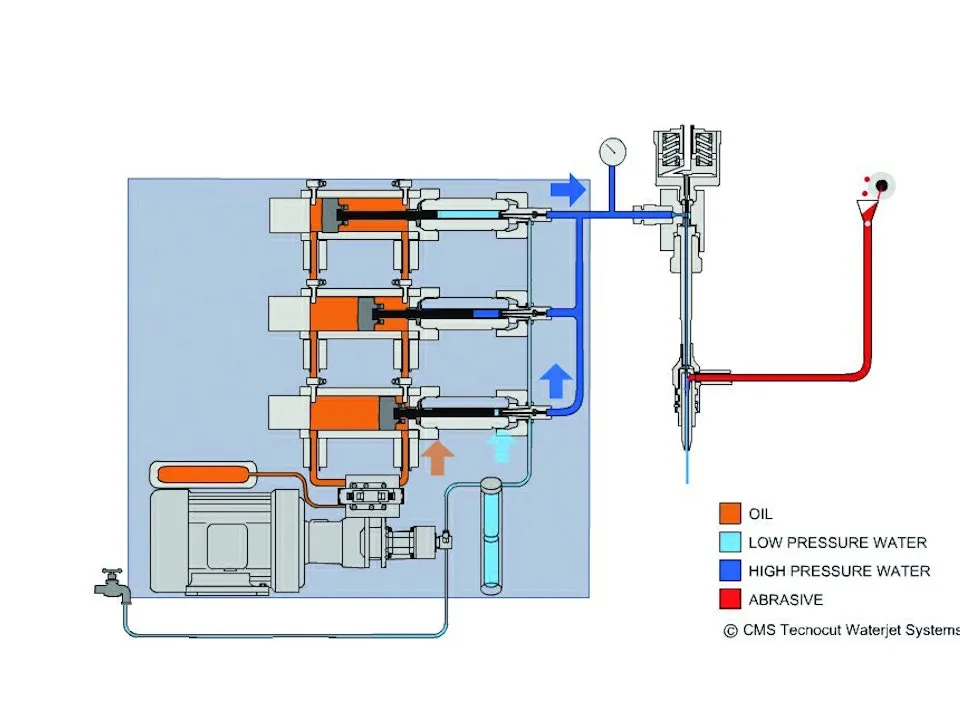

CMS Jetpower Evo brings a new concept to ultrahigh-pressure intensifiers, enhanced by technological solutions designed to satisfy the needs of the most demanding users. This innovative system uses independent, parallel and electronically synchronized pressure multipliers, delivering an ever-constant pressure and avoiding the drops typical of traditional opposed-cylinder intensifiers.
Water flow rate up to 5 l/min satisfies a wide range of cutting applications, while the independent variable flow pump for the hydraulic circuit adapts oil consumption to actual working conditions.
Technical data
| Power | 30 kW / 40 HP / 45 kW / 60 HP |
|---|---|
| Multipliers | 2 / 3 |
| Max water pressure | 4150 bar / 60.000 psi |
| Max water flow rate | 2,7 lpm / 0,71 gpm / 5 lpm / 1,32 gpm |
| Max diam orifices | 0,30 mm / 0,012 in / 0,40 mm / 0,016 in |
| Voltage | 400V +/- 5% 50-60 Hz (Diverse tensioni e frequenze a richiesta)(Different voltages and frequencies on request) |
