Runner is a tilting cutting table with three interpolated axes for straight and shaped cutting of flat glass plates with thickness ranging from 2 to 25 mm.
Benefits

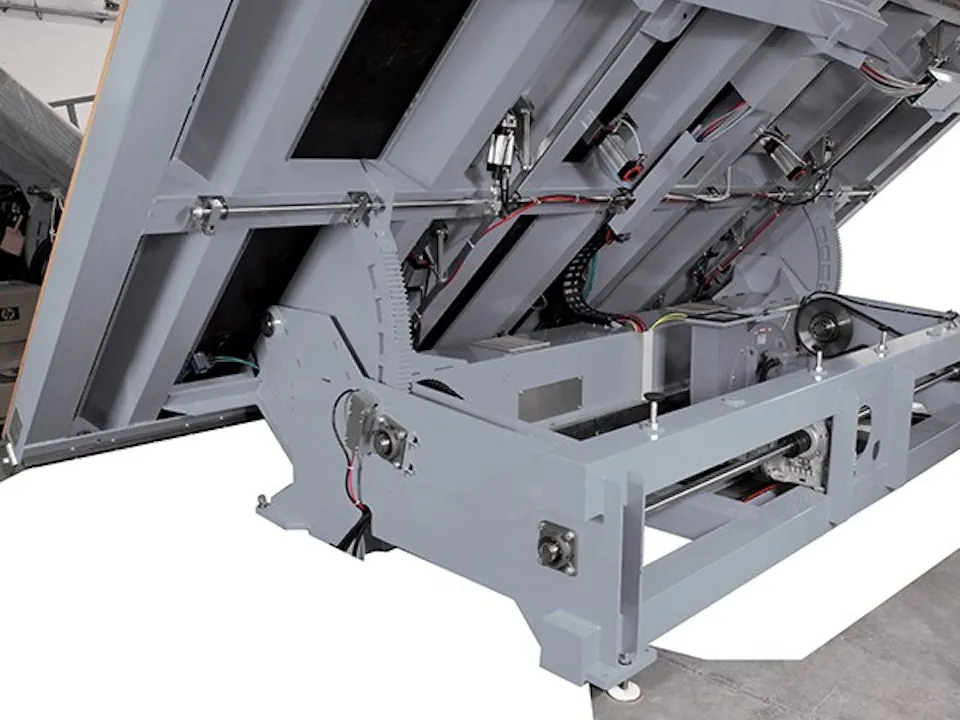

Fastest tilting table
The system for the overturning of type mechanical, with chain transmission, allows tipping times of less than 20 seconds. Unlike hydraulic systems, maintenance is zeroed.

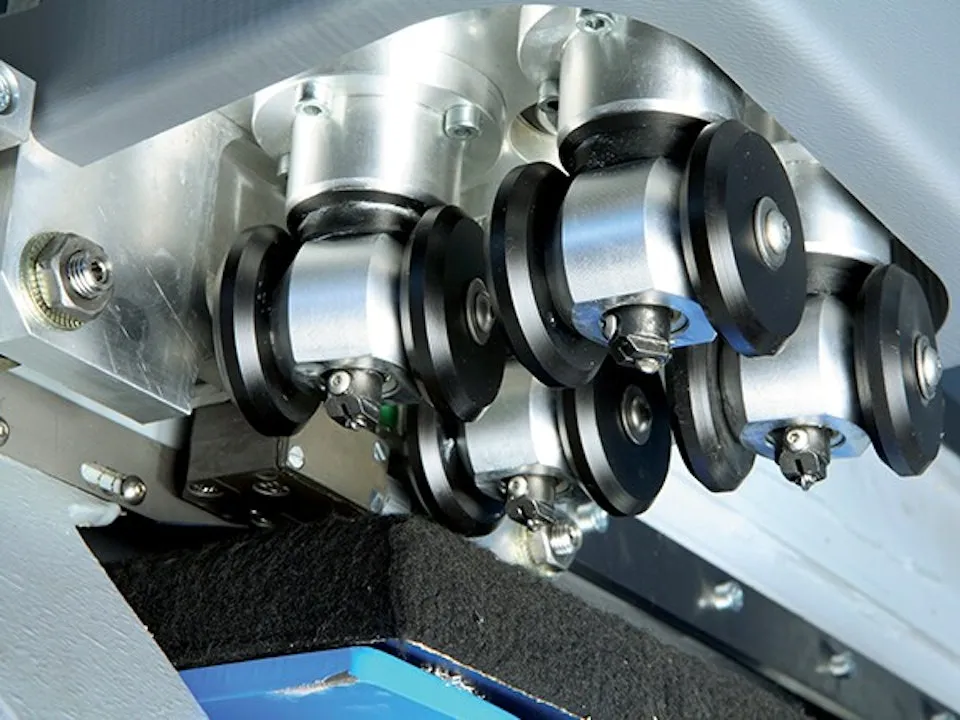

No setting time
Thanks to the patented four-head system for automatic management of cutting of different thicknesses, no manual operation is required. Each head carries a wheel that is specific for its thickness, guaranteeing zero stop times when changing the sheet.

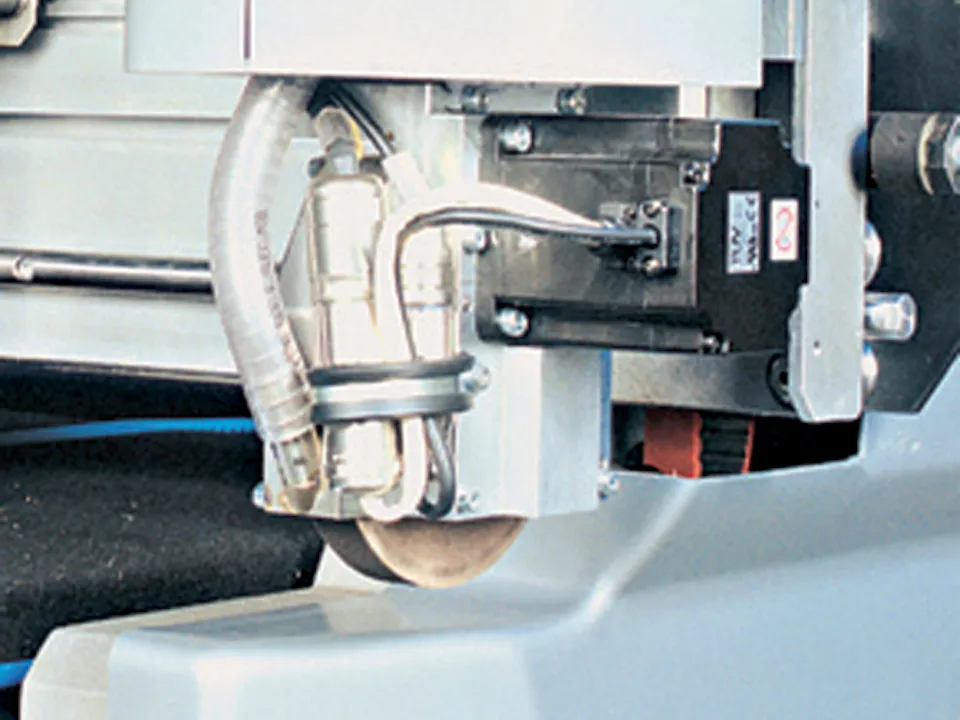

Complete removal of the low-e
The peripheral grinding wheel eliminates the low emissivity layer with speeds up to 80 m / min. The device is suitable for intensive use to work continuously with all types of Low-E.

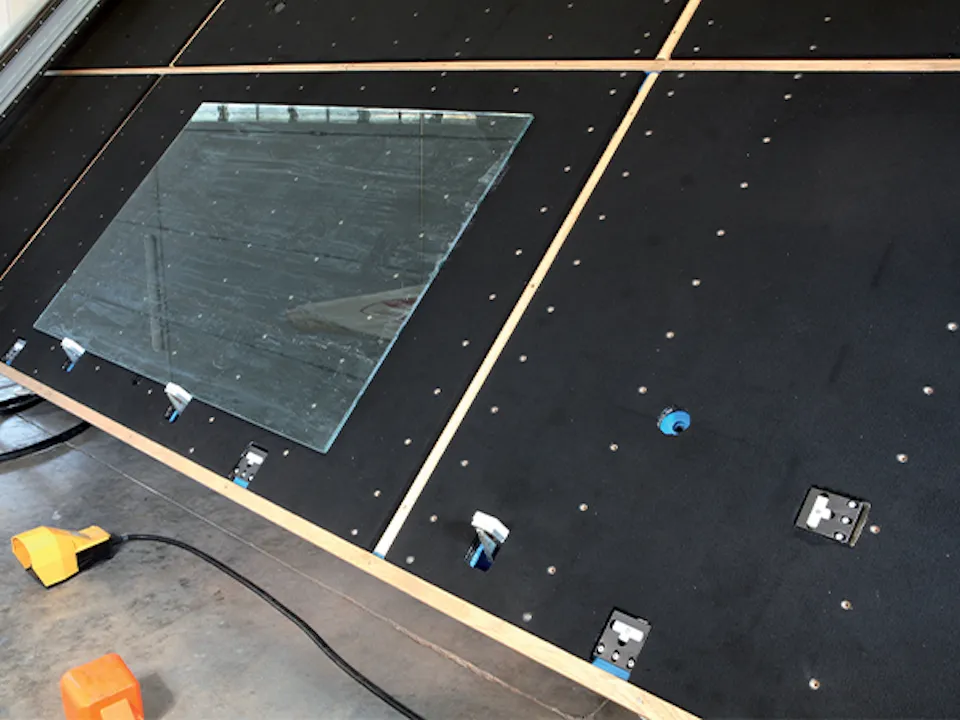

Two machines in one
The double zero function allows the management of the laminated glass cutting. The software generates two mirror programs, the glass is zeroed on two opposite stops with accuracies lower than 2 tenths of a millimeter.
CMS Runner

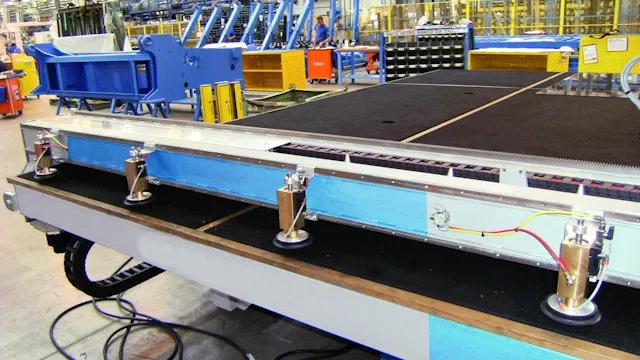

Runner is a tilting cutting table with three interpolated axes for straight and shaped cutting of flat glass plates with thickness ranging from 2 to 25 mm. Electrical and electronic equipment are completely integrated in the machine’s basement, saving floor space and assuring easy diagnostic.
The mechanical motorized tilting system makes it easy to load and unload glass sheets in small spaces and guarantees a long machine life with absolute reduction of maintenance. A high-pressure turbine generates an air cushion simplifying the handling of glass sheets.
Technical data
| Axex maximum stroke X-Y-C* | 4400 mm - 2600 mm - 360° / 6900 mm - 3350 mm - 360° |
|---|---|
| Useful working area | 4250 mm - 2560mm / 6790 mm - 3310mm |
| Workable Thickness | 3 - 25 mm |
| Accuracy and Repeatibility | ± 0,20mm |
| Maximum speed and acceleration | 160 m/min - 5 m/s2 |
| Weight | 3500 kg / 5100 kg |
