3-4 interpolated axes machining center
Benefits

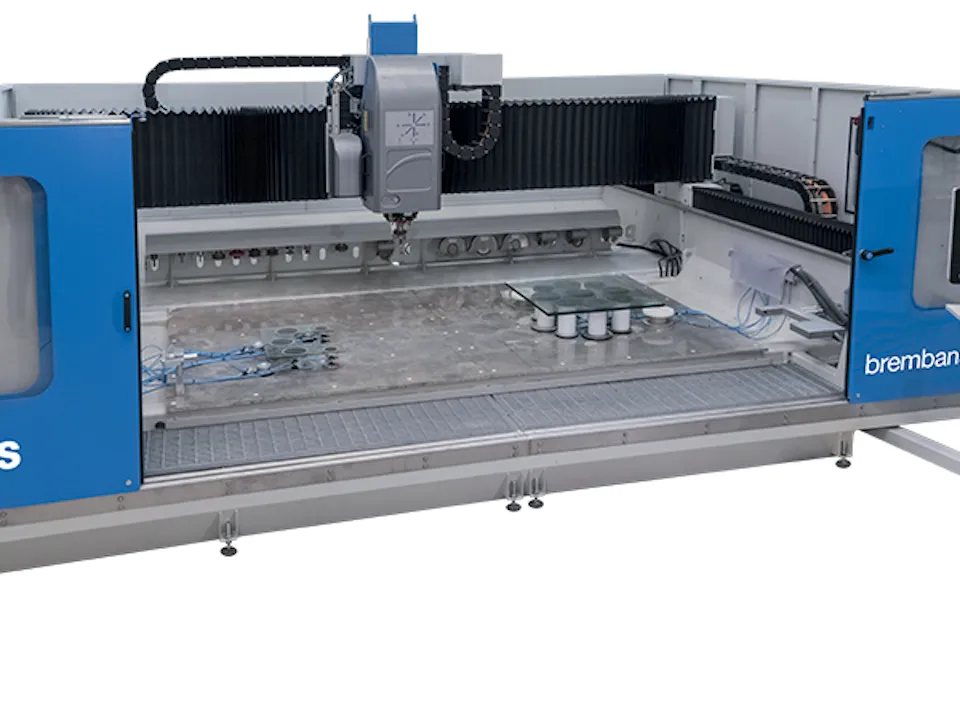

Comfortable loading
Thanks to the automatic doors the machine can be loaded and downloaded automatic from an automatic charger, while ensuring the total occupational safety for the operator.

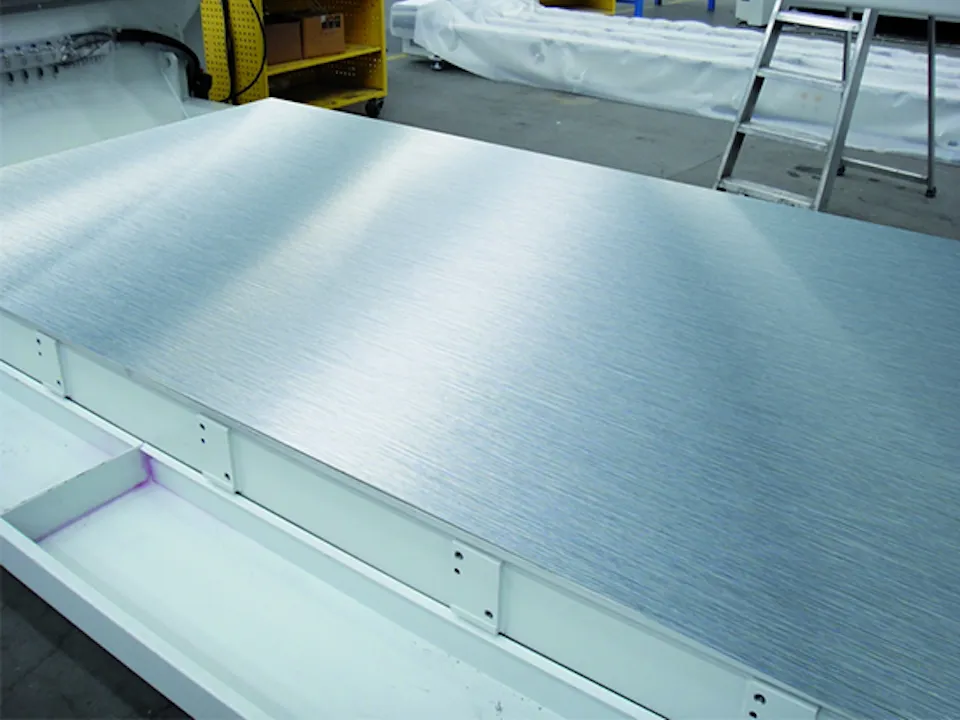

Solid aluminum worktop
Duralumin worktop 18 mm thick, for greater stability and durability. The table allows being adjusted more than 10 times.

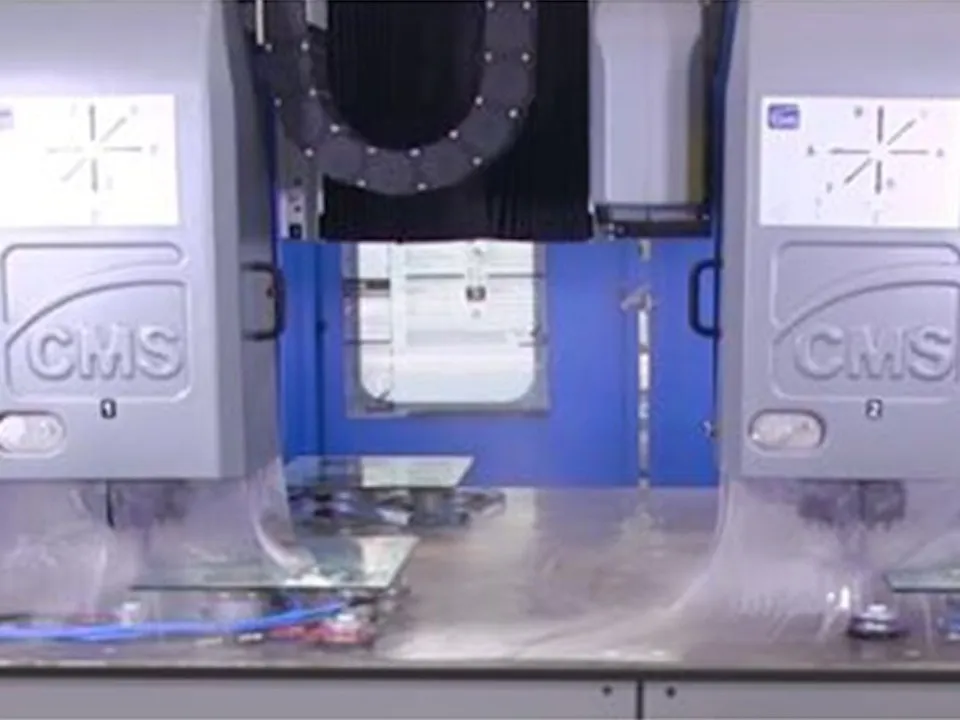

Double productivity
In the Twin version, thanks to the independent double head, productivity increases by up to 53%. Speed Twin, the only machine with two heads and 4 axes on the market, allows simultaneous drilling on identical pieces.

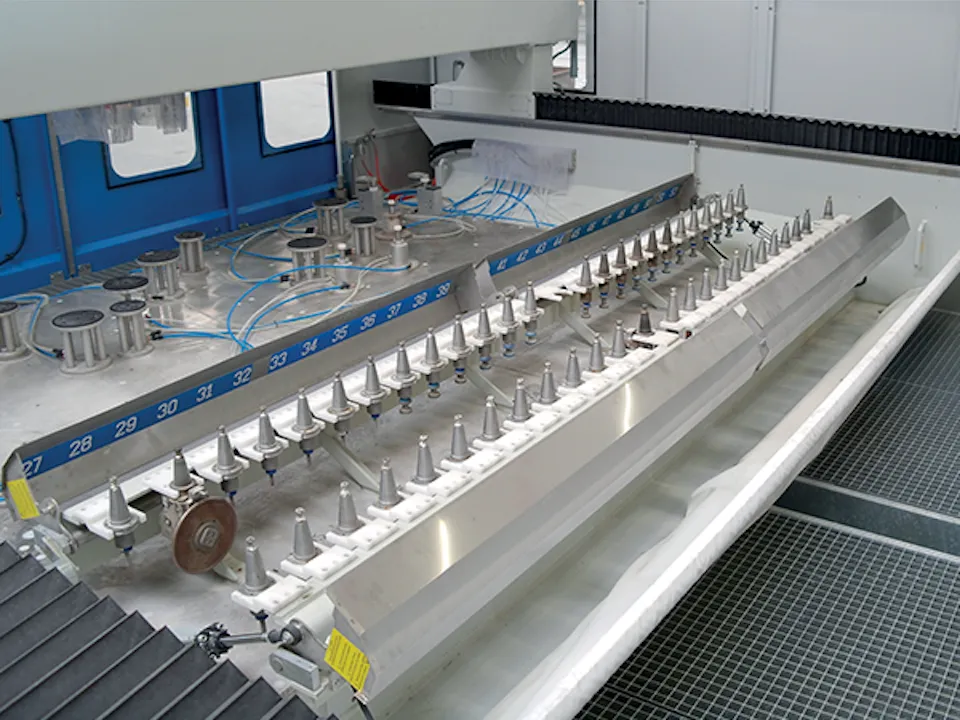

Limitless tools rack
The wide modularity of the tools rack allows to adapt the table to each need. The magazines can be installed rear, side or also under the beam for a tool change in less than 10 seconds.
CMS Speed
3-4 axes (on request) Numerically Controlled machining center for the processing of thin and thick flat glass sheets for both laminated and bullet-proof glass. It carries out any type of grinding, polishing, drilling, milling, cutting with disk, engraving, writing and 5° beveling operations.
Technical data
| X axis stroke | 3800 mm |
|---|---|
| Y axis stroke | 2610 ÷ 7200 mm |
| Z axis stroke | 520 mm |
| Maximum xy working dimensions | It changes according to the configuration |
| Rotating axis (optional) | 360° Stepless |
| Power (s1 / s6) | 13,5 KW / 21 KW / 30 KW / 36 KW |
| Revolution | 0 ÷ 15000 rpm / 0 ÷ 12000 rpm |
| Overall dimensions | A B H / 4980 ÷ 9260 mm 7260 mm in open doors 2800 mm |
| Electrical cabinet | Integrated in the base |
| Weight | 7000 ÷ 15000 Kg |
