Taktika is the compact vertical machining center developed by CMS to achieve the greatest flexibility in small spaces, ideal for small and medium-sized glass factories.
Benefits
Everything under control
EVERYTHING UNDER CONTROL CMS experts have created SCADA (Supervisory Control and Data Acquisition) software to supervise and monitor all the main machine components through specific synoptic views.
Gentle firmness

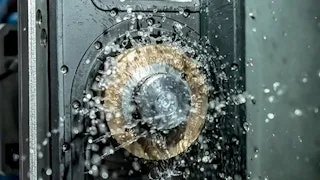

GENTLE FIRMNESS Each of the two operating units in Taktika is equipped with a water film presser, specially developed by CMS to guide the glass during machining. The presser holds the glass still for high quality machining, while a thin layer of water is interposed between the glass and the presser to ensure that the glass is supported gently and firmly without scratching.
Uncompromising clamping and efficiency
Focus on the essential, taktika will take care of the rest!
FOCUS ON THE ESSENTIAL, TAKTIKA WILL TAKE CARE OF THE REST! Taktika is equipped with a fully automated truing system for grinding wheels and core drill bits. The software can be set to true the grinding wheels and core drill bits after a specific number of meters machined/holes drilled. Taktika continuously monitors tool wear and automatically chooses the right time to start the truing cycle.
CMS Taktika

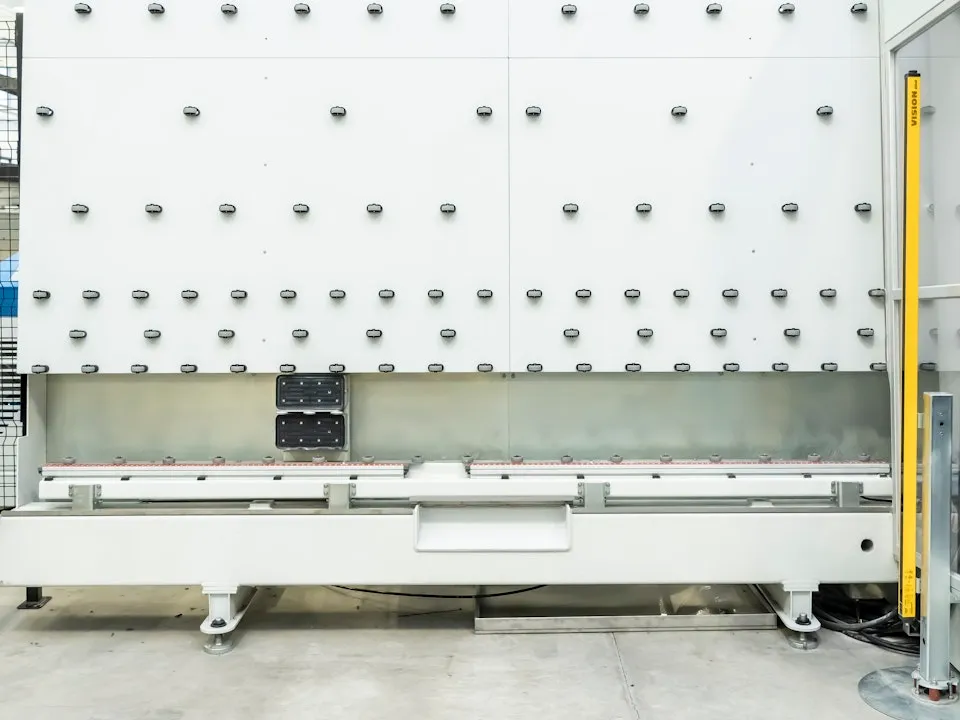

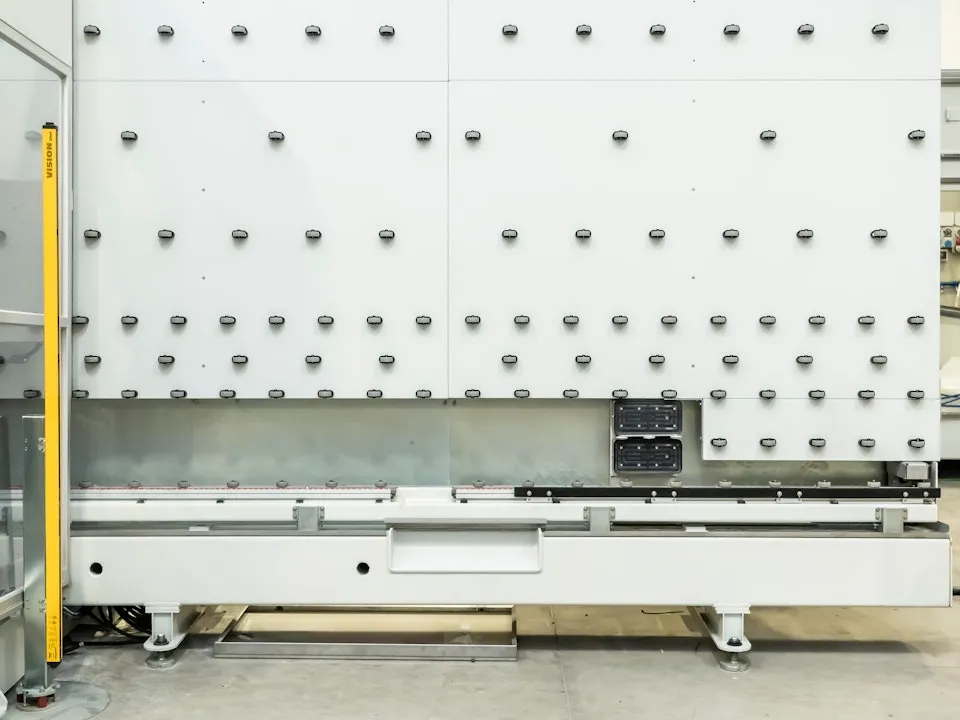

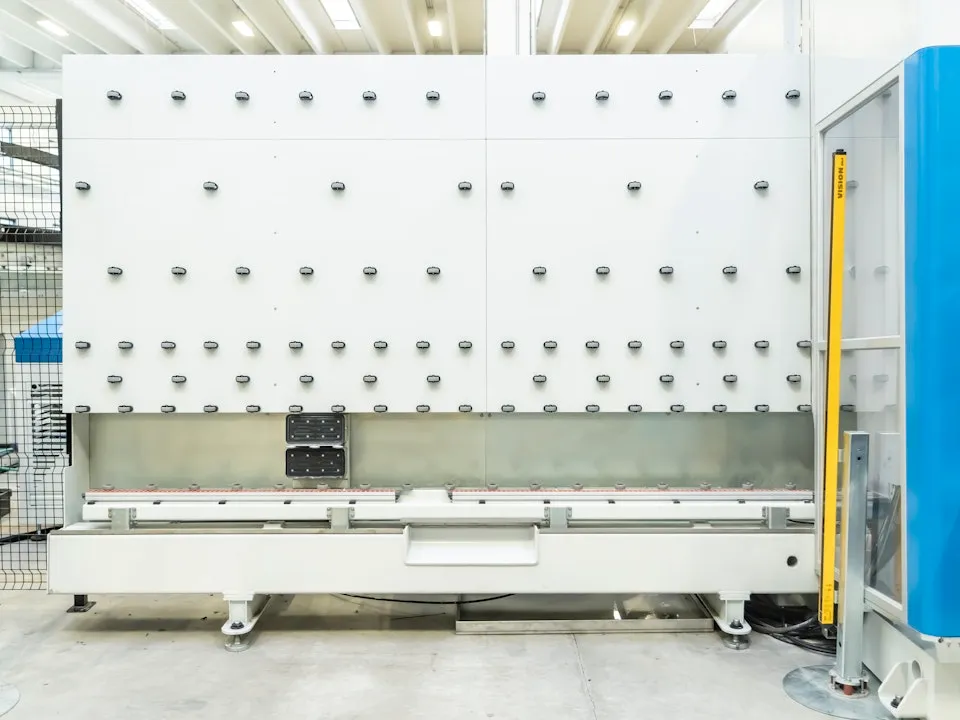

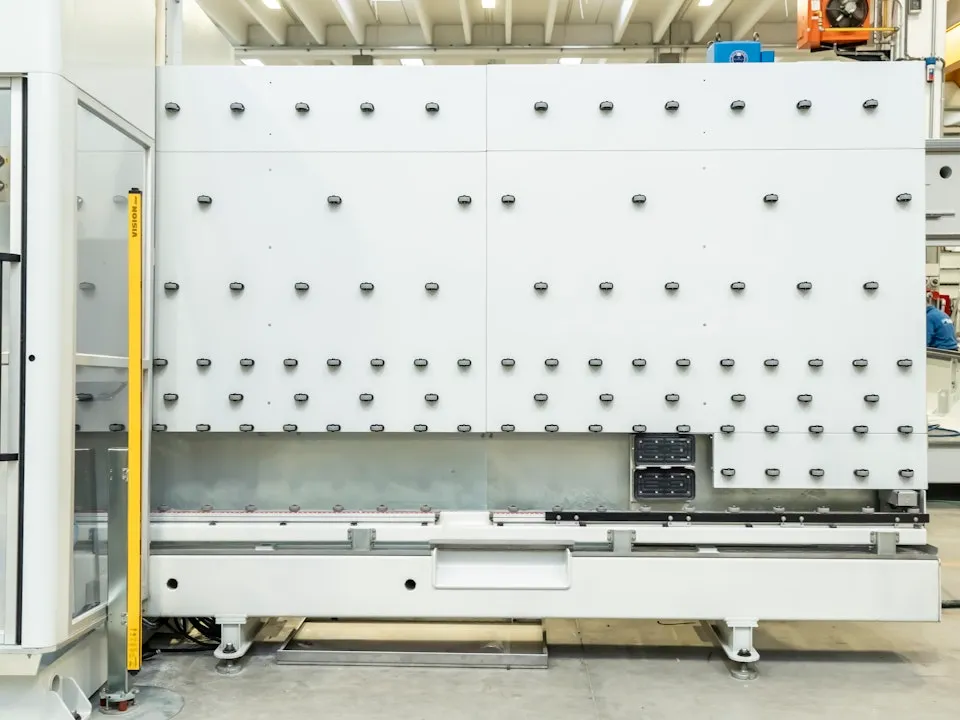

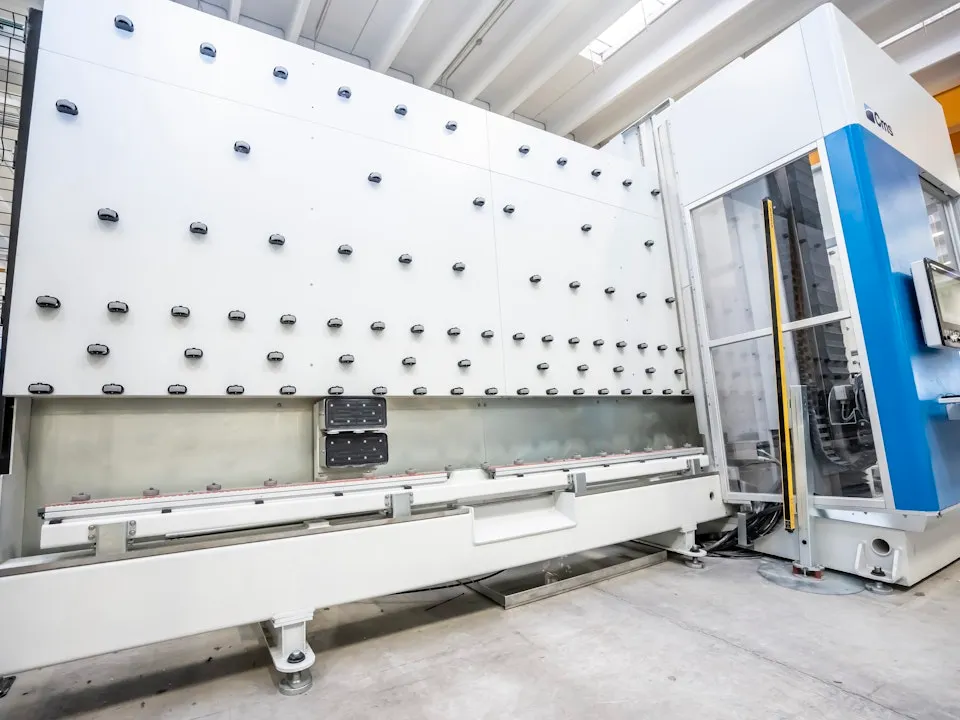

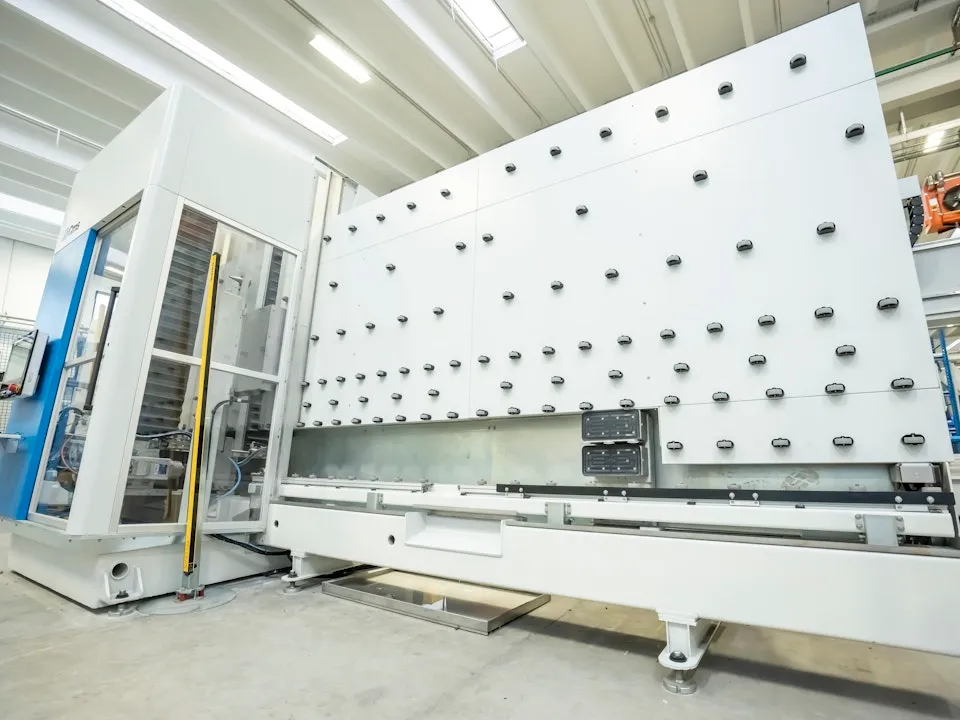

Taktika is the compact vertical machining center developed by CMS to achieve the greatest flexibility in small spaces. The project has been conceived for small and medium-sized glass factories that need to increase their efficiency and is also ideal for larger companies requiring flexibility to manage small batches of glass.

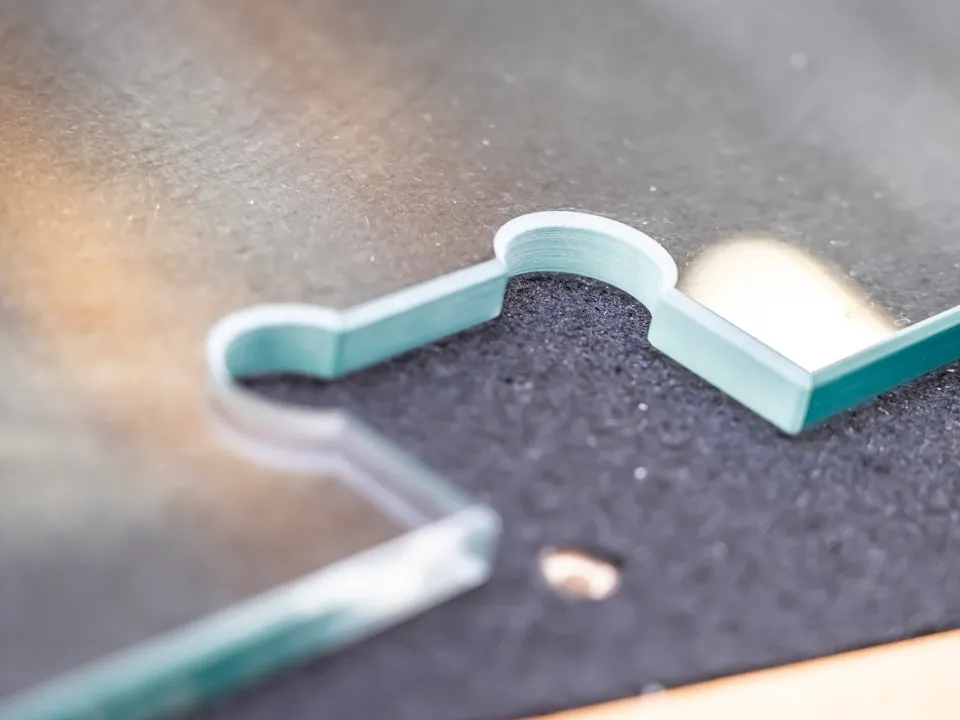

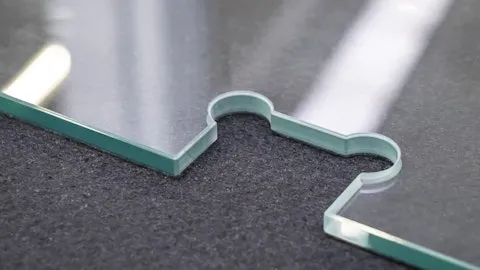

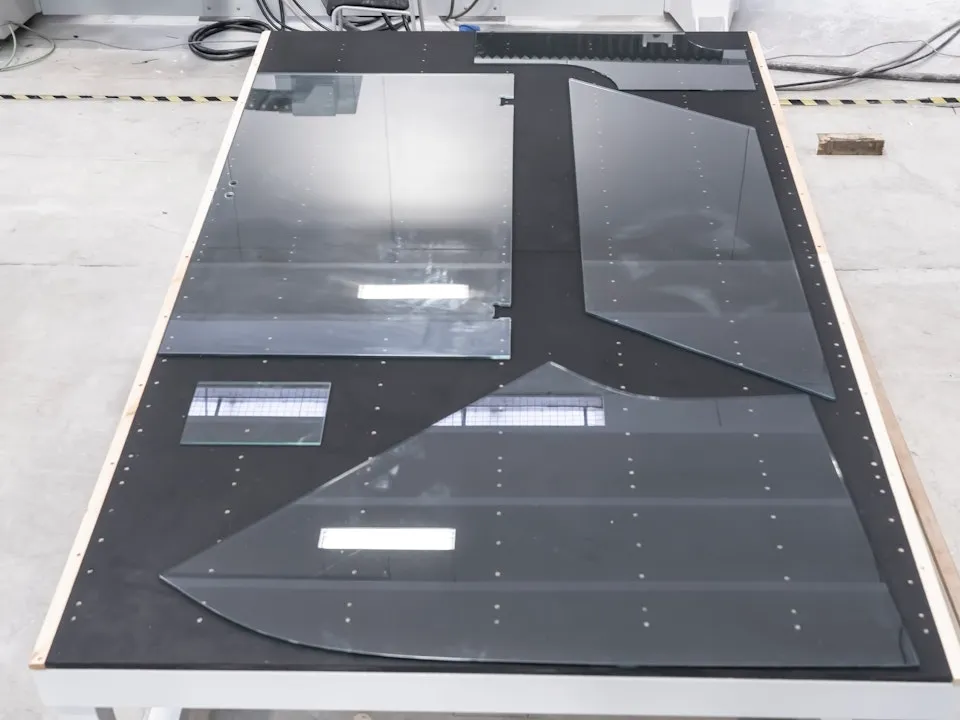

Taktika comes with the new CMS Active software designed to make the user interface more efficient and user-friendly than ever. Taktika can perform seaming, grinding and polishing, milling, drilling and countersinking. It can be used as a stand-alone machine or in line with a vertical washing machine to wash the glass immediately after processing.
Technical data
| Maximum workpiece dimensions | 3100 x 2000 x 15 mm | 122 x 79 x 0,6 in |
|---|---|
| Maximum through-hole height | 2500 mm | 98 in |
| Minimum workpiece dimensions | 320 x 220 x 4 mm | 12,5 x 8,5 x 0,15 in |
| TOOL CHANGE STATIONS (front + rear) | 12 + 12 |
| Maximum grinding wheel diameter | 100 mm | 4 in |
| Maximum core drill bit diameter | 50 mm | 2 in |
| Electrospindle power | 6 kW | 8 HP front head |
| Maximum spindle speed | 12.000 rpm |
| Tool clamping | ISO 40 |
| Weight | 7.000 kg | 12.125 lb |
| Overall dimensions | 10.050 x 3270 x 3480 mm | 396 x 129 x 137 in |
