Ypsos is the newest vertical machining center developed by CMS, ideal to process float and laminated glass sheets — the first and only vertical CNC capable of grinding and polishing with two heads at the same time.
Benefits

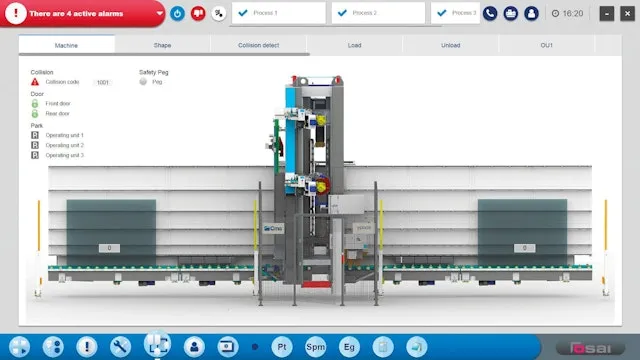

Software and user interface: using a nc has never been so straightforward!
The new software has been designed to maximize the numerical control and user interface efficiency. CMS experts have created a SCADA (Supervisory Control And Data Acquisition) software that allows to monitor and supervise all the main components of the machine thanks to specific overviews.

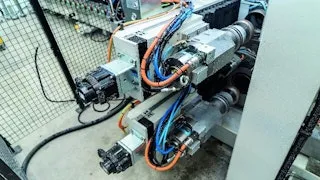

How to get the most out of a polished grinding?
Ypsos can be equipped with a second spindle, able to perform arising and coarse or polished edge grinding operations. The second head allows the automatic tool change in presence of at least one rotary magazine.

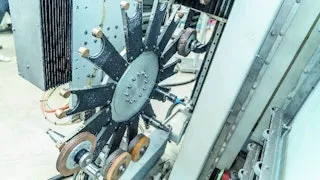

A tool for every operation
Up to two rotary magazines can be installed to house the ISO40 tool-holding cones. Each magazine features 13 positions, and each cone can house up to 50mm of tool thickness. Additionally, multi-profile tools are allowed, such as milling machines and combined profiles.
Focus on what’s essential - ypsos will do the rest!
Ypsos can be equipped with a fully automated grinding wheel and core bit truing system. Thanks to the machine software, it is possible to set after how many processed material meters/holes the grinding wheels and core bits must undergo truing. Ypsos continuously monitors the tool wear state, and automatically chooses the right moment to start the truing process.
CMS Ypsos
Ypsos is the newest vertical machining center developed by CMS, ideal to process float and laminated glass sheets, entirely designed drawing on many decades of experience in the glass industry. This is the first and only vertical CNC machining center capable of grinding and polishing with two heads at the same time.
Available in 3 standard sizes, it allows the processing of small and large-sized parts up to 6,000 × 3,300 mm max. Ypsos can be used as a stand-alone machine, in line with a drilling-milling machine or inside an insulating line.
Technical data
| Sheet maximum length | 3.200 (126) - 4.500 (177) - 6.000 ( 236) mm (in) |
|---|---|
| Sheet maximum height | 2.200 (86) - 2.800 ( 110) - 3.300 (130) mm (in) |
| Sheet minimum lenght | 420 (16.5) mm (in) |
| Sheet minimum height | 270 (10.6) mm (in) |
| Sheet thickness | 3÷30 ( 1/8 ÷ 5/4) mm (in) |
| Grinding wheel pack maximum thickness | 50 (2) mm (in) |
