Brembana E-pump waterjet.
Benefits
Very high efficiency
The innovative brembana e-pump technology guarantees 31% better efficiency compared to a conventional hydraulic intensifier, partly due to a 95% reduction in hydraulic components and the direct hydraulic unit interface to eliminate pressure losses and long-term wear.
Maximum energy savings
-37% electricity consumption due to a combination of cutting cycles and rapid movements. The hybrid double-acting pressure pump with direct connection is optimized to reduce consumption, thanks to the use of a brushless servomotor controlled by an inverter. The primary motor and auxiliary motors controlled by inverters allow brembana e-pump to adapt better to the working conditions and eliminate starting current peaks.

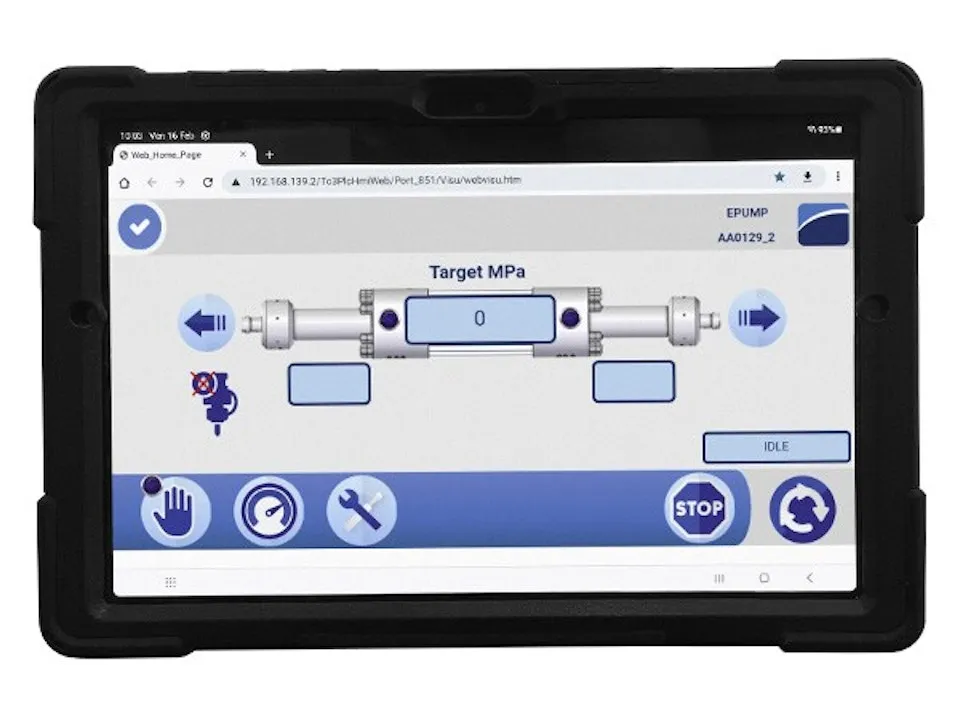

Wi-fi tablet with web hmi
The intensifier is controlled by an industrial PLC in the electrical cabinet in order to interface with CMS cutting tables, as well as third party ones. The HMI control interface is accessible from the 10.4” Wi-Fi tablet and offers: -remote diagnostics - power management and control - management and control of the cycle number per cylinder - electronic cutting pressure control

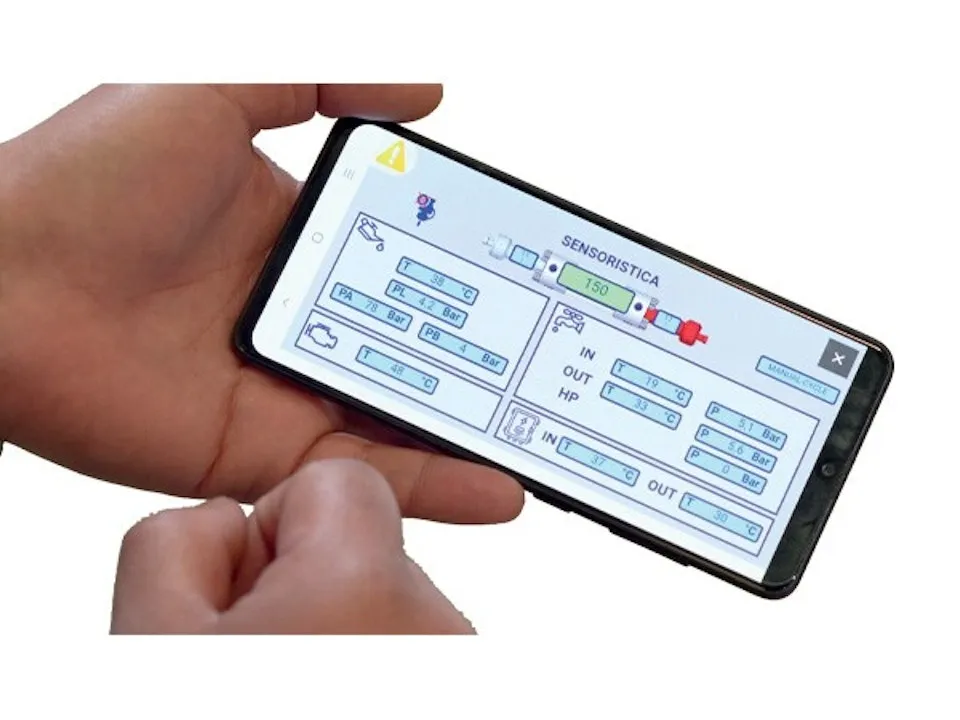

Remote management
The intensifier web interface is accessible remotely via computer or smartphone to view operation, see any alarms and activate the emergency STOP command when necessary.
Brembana E-pump
Technical data
| Power consumption (0.38 orifice at 3800 bar) | 30 kW |
|---|---|
| Maximum power consumption with closed head | 2.4 kW |
| Maximum operating pressure | 4130 bar |
| Maximum water flow rate at 3700 bar | 5 l/min |
| Maximum orifice diameter at 3700 bar | 0.40 mm |
| Overall dimensions l x w x h | 1666x906x1529 mm |
| Weight | 1400 Kg |
| Voltage (three-phase) | 400 V 50/60 Hz |
| Oil tank capacity | 13 L |
| Pressure attenuator capacity | 1.15 L |
| Cylinder stroke | 200 mm |
| Required inlet water temperature (acceptable min – max) | 5 - 25 °C |
| Nominal environment temperature (acceptable min – max) | 5 - 40 °C |
| Nominal noise | 70 db |
