Large-sized 5-axis CNC bridge saw for cutting, 3D profiling and milling on slabs and stone blocks.
Benefits
Unrivalled mechanics
Open frame version, to install on concrete or carpentry shoulders guaranteeing stability and rigidity to accomplish the most difficult processing and to ensure long longevity.

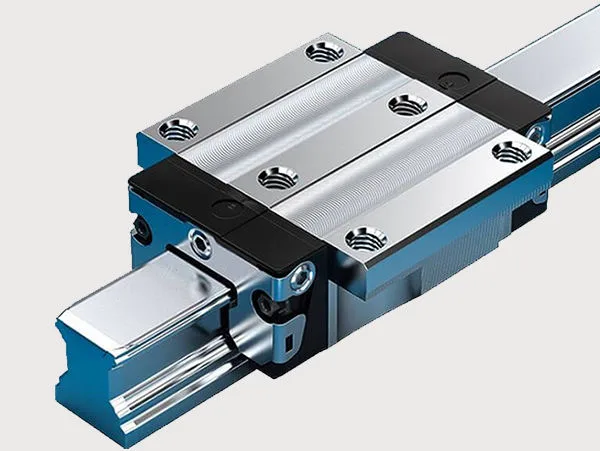

Motion accuracy
As a guarantee of quality all movements are powered by brushless motors coupled with a precision reduction gear and transmitted through rectified and tempered guides and ball bearings.

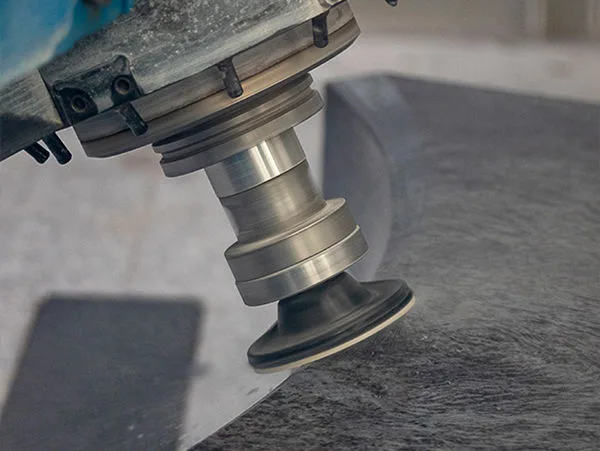

Limitless technology
The machine can be equipped with a powerful ISO 50 electrospindle which, together with the 5 interpolated axes, transforms the machine into a modern and complete 5-axis machining center.

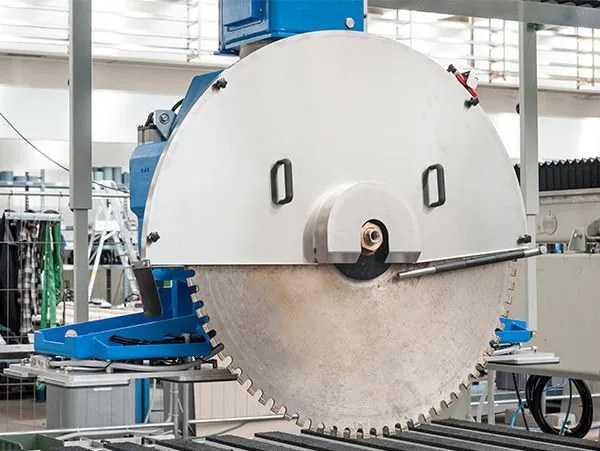

The best solution for block machining
Its extraordinary stability allows a Z-stroke of 1,400 mm with disks up to 1,200 mm in diameter — industry-leading features for large block work.
Brembana Gixa
Numerically controlled 5 interpolated-axis bridge saw equipped with a tilting head and fixed table to carry out any type of machining — cutting (straight or shaped, vertical or inclined), 3D profiling and milling operations on slabs and stone blocks. The machine can work one shot or step by step to shape marble, granite, composite stone, and ceramic pieces.
The 4,250 mm bridge stroke guarantees easy machining of large-sized slabs or stone blocks. Its extraordinary stability allows a Z-stroke of 1,400 mm with disks up to 1,200 mm in diameter — industry-leading features for large block work.
Technical data
| X axis stroke | 4250 mm / 167 in |
|---|---|
| Y axis stroke | 3000 ÷ 7000 mm / 118 ÷ 276 in |
| Z axis stroke | 900 ÷ 1400 mm / 35 ÷ 55 in |
| Disk diameter | 400 ÷ 1200 mm / 16 ÷ 47 in |
| Motor | 25.5 kW / 34 HP — 28.5 kW / 38 HP — 31.2 kW / 42 HP |
| Motor revolution | 0 ÷ 5000 rpm (optional 0 ÷ 6000 rpm) |
| Maximum working thickness (with 90° disk Ø 1200 mm) | 440 mm / 17 in |
| Minimum working thickness (with 45° disk Ø 1200 mm) | 315 mm / 12 in |
| Head revolution (4th axis) | ± 270° (540°) |
| Head inclination (5th axis) | +8° −90° |
| Workbench dimensions | 4200×2500 mm / 165×98 in * |
| Minimum space required for installation | 7700×5360×4430 mm / 303×211×174 in |
