5-axis open frame bridge saw
Benefits

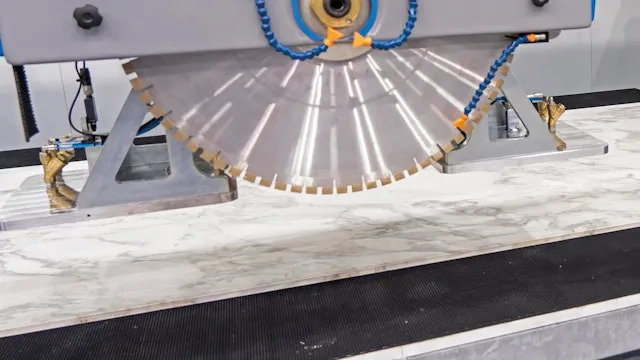

+92% manipulator width
+92% manipulator width compared to the competition, to improve handling of longer workpieces.

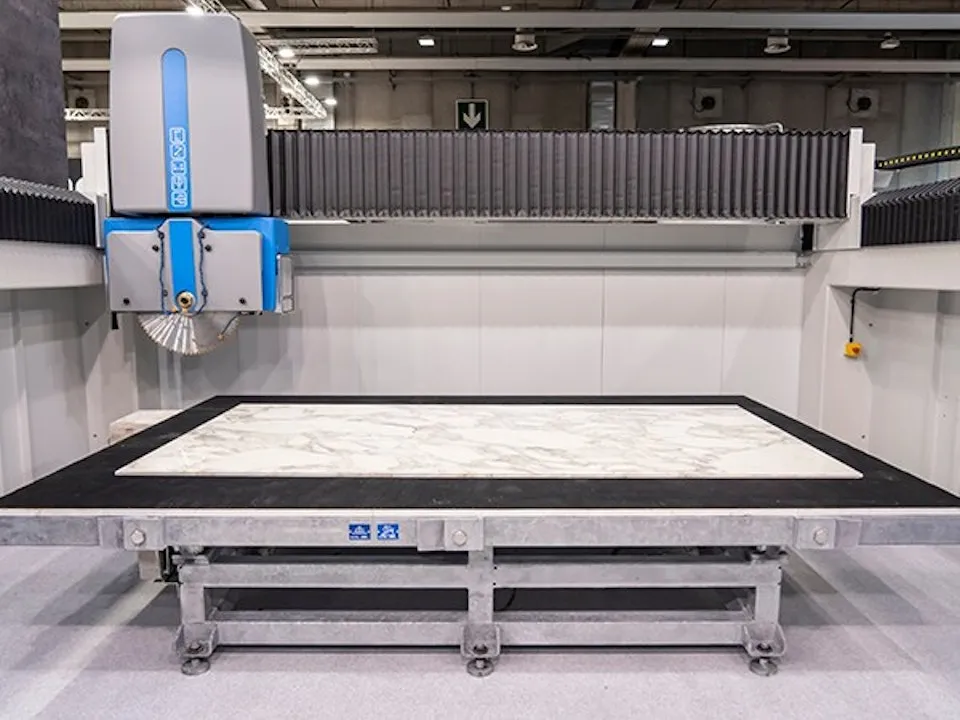

+16% work area
+16% work area compared to the competition: miteringover the entire slab, even of the “super jumbo” type

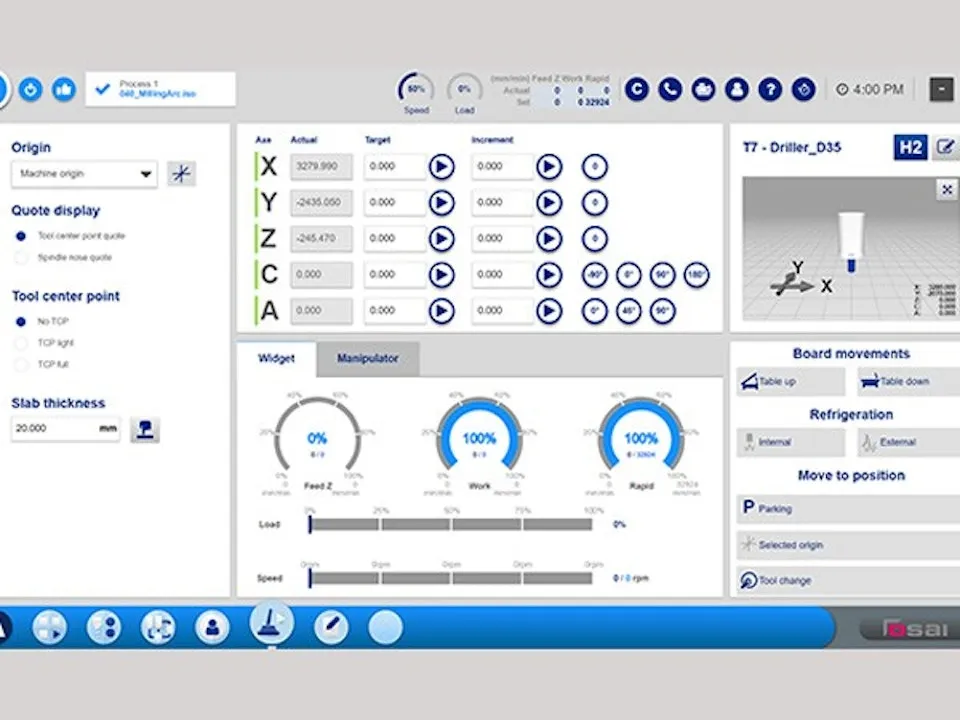

Cms active bridge saws

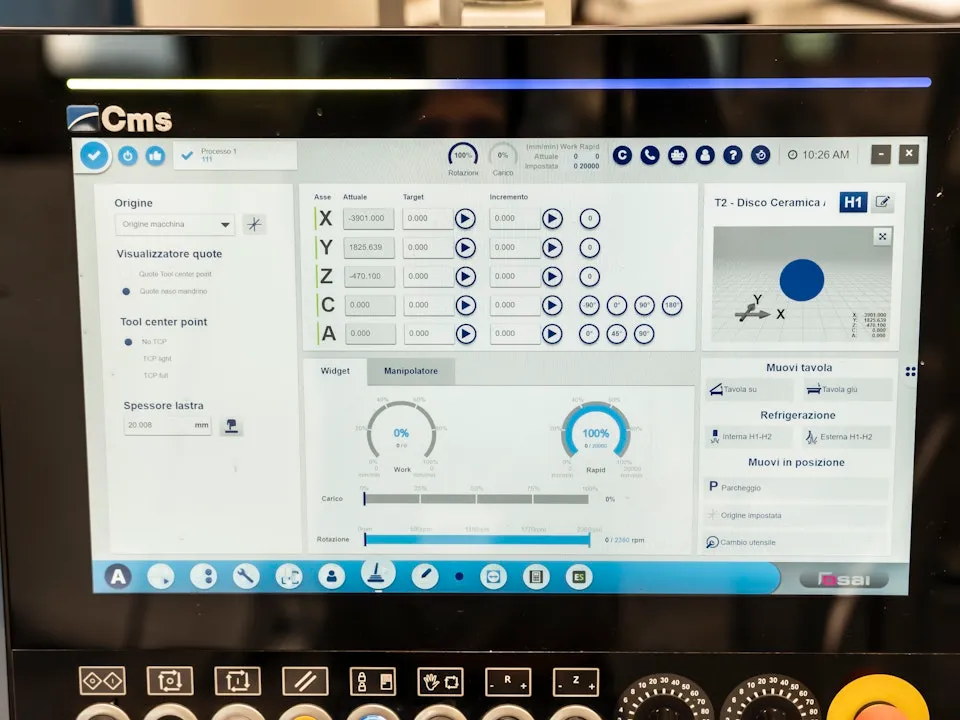

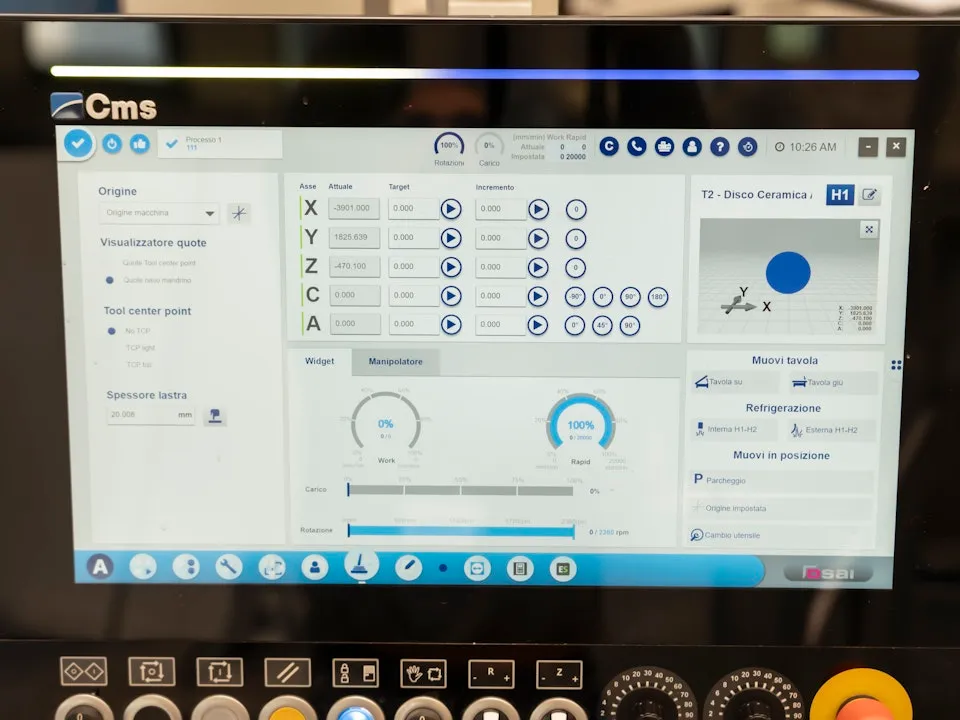

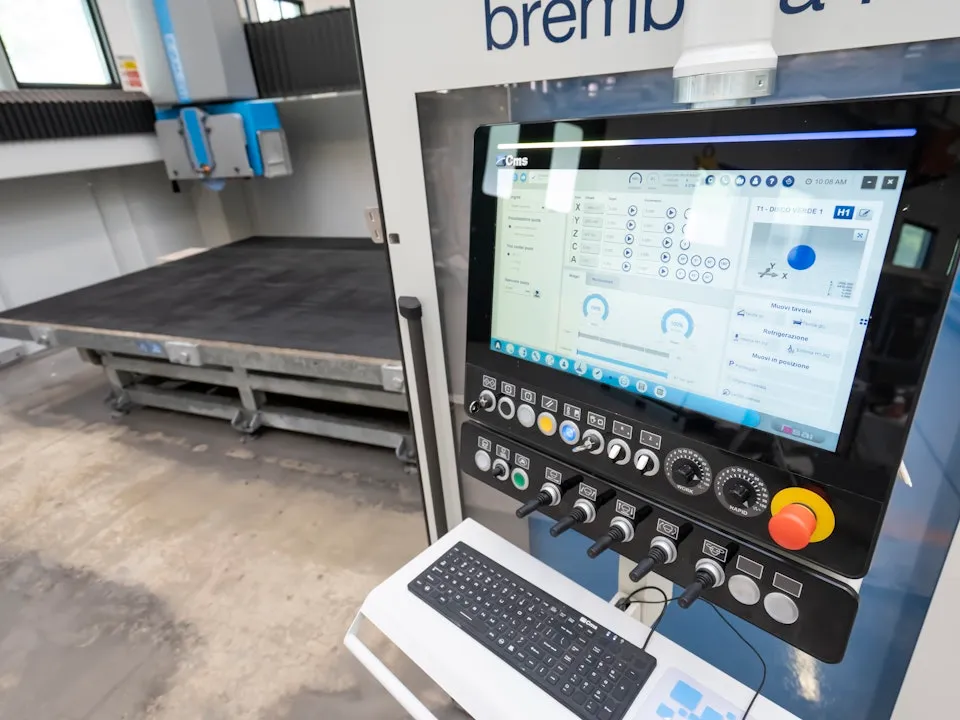

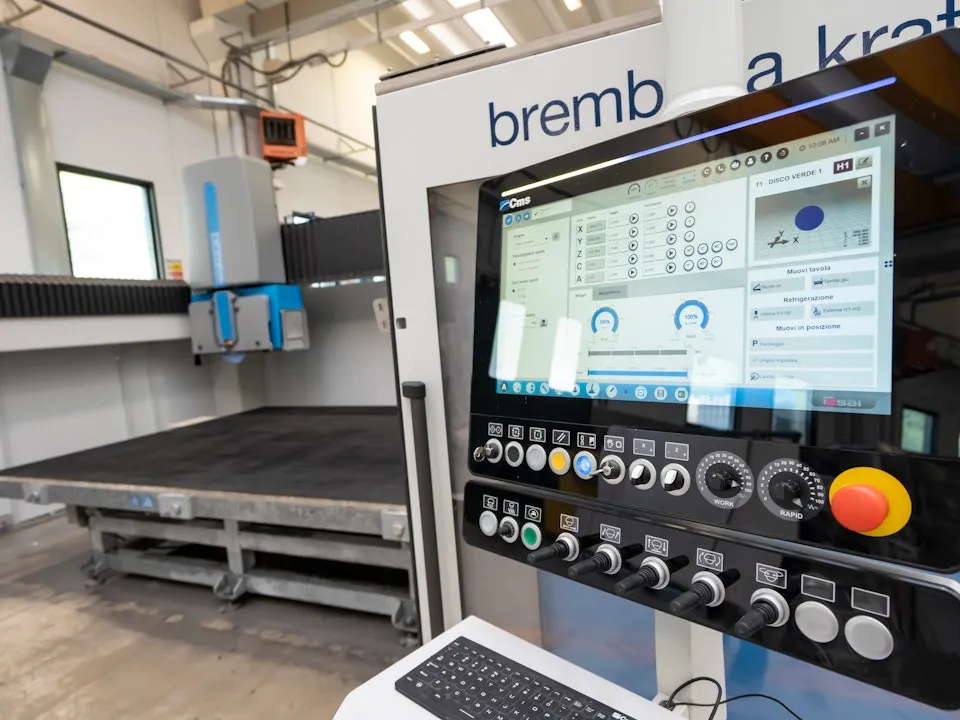

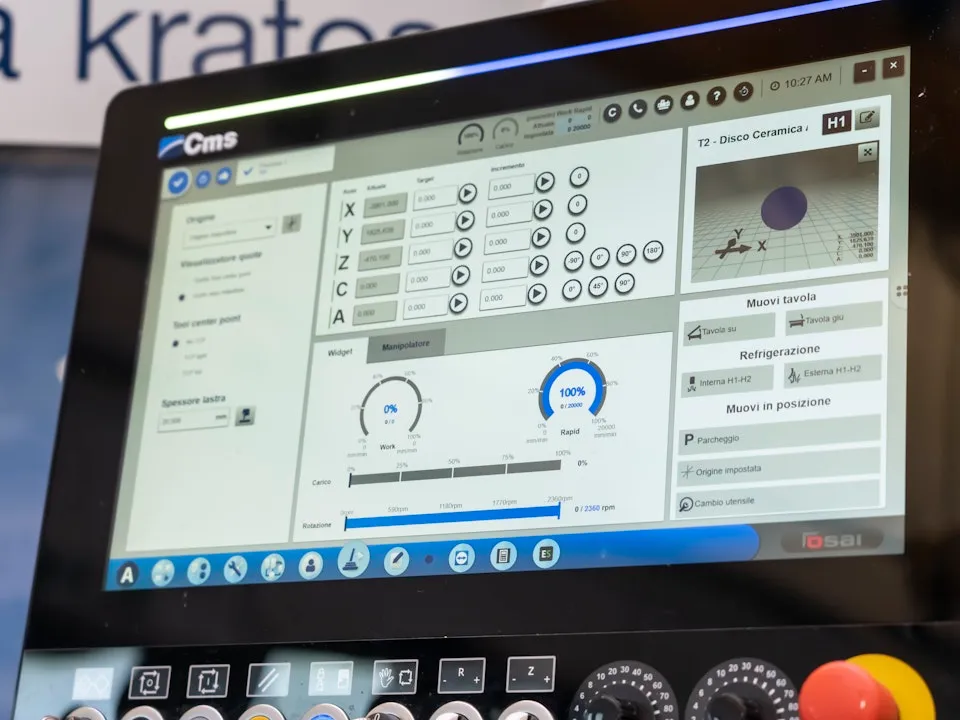

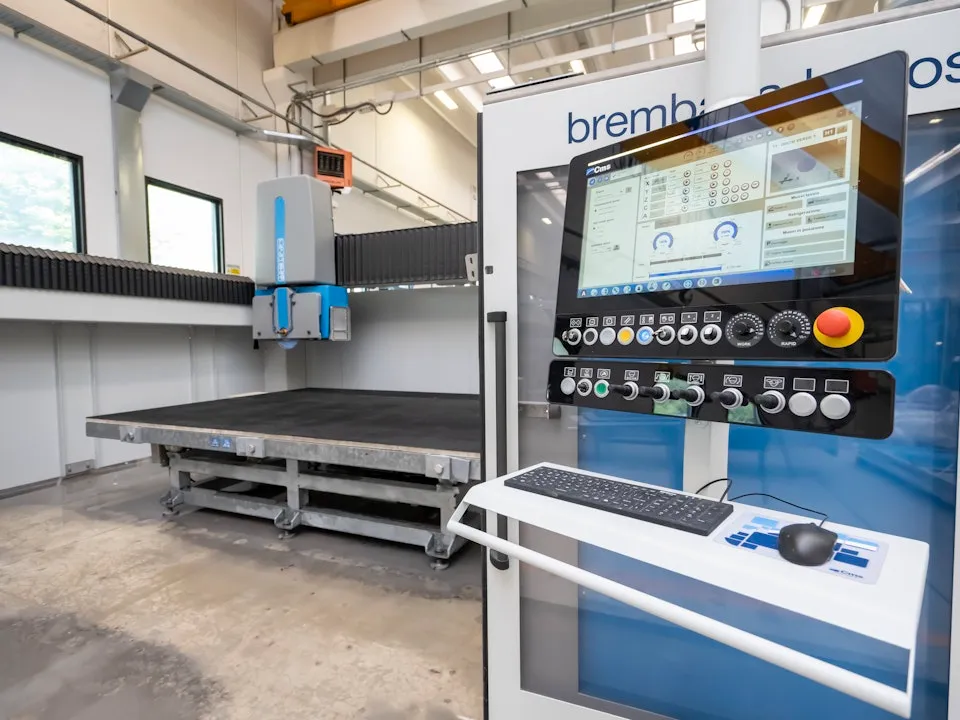

CMS ACTIVE BRIDGE SAWS: new comprehensive, user-friendly user interface and software integrated into the machine.

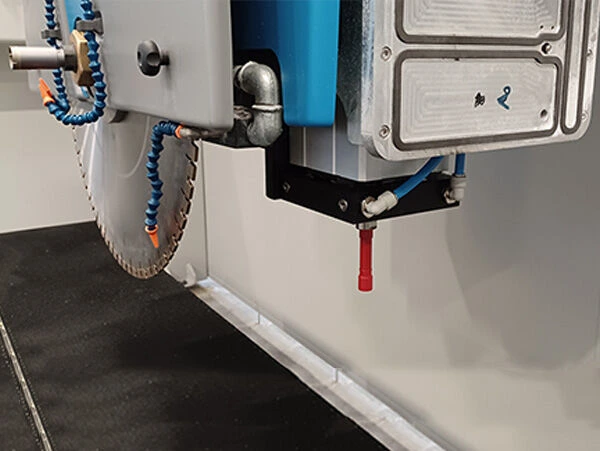

Disk motor + side electrospindle
Disk motor + side electrospindle: 3 tools always available for maximum productivity

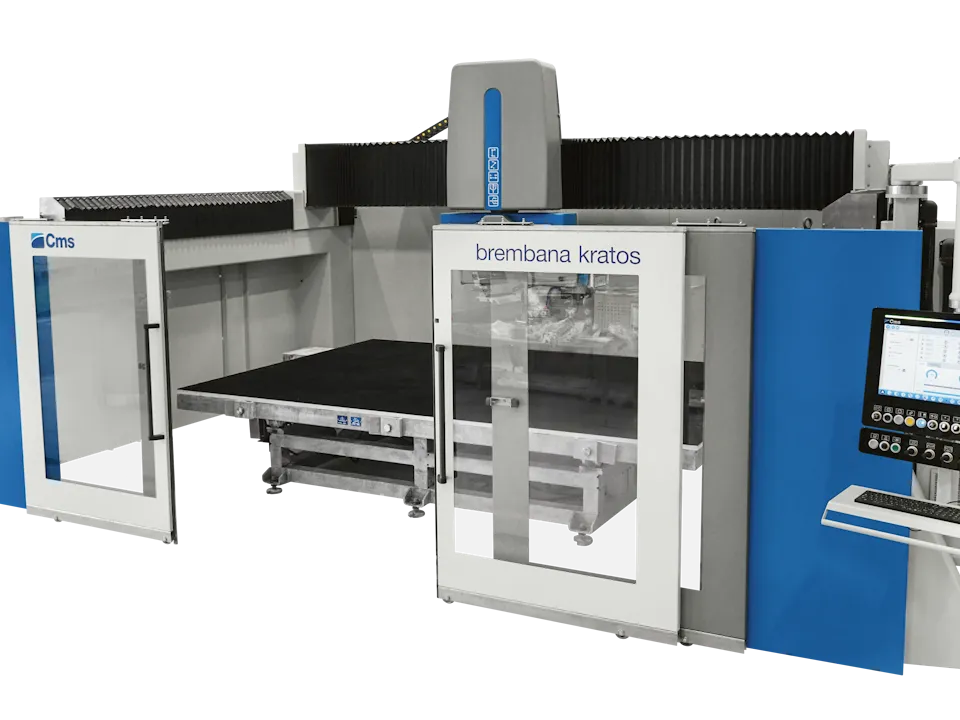

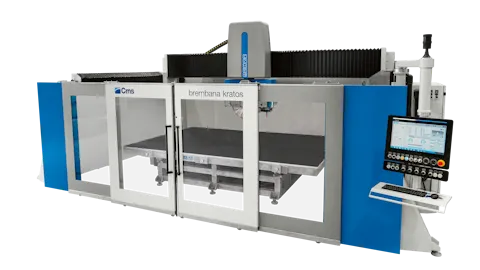

Brembana Kratos

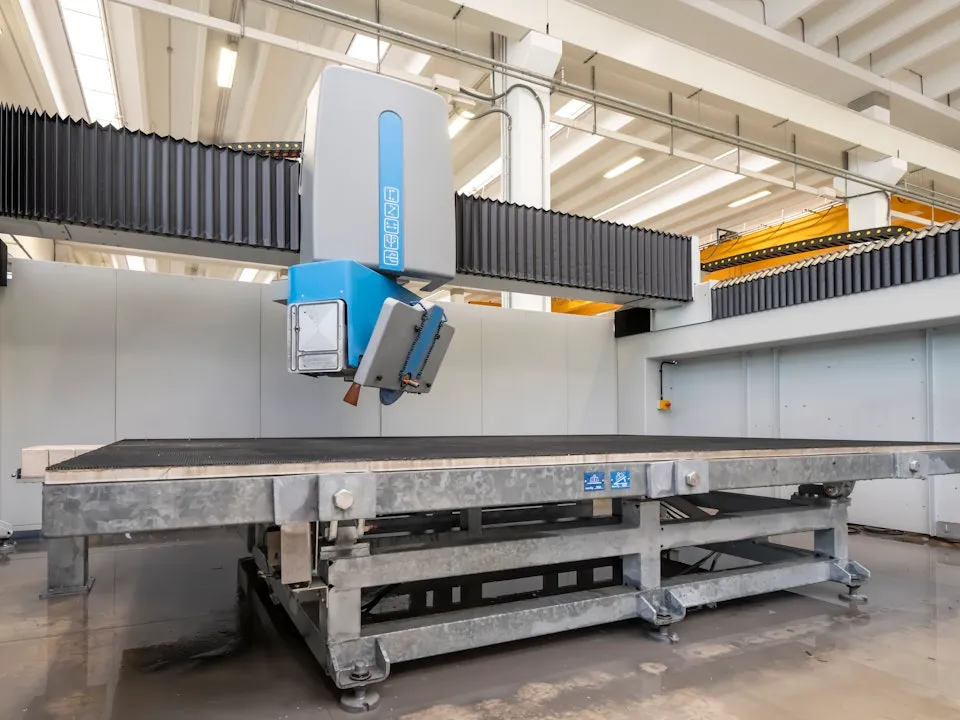

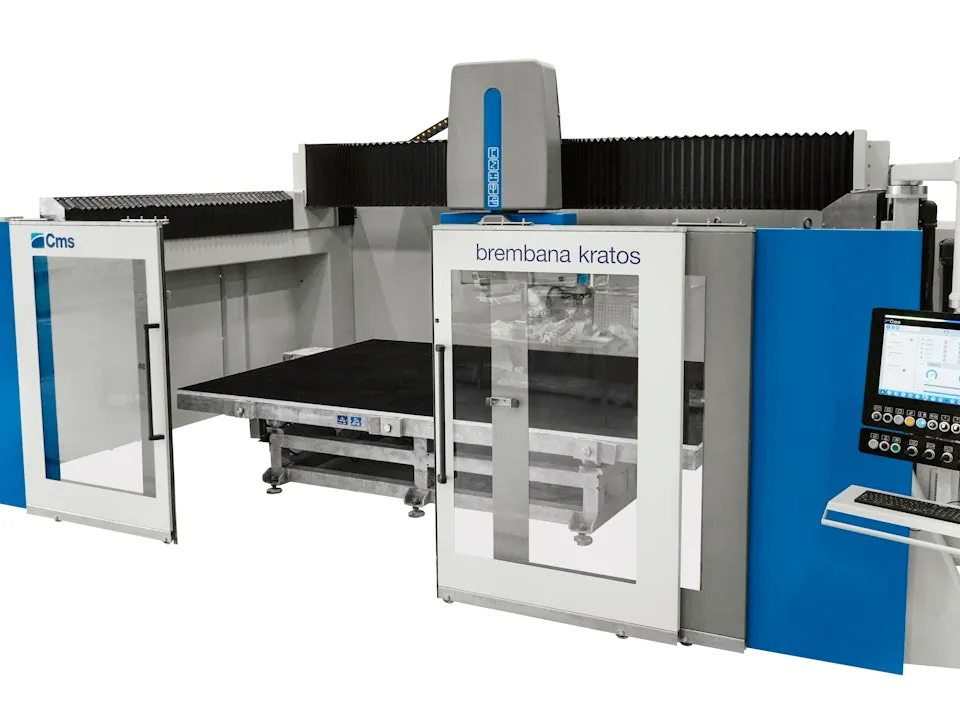

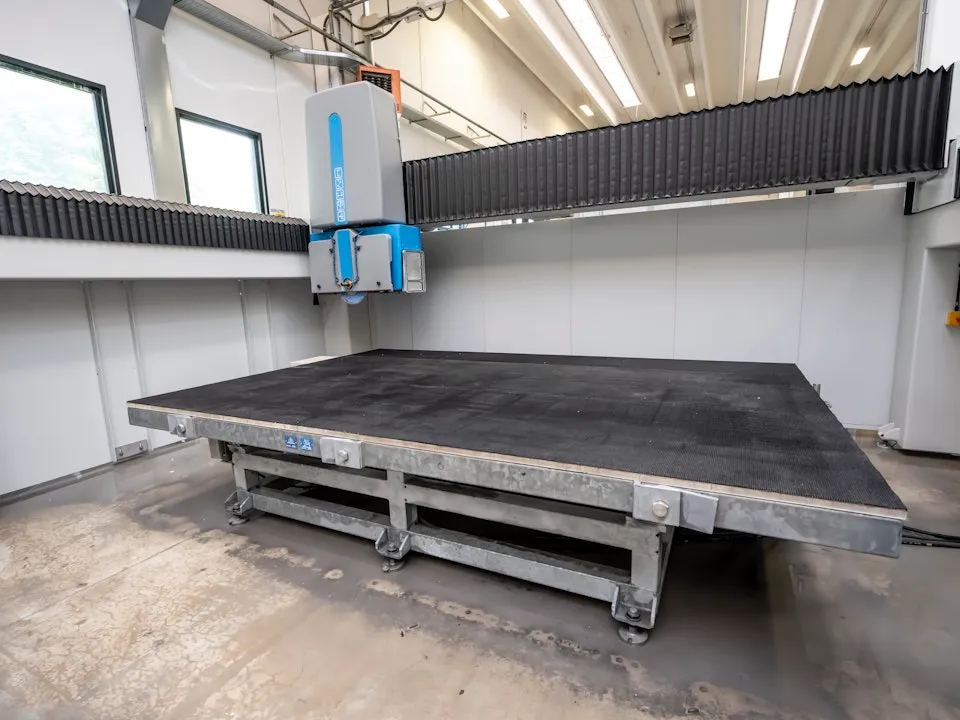

Brembana kratos is the new generation of 5-axis CNC bridge saw. Its robust, open-frame construction is designed to fit easily into both fabshops and automated production lines. It is built for maximum strength and productivity, without compromising precision in any machining process: from cutting strips from hard stone blocks up to 250 mm thick, to cutting thin ceramic slabs to make kitchen worktops. The vacuum manipulator features a large gripping width and an increased suction surface divided into multiple zones. With a capacity of 500 kg, it can handle anything from long, narrow backsplashes up to jumbo slabs.
Technical data
| Blade disk diameter | 300 ÷ 725 mm / 12÷28 in – with side spindle absent or disabled 300 ÷ 425 mm / 12÷17 in – with side spindle enabled |
|---|---|
| Maximum working thickness with blade disk | 250 mm / 9.8 in |
| Blade motor | 18,5kW – 25 HP |
| Blade motor revolution | 0 ÷ 6000 rpm |
| Optional side electrospindle | 3.7kW – 6Nm, 14000rpm |
| Type of tools | ½ gas RIGHT connection |
| Head revolution (c axis) | ± 185° (370°) |
| Head inclination (a axis) | 0° / +90° |
| X axis stroke and speed | 3900 mm / 152 in - 36 m/min |
| Y AXIS STROKE and speed | 2450 mm / 96 in - 36 m/min |
| Z AXIS STROKE and speed | 550 mm / 21.5 in - 8 m/min |
| Workbench dimensions | 3800x2500 mm / 148x98 in |
| Workbench capacity | 3000kg static load, 2000kg tilting load |
| Minimum space required for installation* | 7080mm x5310mm, H max 3300mm OVERALL MACHINE |
| Overall machine weight | 7000kg |
