5/6 interpolated axes CNC machining center
Benefits

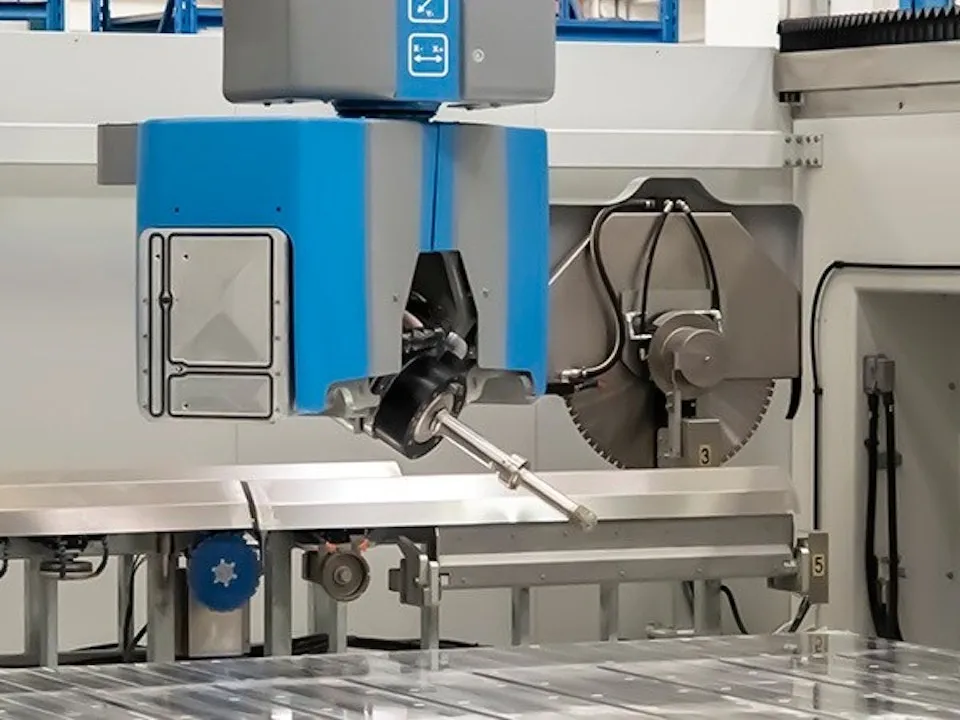

Power at the top of the category

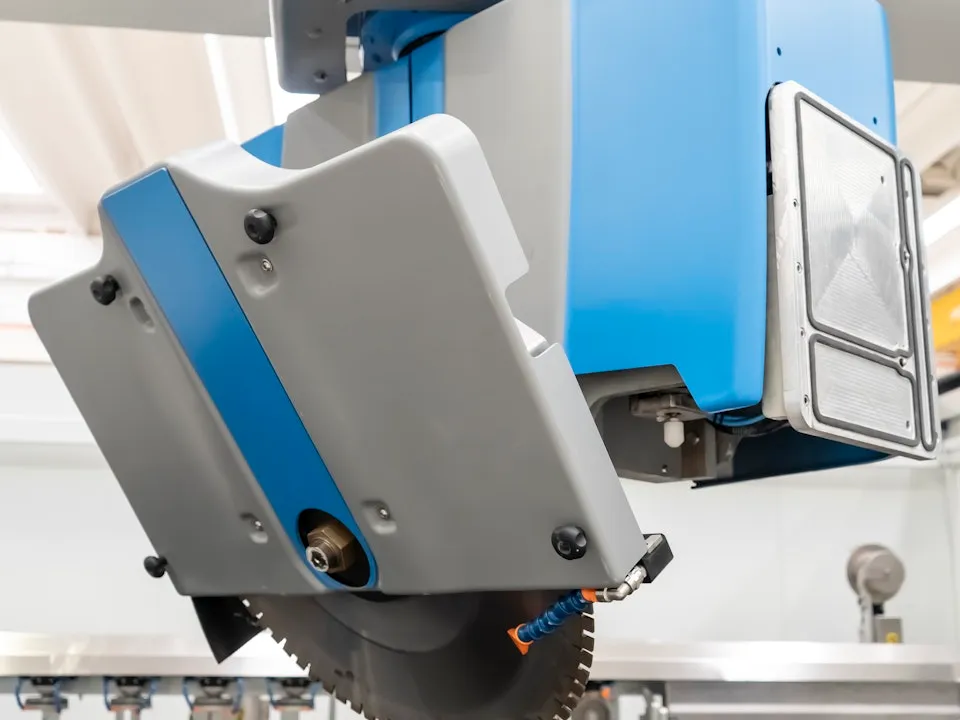

New Hiteco electrospindle with 37.5 Hp and 119 Nm, for heavy duty machinings from cutting to milling.
Unrivalled mechanics
The sturdy structure of the machining center ensures optimal absorption of the stresses derived from machining, guaranteeing a high constant precision over time.

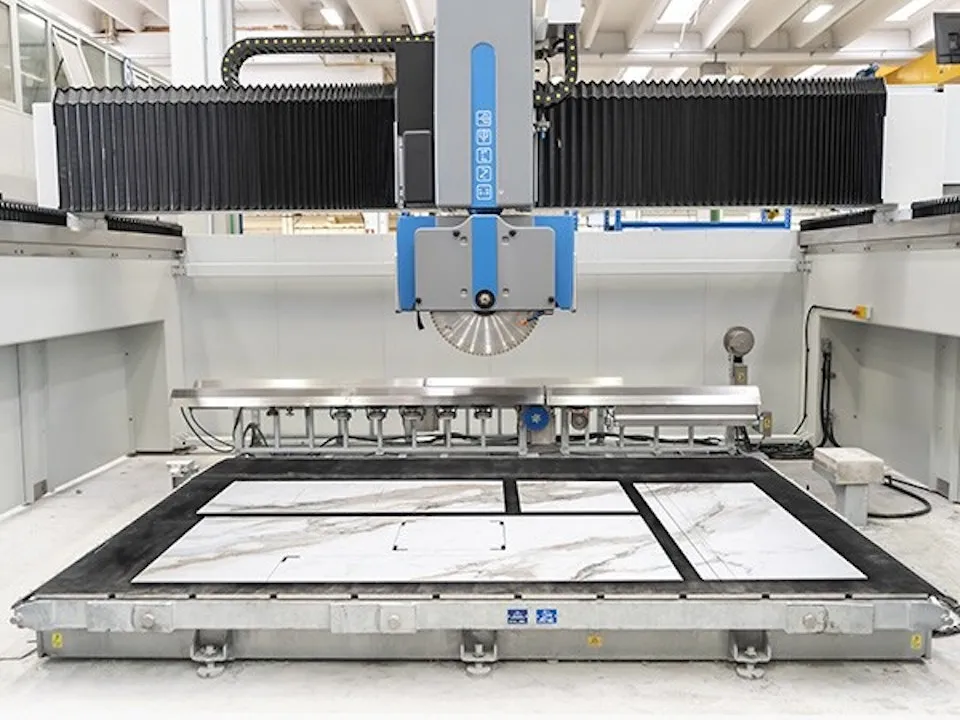

Maximum flexibility
Ability to execute complete programs, from slabs to finished products, in a single machine footprint

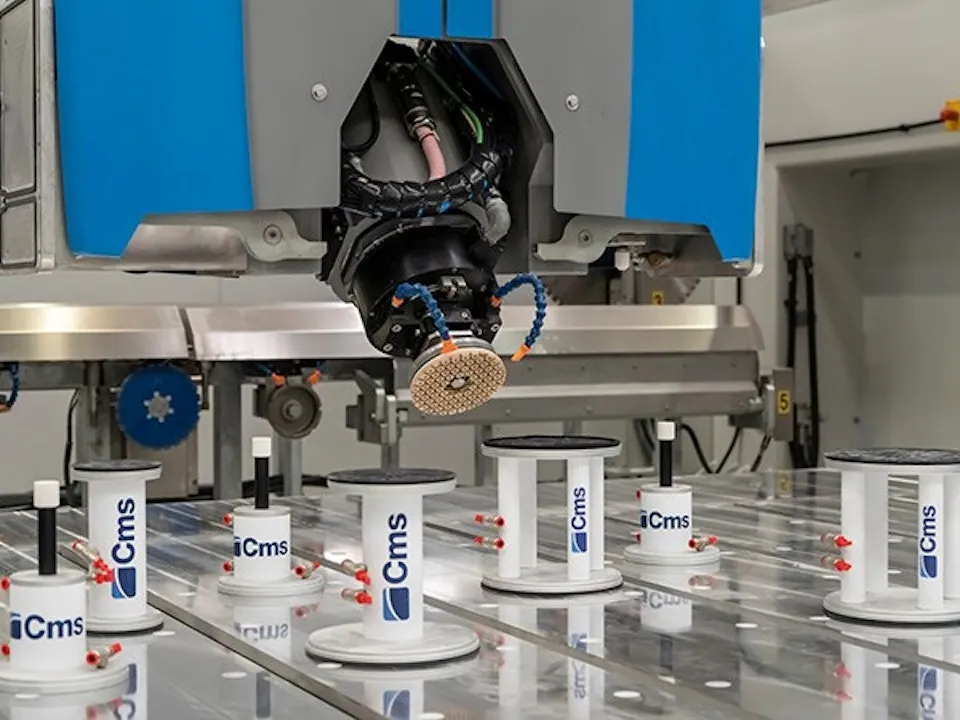

Quality without compromise
Automatic tool wear control system and cutting speed control system, to guarantee best productivity and top quality finishing

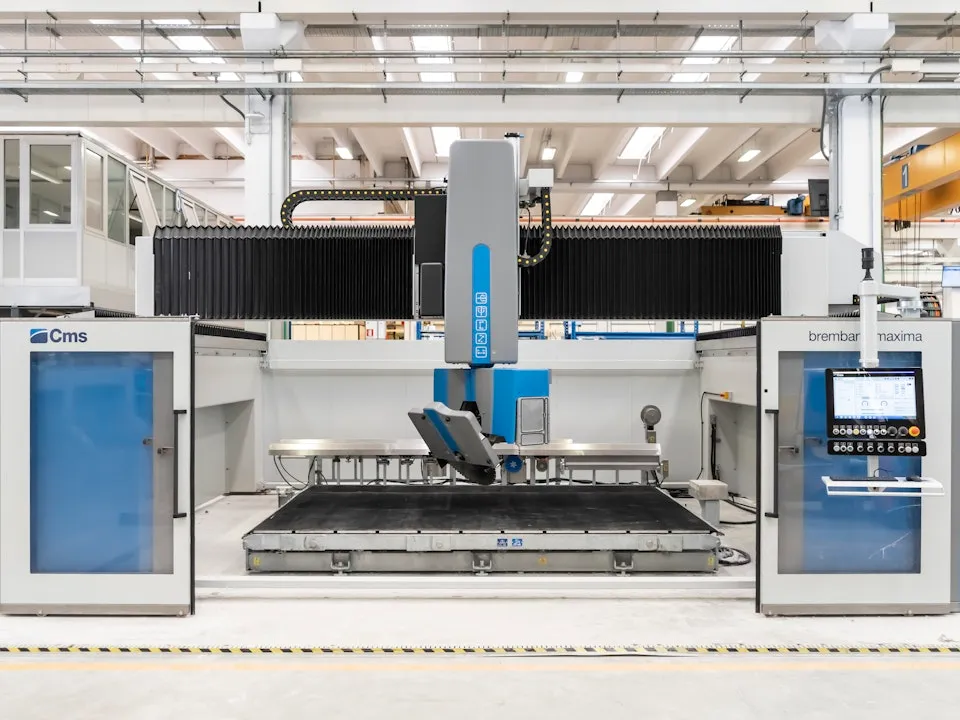

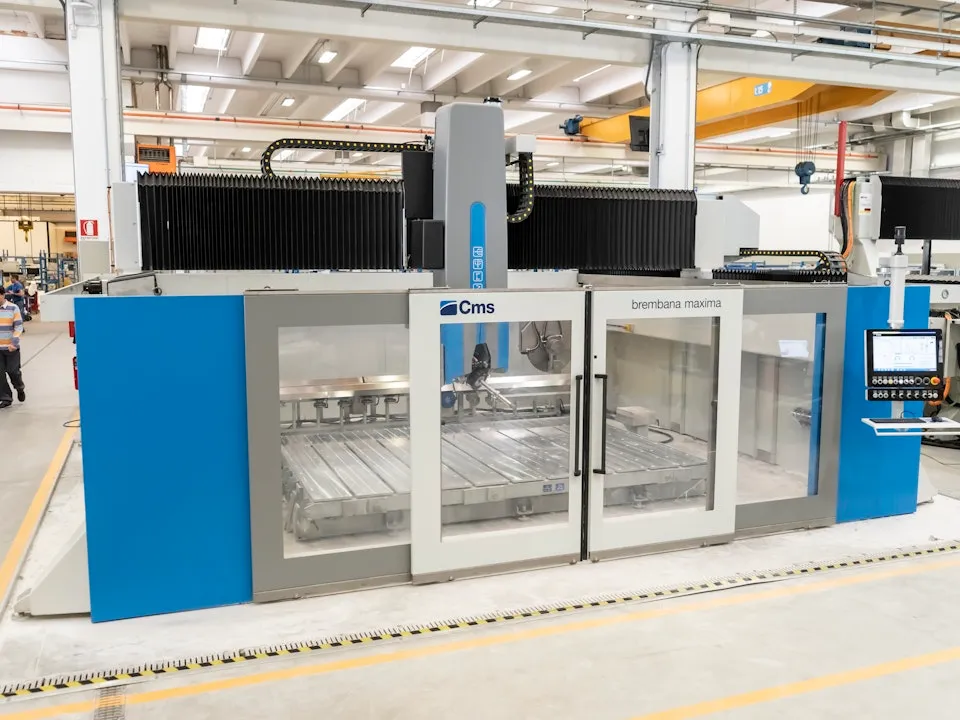

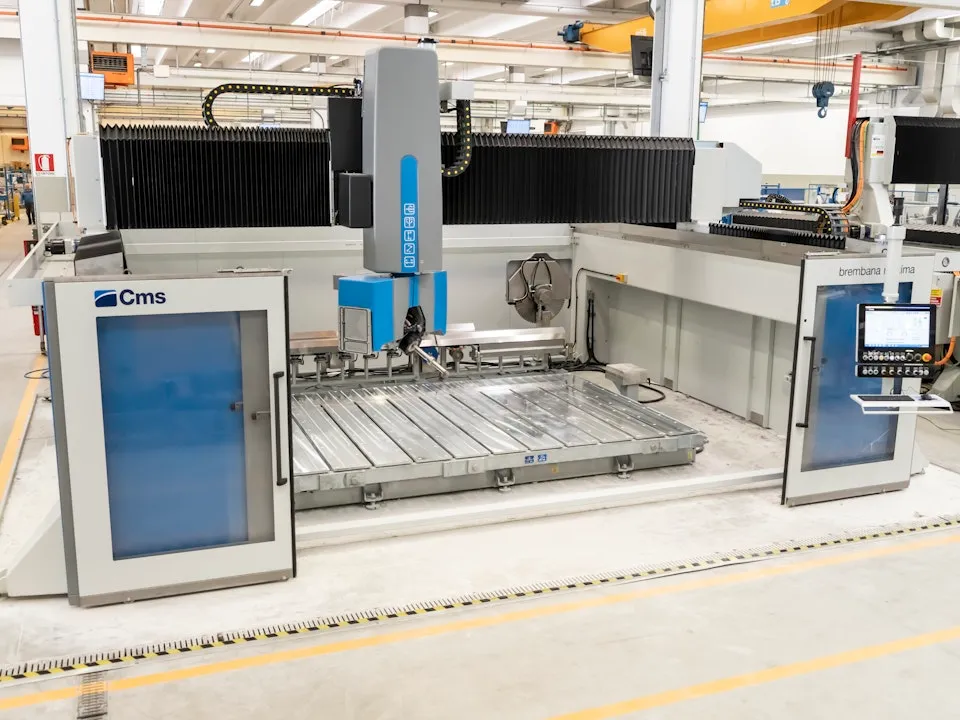

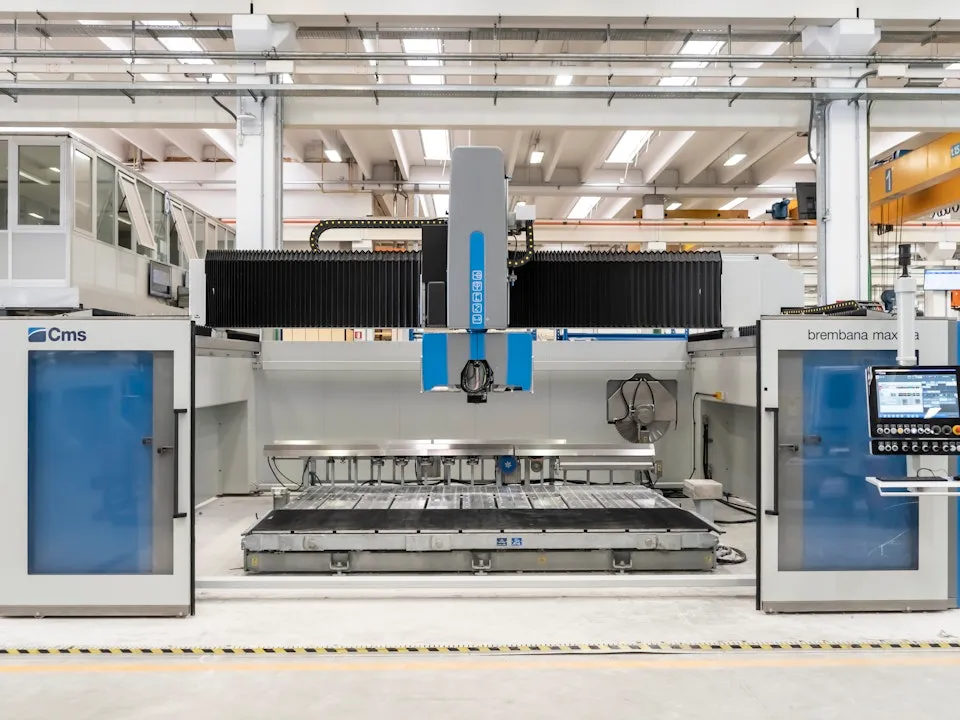

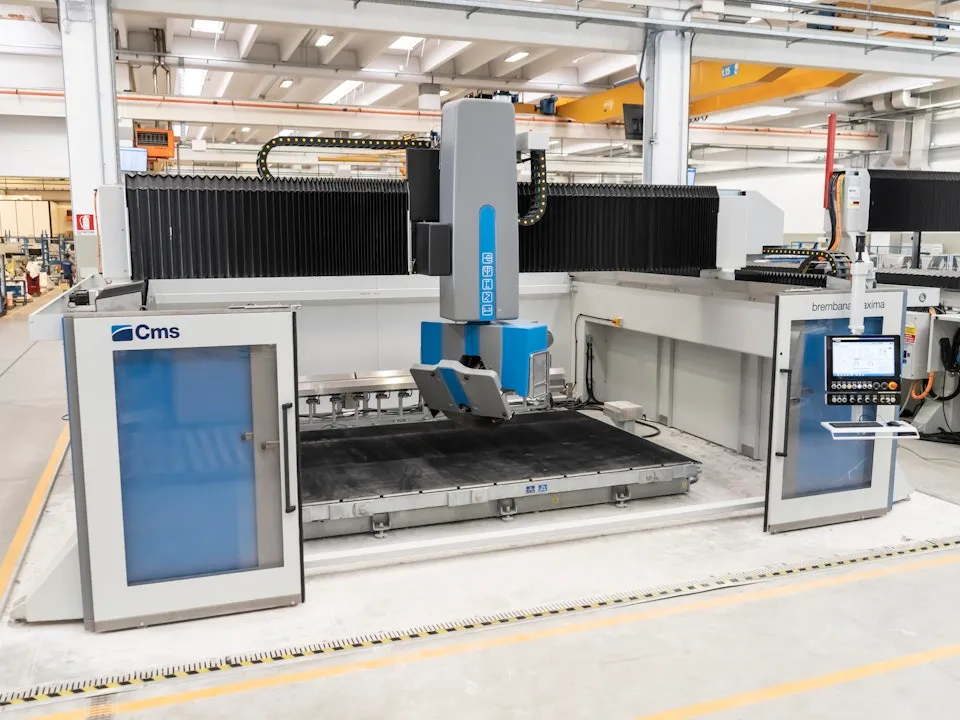

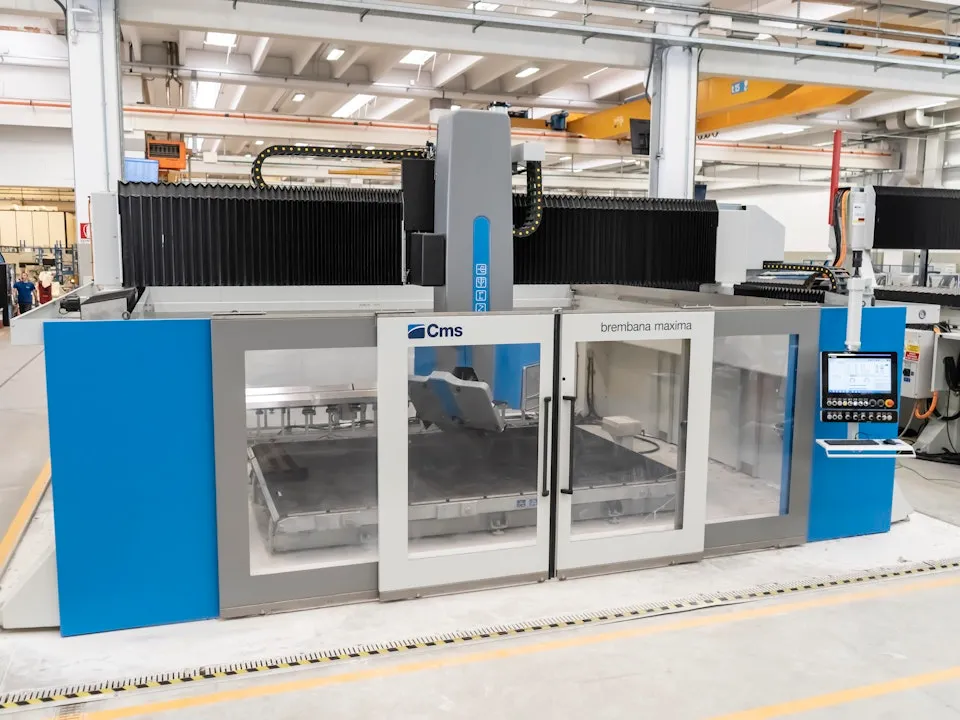

Brembana Maxima

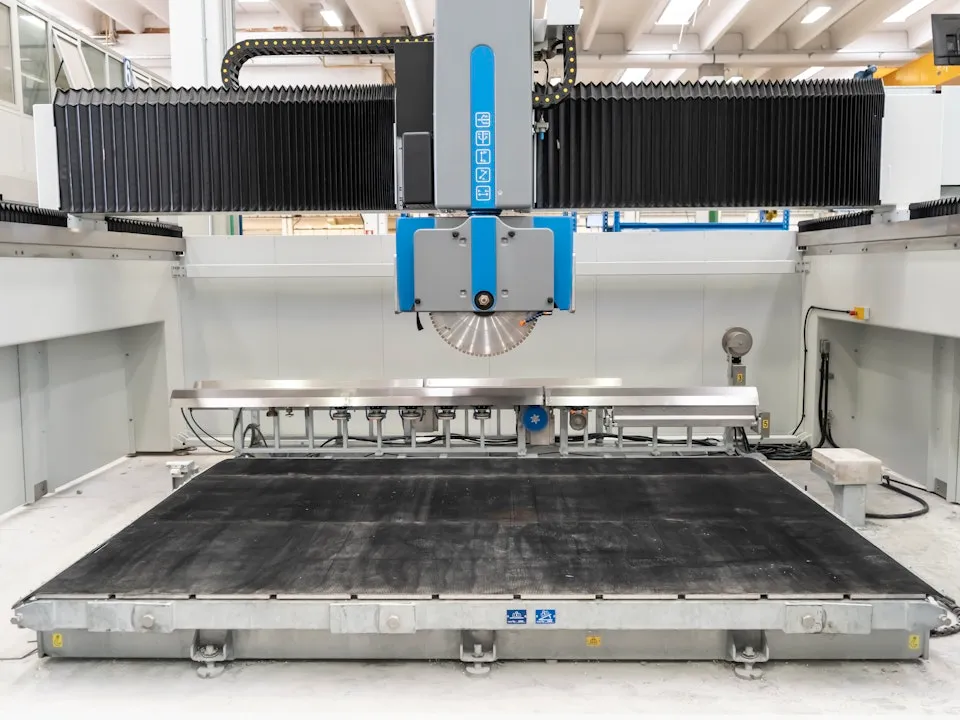

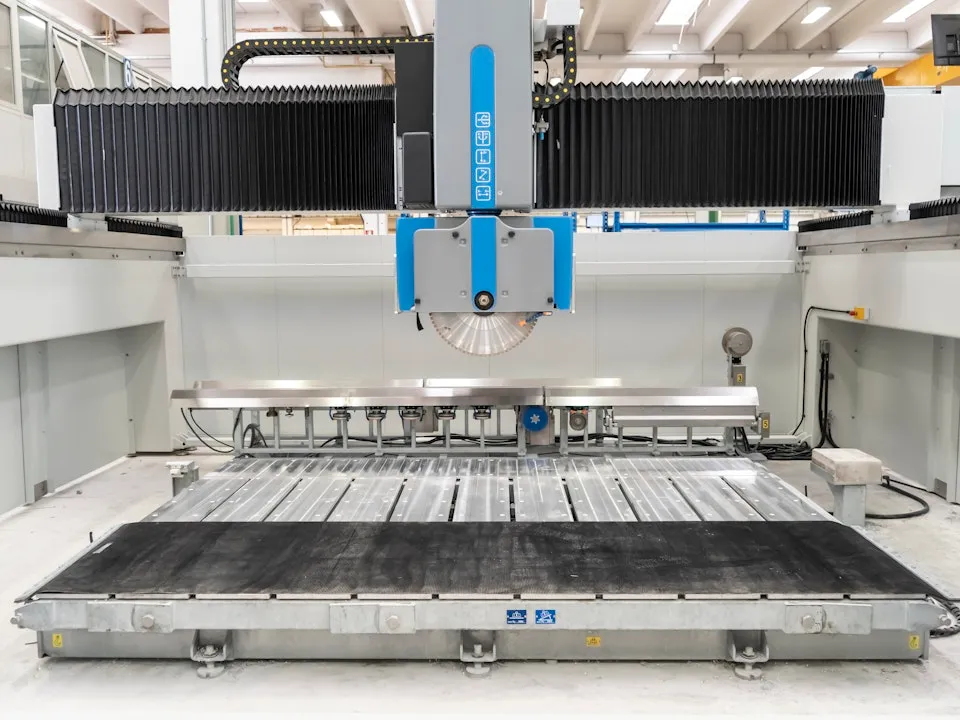

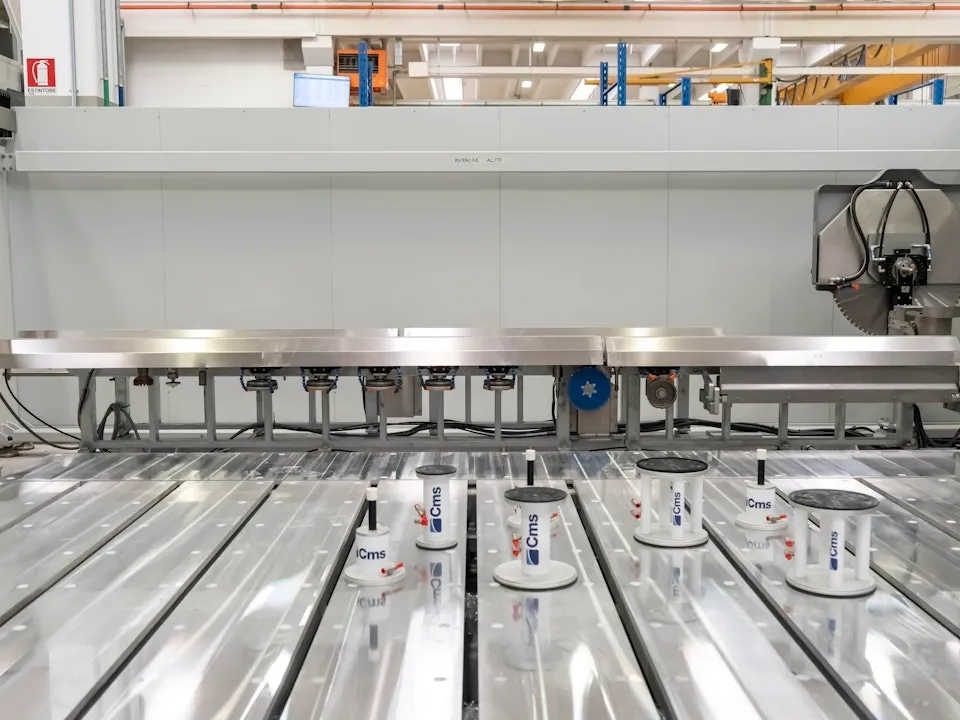

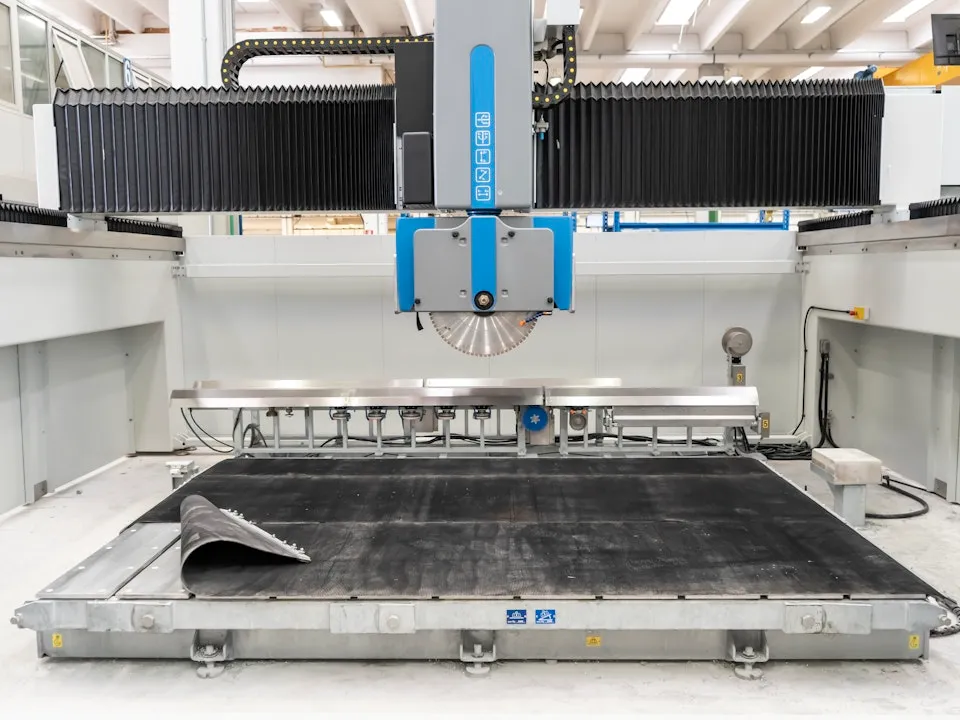

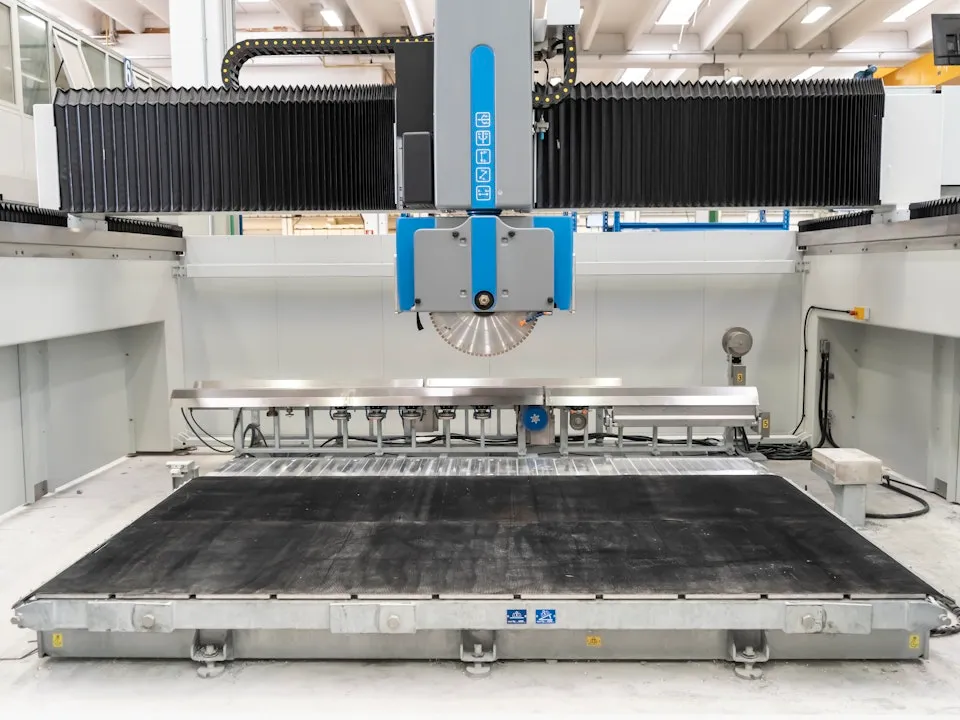

CMS brembana maxima is the new generation of 5-axis CNC machining center. It’s ideal solution for stone fabrication workshops looking to invest in a machining center able to perform from cutting to routing to sculpturing. Superior mechanical structure, removable cutting surface, automatic tool change, the most advanced software, awesome design: Go all-in-one with brembana maxima!
Technical data
| X Axes stroke | 4250 mm |
|---|---|
| Y Axes stroke | 2550 ÷ 8500 mm |
| Z Axes stoke | 900 - 1400 mm |
| Rotating axis | B +0° / -95° |
| No. Stations tool changer | 19 ÷ 55 + max 2 stations for blade diam. Max 725 mm |
| Power | 28 kw |
| Revolution | 0 ÷ 12000 rpm |
| Connection | ISO 40 |
| Torque | 119 Nm 2200 rpm |
| Electrical cabinet | Fixed on right shoulder |
