Hydro-Abrasive waterjet cutting system
Benefits

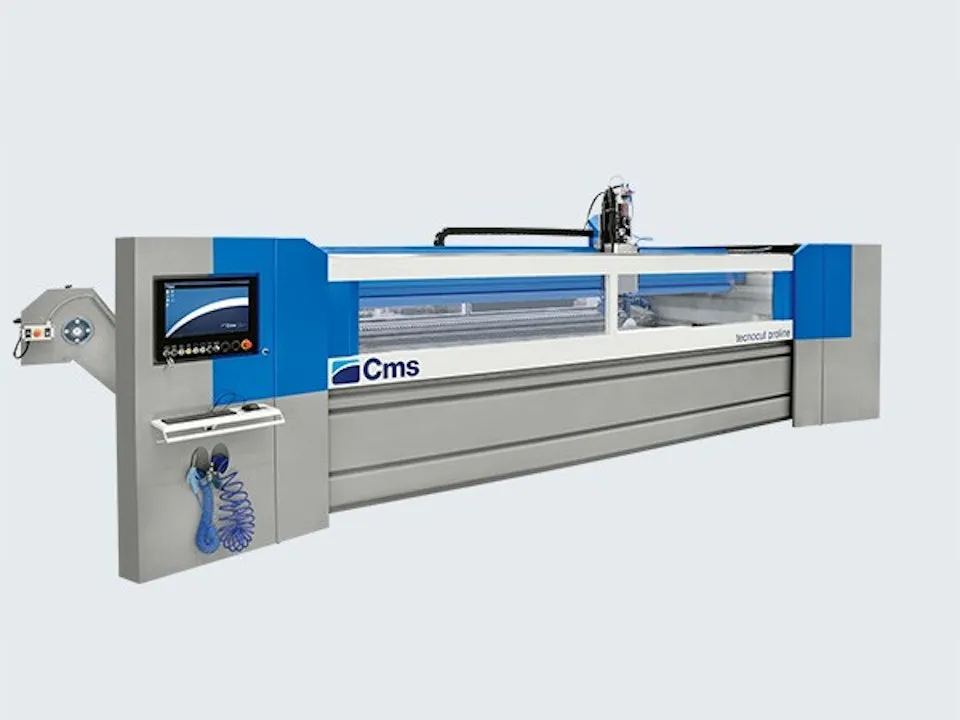

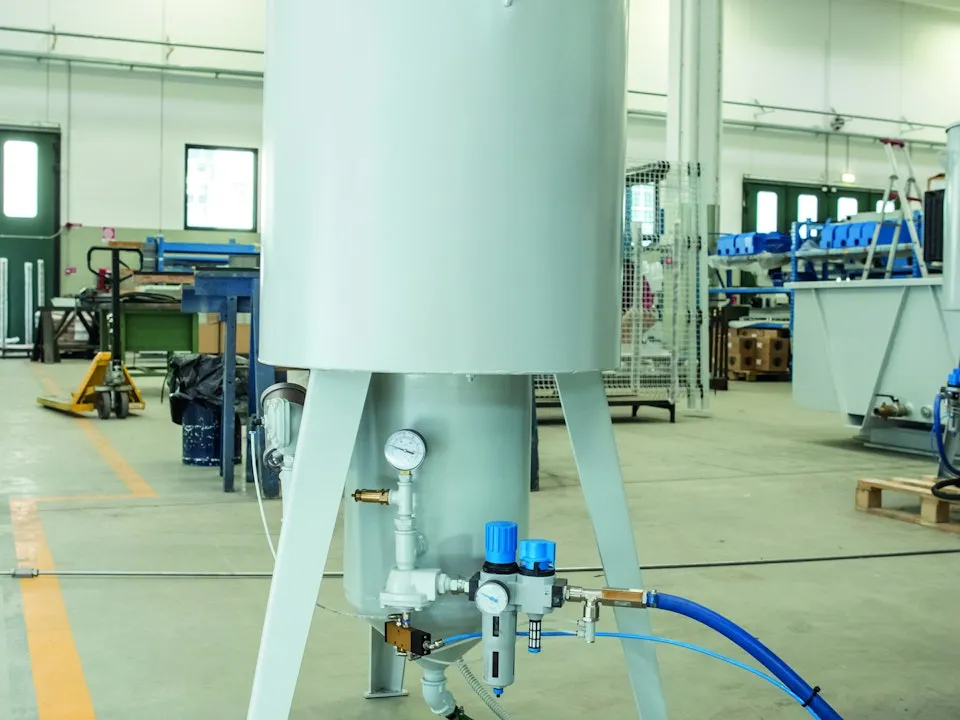

Reduced overall dimensions
The monolithic structure allows the 330 kg abrasive propulsor and the new generation hybrid intensifier to be integrated on the machine

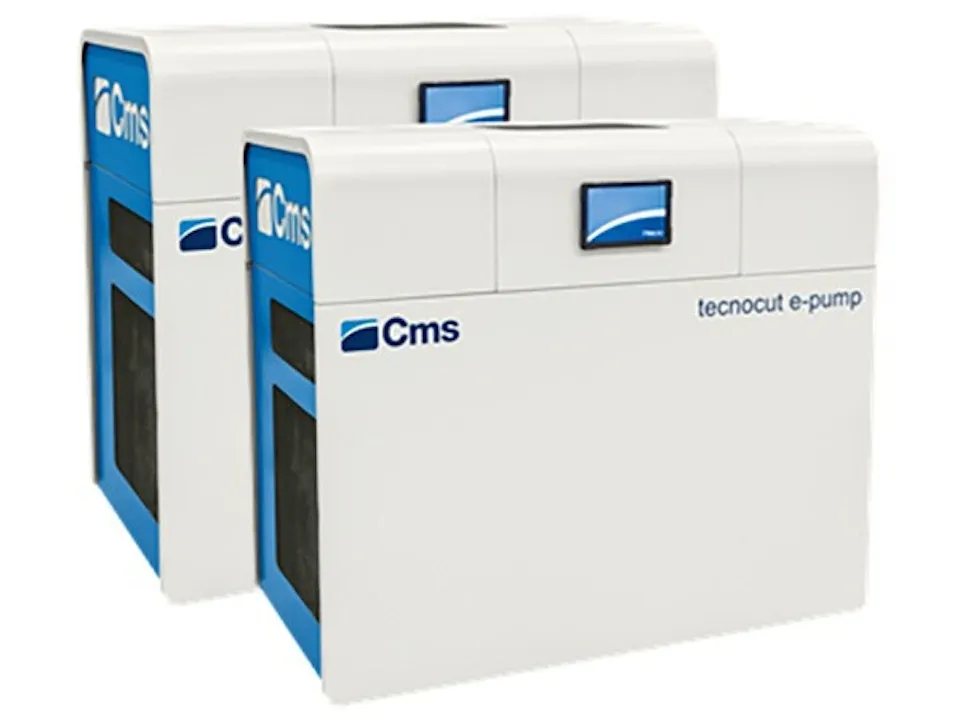

Highest productivity and cutting versatility
Management of up to two 4150 bar parallel intensifiers, with the aim to achieve the highest throughput and cutting versatility also when working especially hard or thick materials

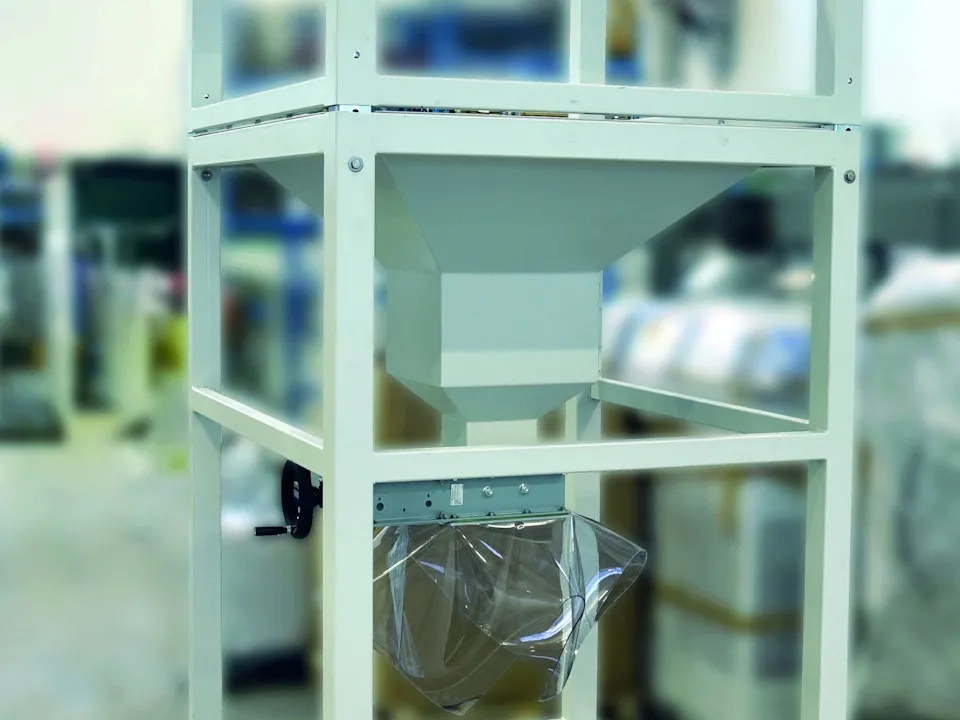

Ready for easy integration with optional
Machine is ready for easy integration with optional such as the Dredge, the rotary option and the water level control for submerged cutting, to accommodate specific applications and the most demanding production requirements.

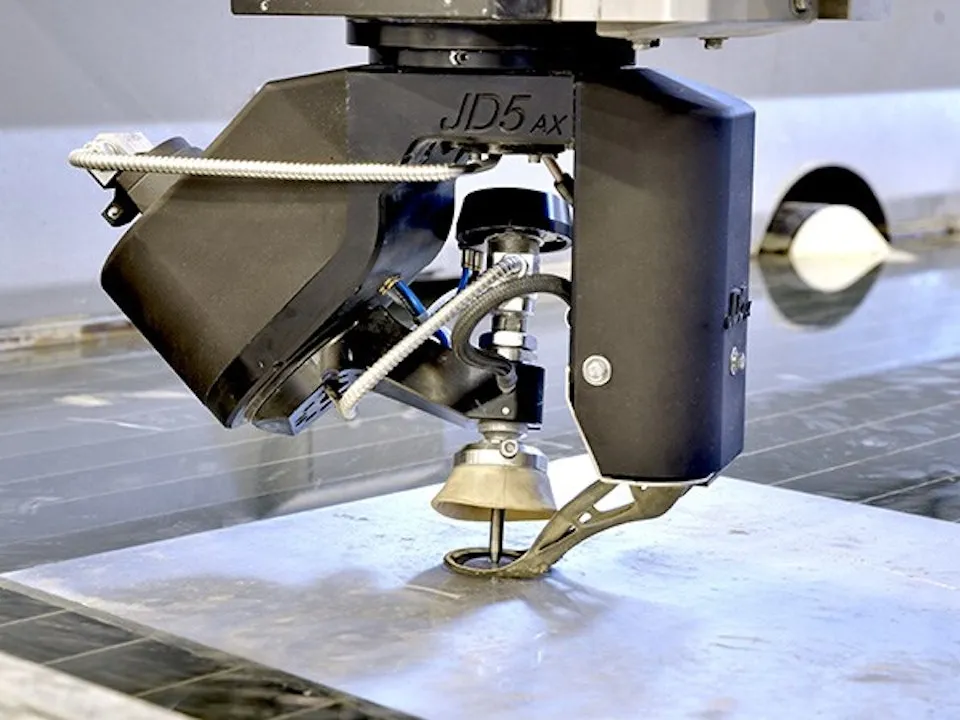

Unparalleled cutting quality
± 0.035 mm of positioning accuracy and +/- 0.025 repeatability across the entire table, to ensure unparalleled cutting quality

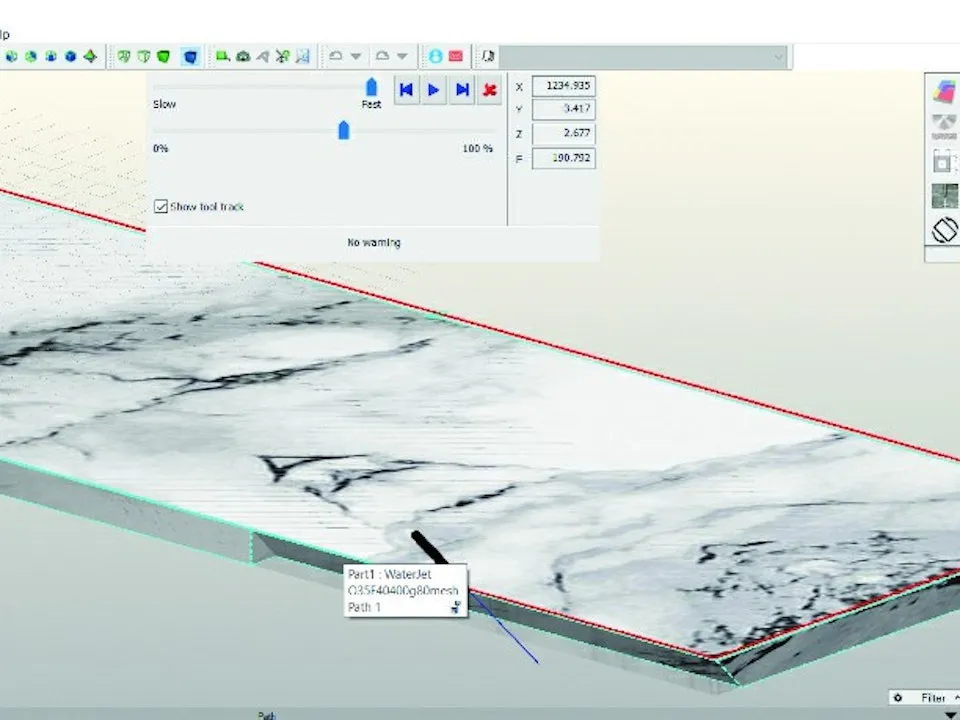

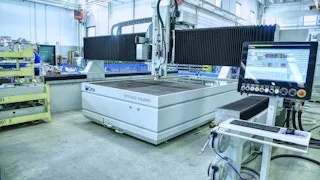

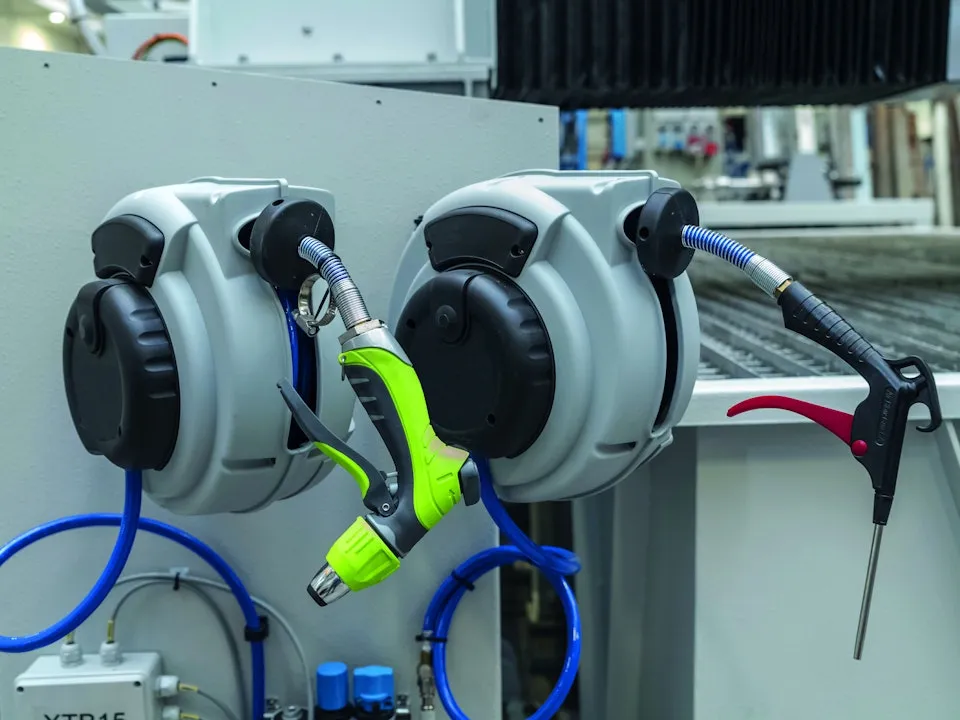

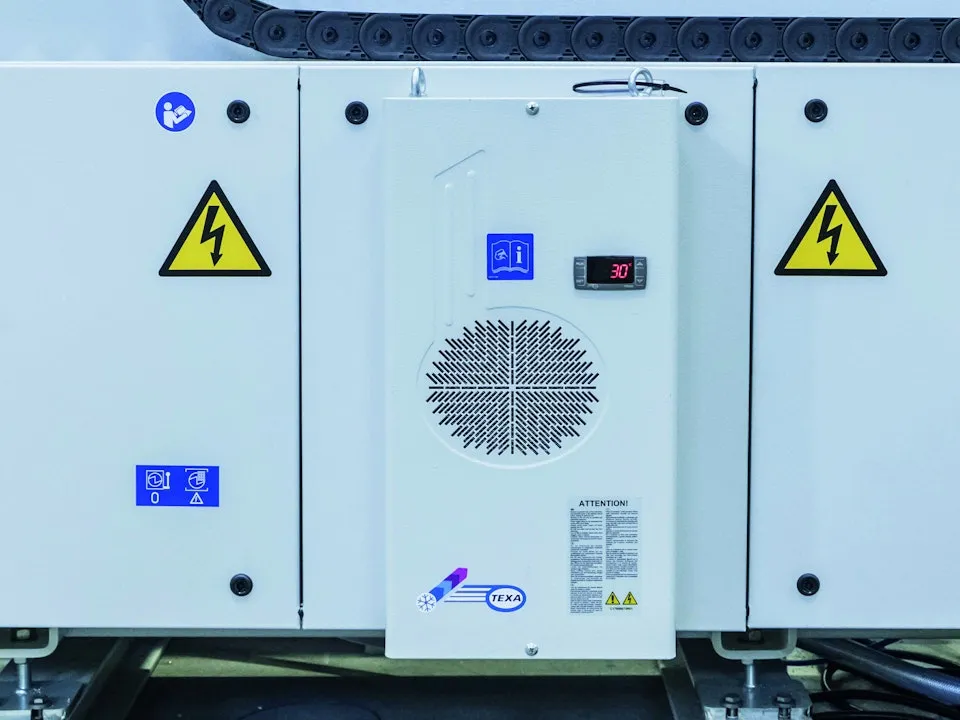

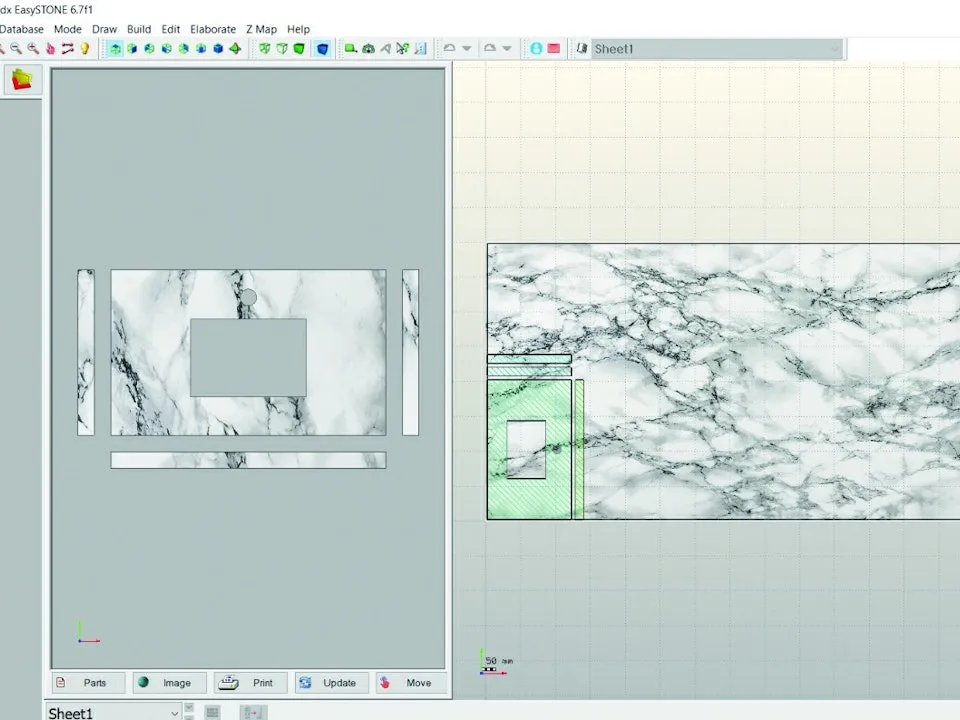

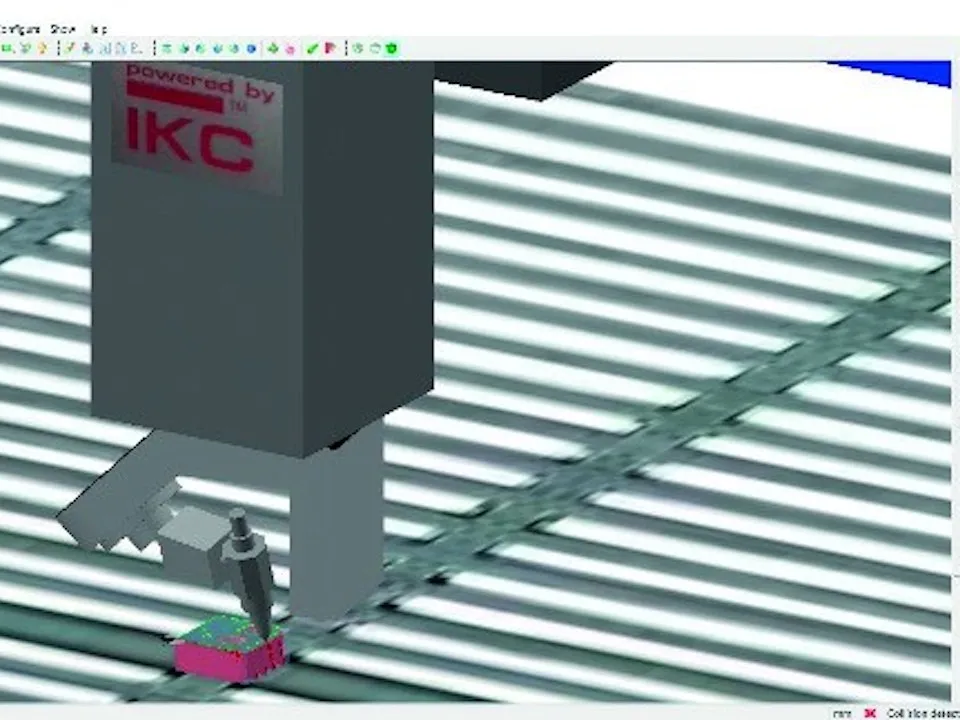

Brembana Proline

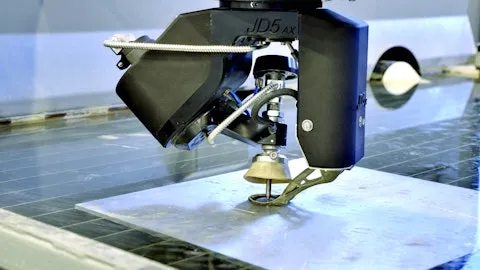

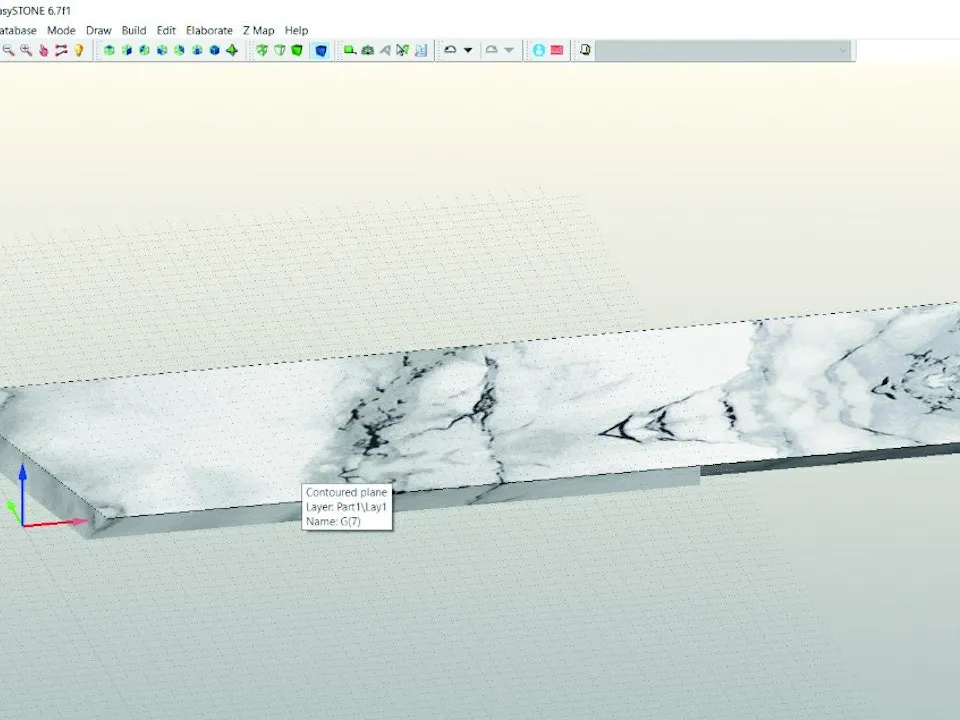

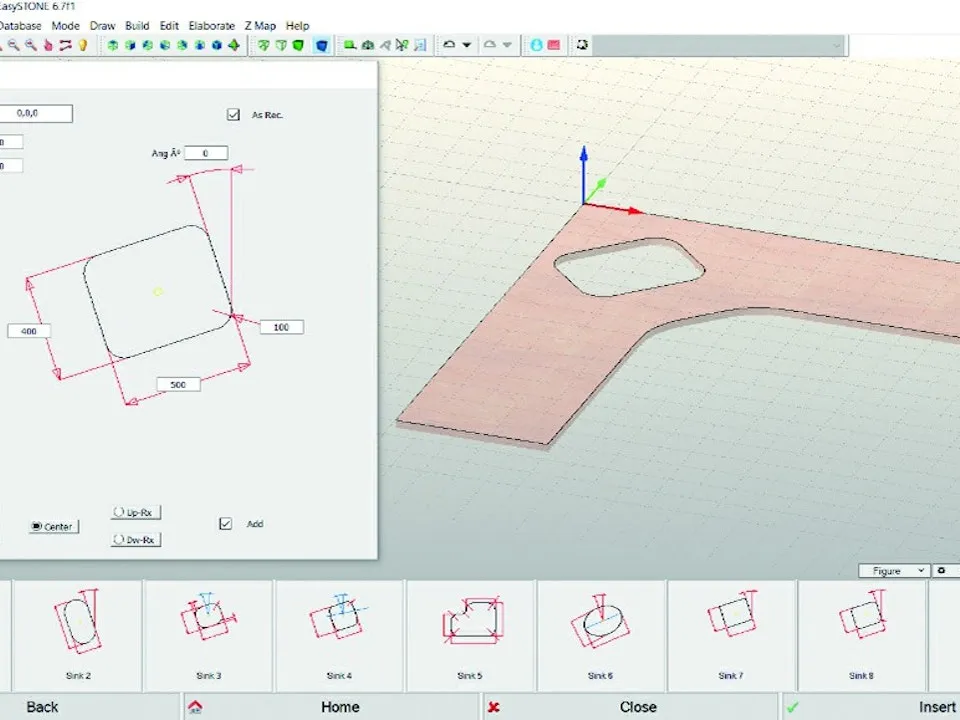

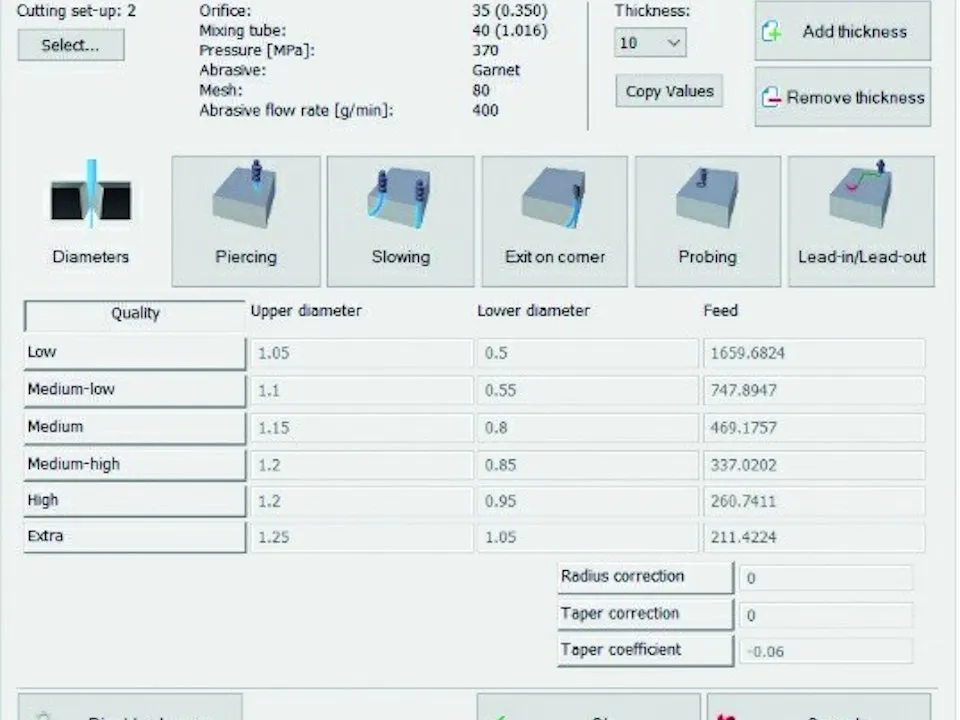

A genuine machining center, conceived and designed with advanced technical solutions for the waterjet cutting technology, in order to achieve unmatched performance. Tecnocut Proline is built around a stainless-steel frame ready for integration with the “dredge”, a fully automated and maintenance free abrasive removal system, an automatic water level control and rotating axes for pipes processing. The monolithic structure allows the 330 kg abrasive propulsor and the new generation hybrid intensifier to be integrated on the machine. The gantry structure can guarantee maximum reliability over the years, thanks to tempered and ground racks and spiral pinions combined with gearbox that have a backlash of less than 1 arcmin. The racks and sliding guides on the axes are protected by CMS’ revolutionary “Powder-Free” system that is an engineering masterpiece of an impenetrable labyrinth of casings that guarantee full protection against water and dust.
Technical data
| X axis stroke (1 head) | 3250 mm / 10.6 ft / 4250 mm / 13.9 ft |
|---|---|
| Y axis stroke | 1700 mm / 5.5 ft / 2000 mm / 6.5 ft |
| Z axis stroke (3-axis head) | 300 mm / 12 in |
| Z axis stroke (5-axis head) | 200 mm / 9 in |
| C axis (5 axis only) | Infinite / Infinte |
| B axis (5 axis only) | +/- 62° |
| Xy axis rapid speed | 40000 mm/min / 131 ft/min |
| Worktable size | 3820 x 1920 mm / 12.5 x 6.3 ft / 4820 x 2220 mm / 15.8 x 7.8 ft |
| Worktable load capacity | 1000 kg/m2 |
| Position accuracy | +/- 0,035 mm |
| Position repeatability | +/- 0,025 mm |
| Installed power | 6 kW / 8 HP |
| Footprint lxpxh | 6930 x 3180 x 3900 mm / 20.9 x 10.4 x 12.7 ft / 7290 x 3480 x 3900 mm / 23.9 x 11.4 x 12.7 ft |
| Weight max (empty) | 6500 kg / 14330 lb / 8000 kg / 17600 lb |
