3/4 axes numerical control machining center with rotating table
Benefits

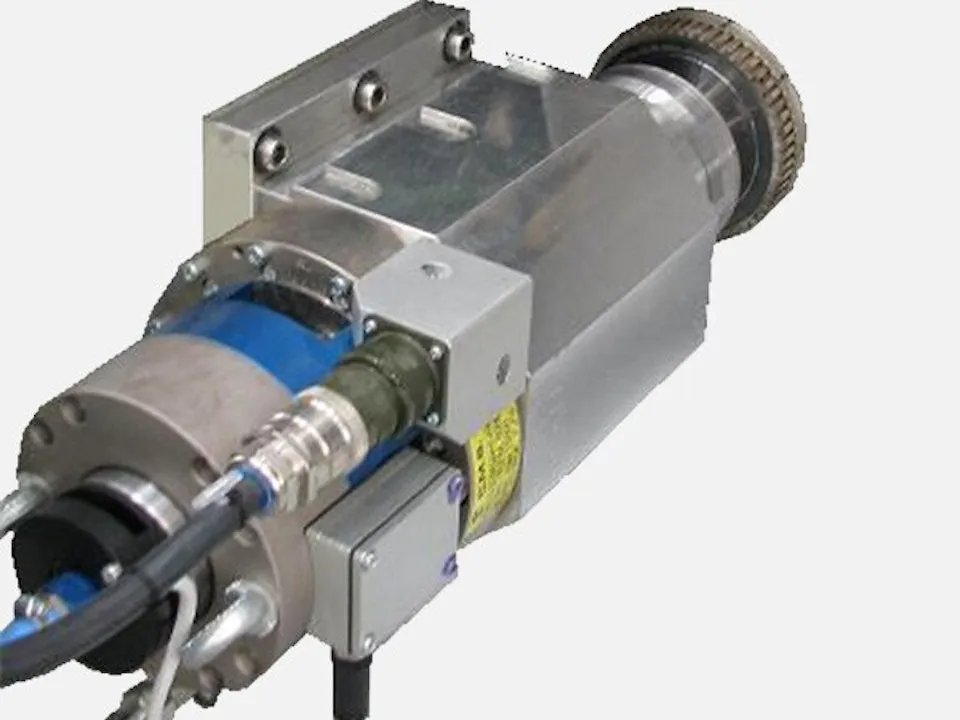

Power at the top of the category

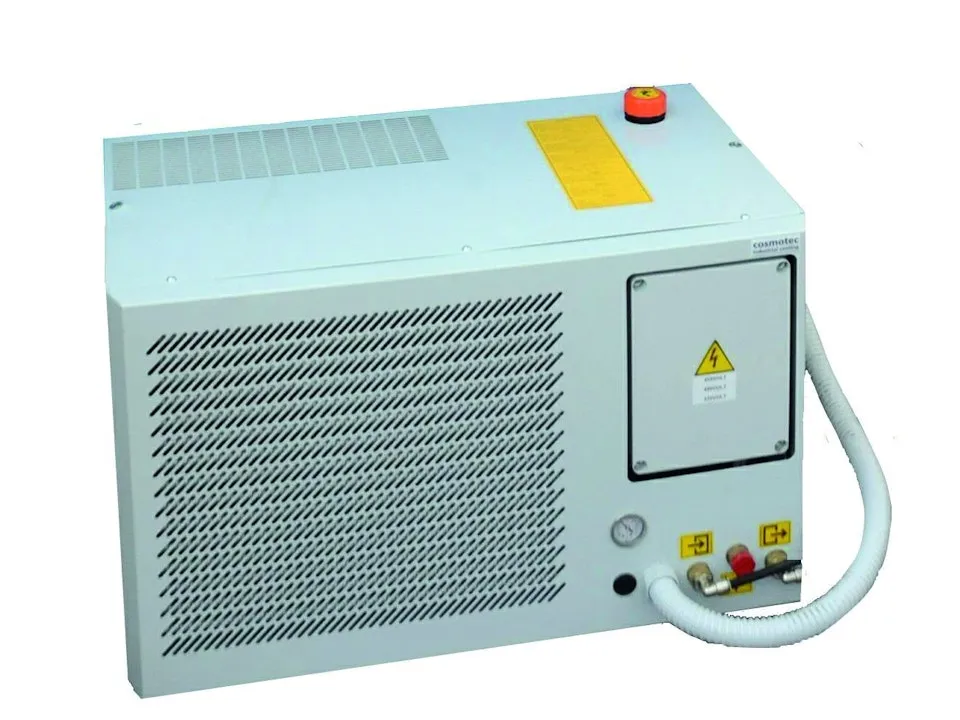

The electrospindle is CMS technology, liquid-cooled and with power up to 30 kW, which guarantees ideal operating conditions and up to 21% savings on cycle times.

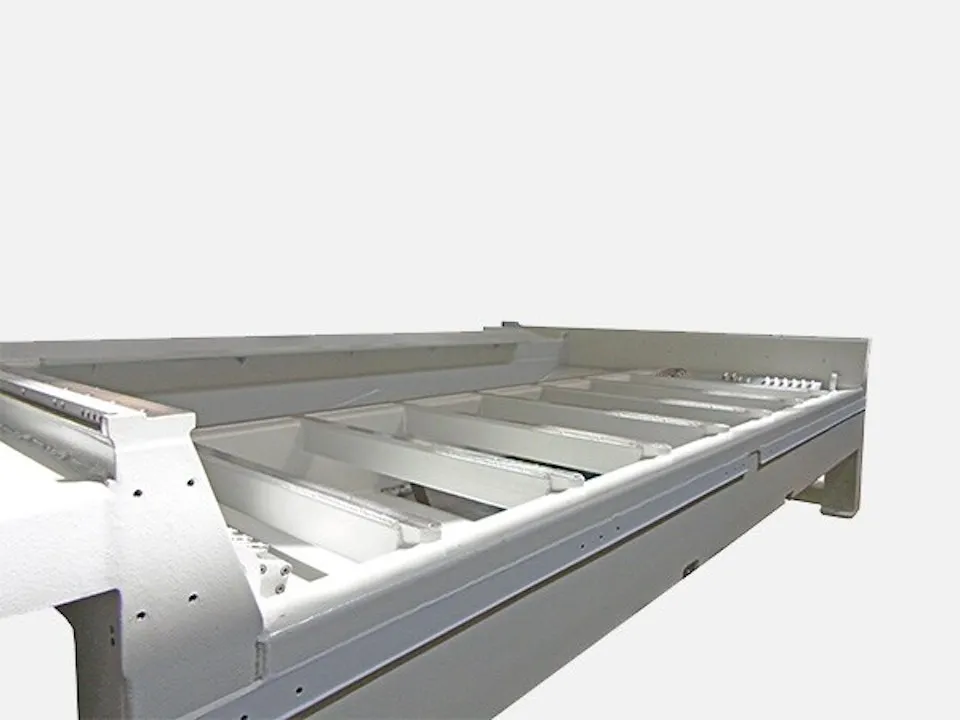

Unrivalled mechanics
The sturdy structure of the machining center ensures the optimal absorption of stresses derived from machining, guaranteeing a high constant precision over time. The machine base fixed directly to the ground, without the need of building work, increases the stability and performance.

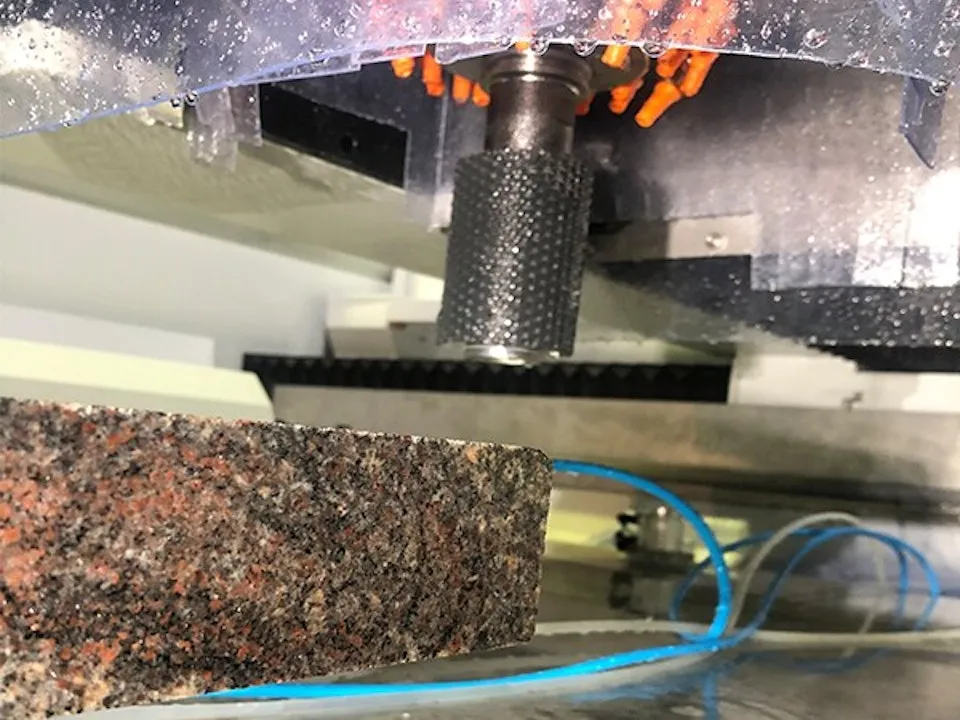

Quality without compromise
Tool wear control system, which enables the automatic adjustment of the tool position, ensuring top quality finishing.

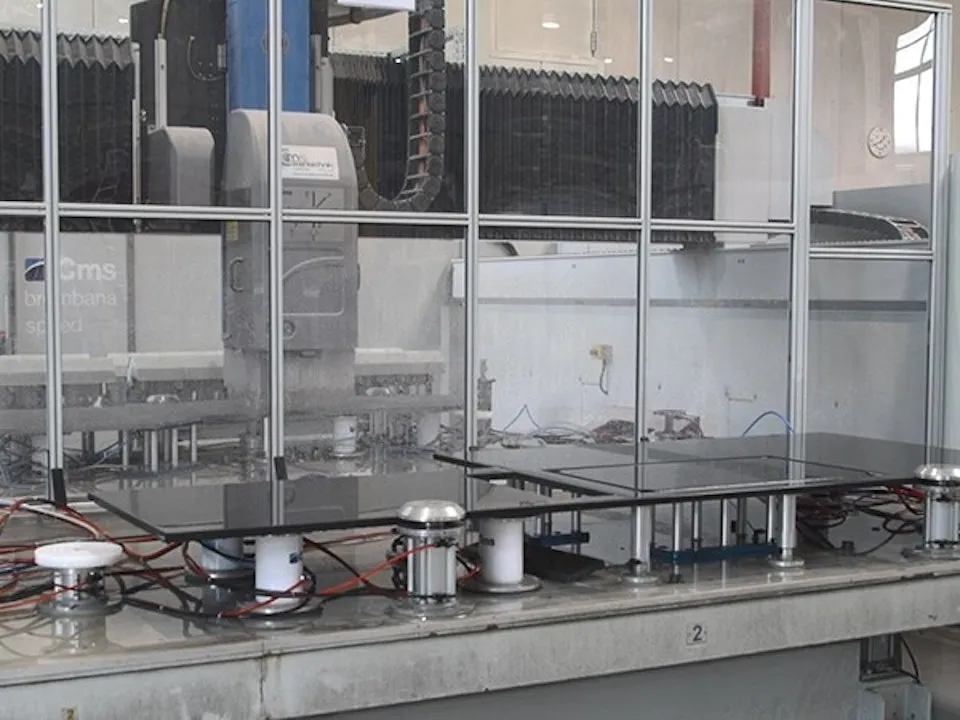

+38% productivity compared to a standard machine

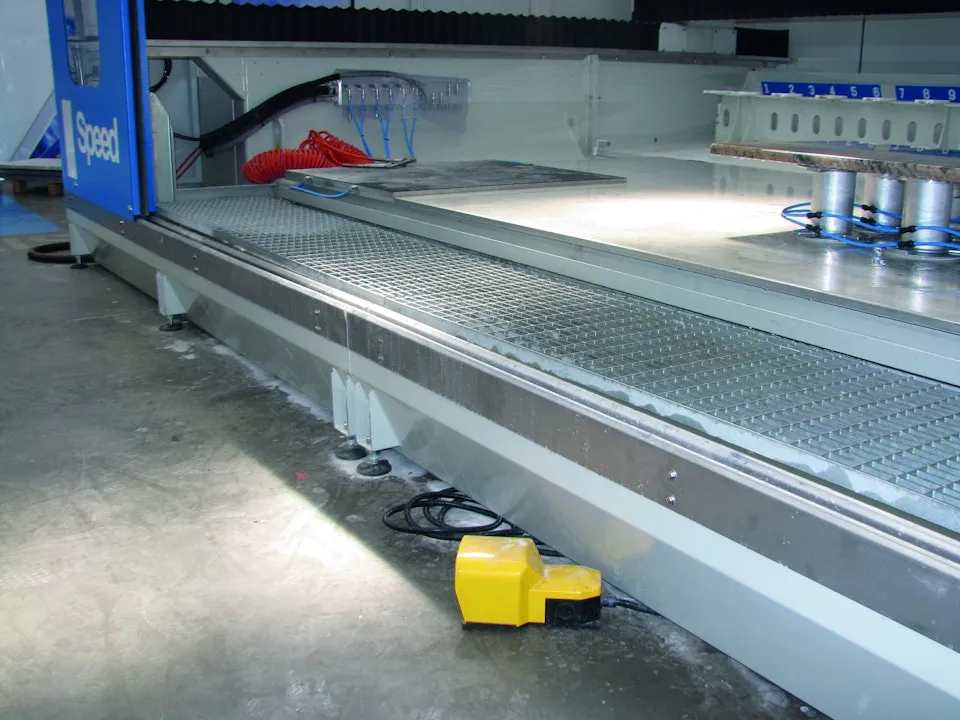

The rotary table work plane allows to unload the finished pieces and load new raw pieces while the machine is always in production, eliminating downtime for loading / unloading operations.
Brembana Speed Tr
brembana speed TR is a Numerically Controlled Machining Center with rotating table and three/four interpolated axes suitable for processing both slabs and blocks even with high thickness in marble, granite, composite stone, and ceramic. It can perform each type of raw and polished contouring, as well as milling, drilling, countersinking, bas relief, and writing. Working plane with rotary table allows pendular working mode, resetting downtimes for loading / unloading operations. This machine can be customized to the customer’s needs, it is the winning solution for every fabshop.
Technical data
| X axes stroke | 3800 ÷ 4250 mm / 150 ÷ 167 in |
|---|---|
| Y axes stroke | 2610 ÷ 4550 mm / 103 ÷ 179 in |
| Z axes stoke | 420 ÷ 900 mm / 16 ÷ 35 in |
| Rotating axis | C = 360° stepless |
| Working area | 3600 x 1700 mm / 142 x 67 in 3800 x 1600 mm / 150 x 63 |

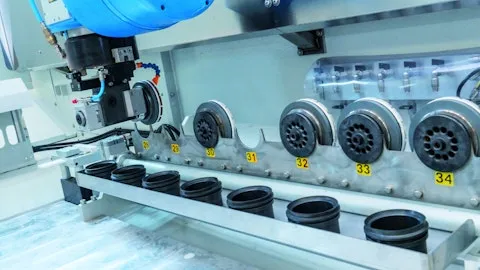

| No. stations tool changer | 26 ÷ 120 |
| Power | 13,5 KW / 18 Hp / 30 kW / 40 Hp |
| Revolution | 0÷15000 rpm / 0 ÷ 12000 rpm |
| Connection | ISO 40 |
| Torque | 22 Nm at 6000 rpm / 39 Nm at 6000 rpm |
| Electrical Cabinet | integrated in the base |
| Weight | 8900 ÷ 10800 kg |
