Comandulli · Belt Edge Polishing
Small in size, but powerfull in performance
Benefits

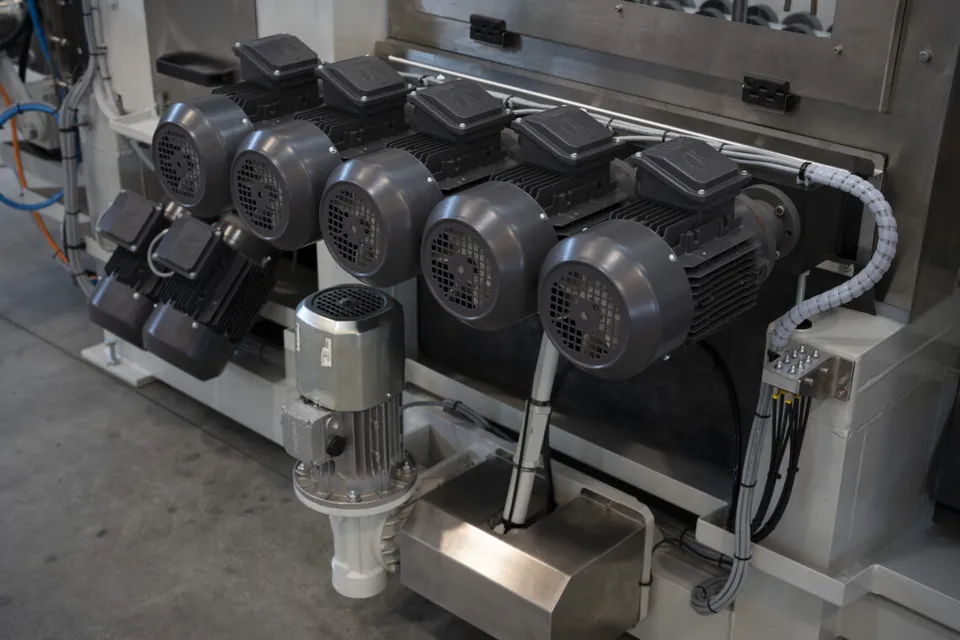

Feature 1

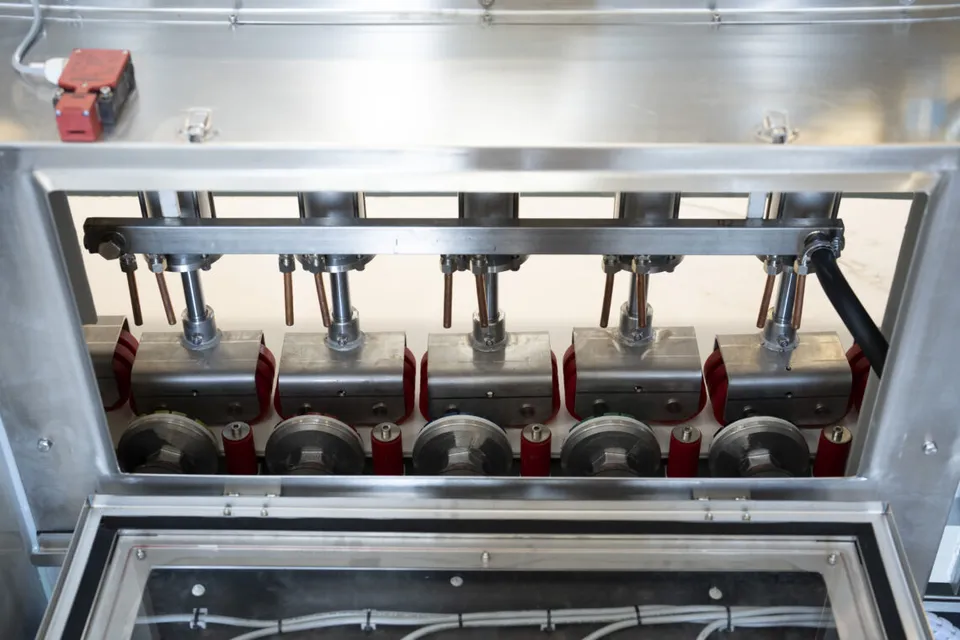

Feature 2

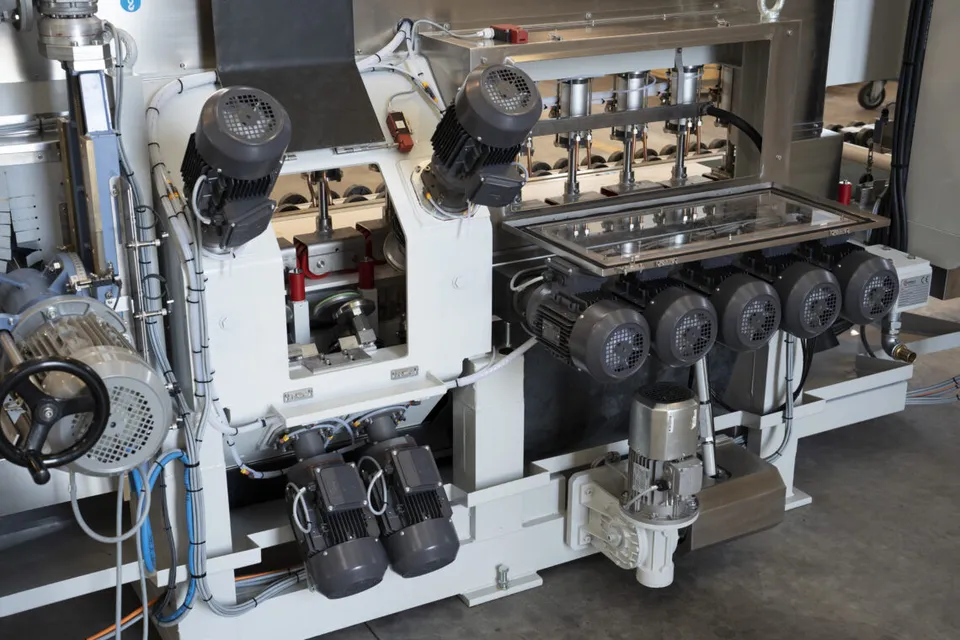

Feature 3
Feature 5
Feature 6
Feature 7
Feature 8
Feature 9
Feature 10
Feature 11
Feature 12
Penta
Automatic edge poliscing machine able to perform all the finiscing operations on marble and granite slabs used in the building field, furnishings and monuments. It performs gauging, straight edge, bevels, lower and upper groove through fast and simple procedures.
Technical data
| Frontal spindles | 5 n° |
|---|---|
| Bevelling spindles | 4 n° |
| Diameter of the gauging wheel | 190 mm |
| Diameter of the polishing wheel | 130 mm |
| Diameter of the disc for upper/lower grooves | 260 mm |
| Advancing/feed speed (conveyor belt) | 0 - 3 m/1' |
| Conveyor belt width | 600 mm |
| Working thickness | 6 - 60 mm |
| Minimum working width | 80 mm |
| Loading plane height | 750 mm |
| Rated output | 20 kW |
| Dimensions (rollers excluded) | 3,8 x 1,7 x 1,8 m |
| Weight | 2800 kg |
Features
Request a quote — Penta
Tell us what you machine and we will help you spec the right equipment, software and service plan.
