TrueNorth CNC - Mini Compact L 2.1

Dal Prete · Water Treatment

The Mini Compact L 2.1 is the best-selling compact wastewater treatment system, as it meets the needs of most companies.

Designed for

• If you are a structured workshop processing raw materials such as marble, granite, stone, composite materials, ceramics, or cement. • If you want to reduce operator intervention on the wastewater treatment system. • If your company is likely to expand rapidly.

Benefits

Single block of only 6 m2 Saves space.

Automated operations. Saves time and reduces human error.

The resulting waste is dewatered sludge. Keeps the workplace clean.

Integrated clarification and dewatering. Easy to use.

LAN control. Immediate technical support.

10” touchscreen with DPURE 2.1 software. Full control.

Series installation. Clarified water increases as needed.

Mini Compact L 2.1

The Mini Compact L 2.1 is the best-selling compact wastewater treatment system, as it meets the needs of most companies.

Technical data

Clarified water output l/min	600
Pressed sludge output m3/h	0,23
Transport footprint m	6
Filter press plates	8
Plate dimensions in millimetres	300x300
Total installed power kW	6,5
On request	Clarified water output up to 750 l/min Also available in a lowered version (4,900 mm) Base insulation Decanter material: stainless steel or galvanized steel Automatic pH control.

Other features

IP55 protection against dust and water jets.
Shipped in two parts: the cylinder and the platform containing all components.
10” touchscreen for viewing and controlling all system components.
Alarm management with alerts on the integrated touchscreen and optionally via SMS.
Fully automated control of clarification and dewatering cycles.
Planning of dewatering cycles based on production needs.
LAN connection for remote assistance.
Customizable software.

Details

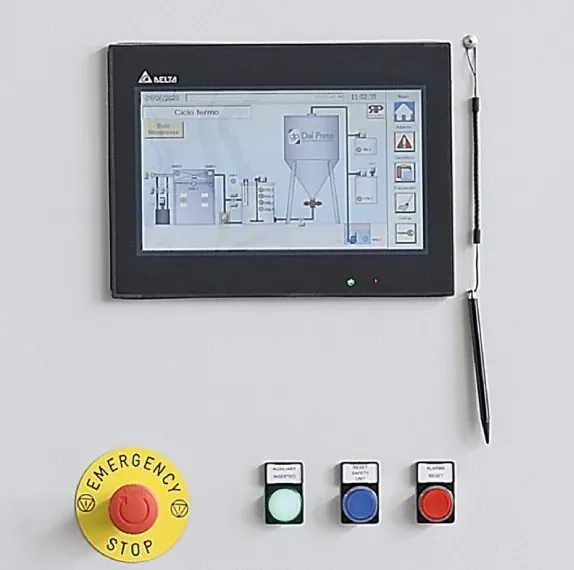

Mini Compact L 2.1 — Control panel with 10” touchscreen to manage all plant operations. — Control panel with 10” touchscreen to manage all plant operations.

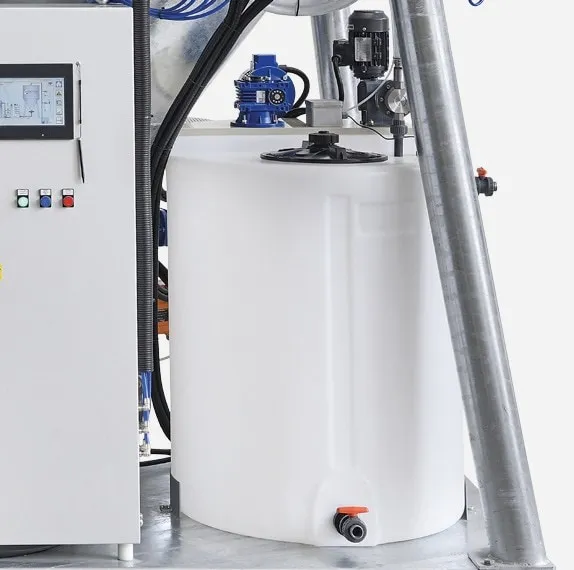

Mini Compact L 2.1 — Automatic flocculant dosing station. — Automatic flocculant dosing station.

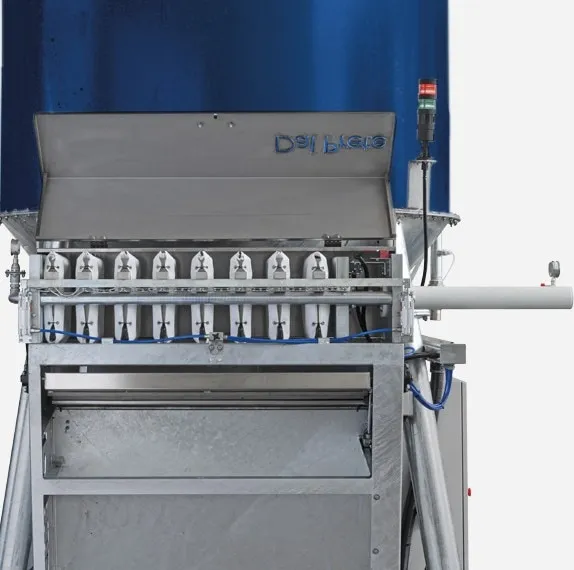

Mini Compact L 2.1 — Hot-dip galvanized filter press with stainless steel cover and drainage channel. — Hot-dip galvanized filter press with stainless steel cover and drainage channel.

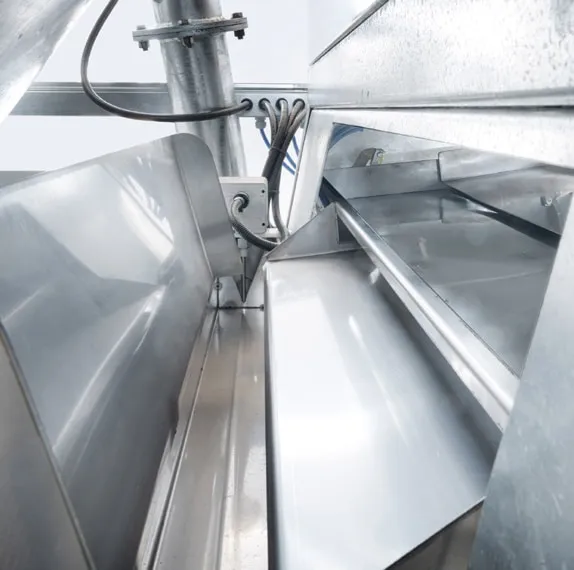

Mini Compact L 2.1 — Water collection system from the filter press with automatic drip trays. — Water collection system from the filter press with automatic drip trays.

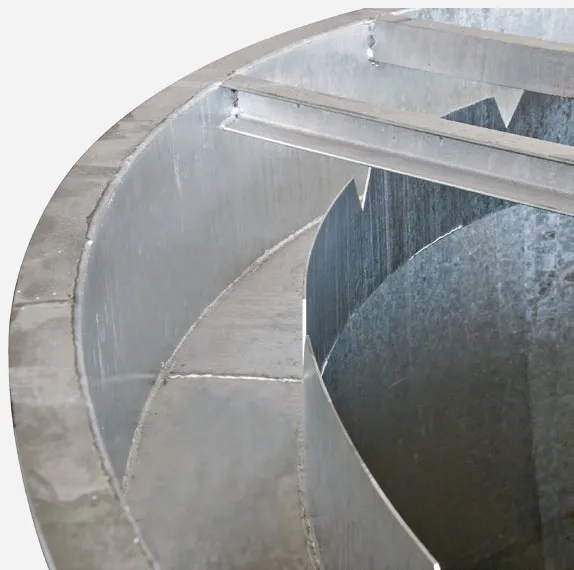

Mini Compact L 2.1 — Overflow channel for clarified water at the top of the cylinder. — Overflow channel for clarified water at the top of the cylinder.

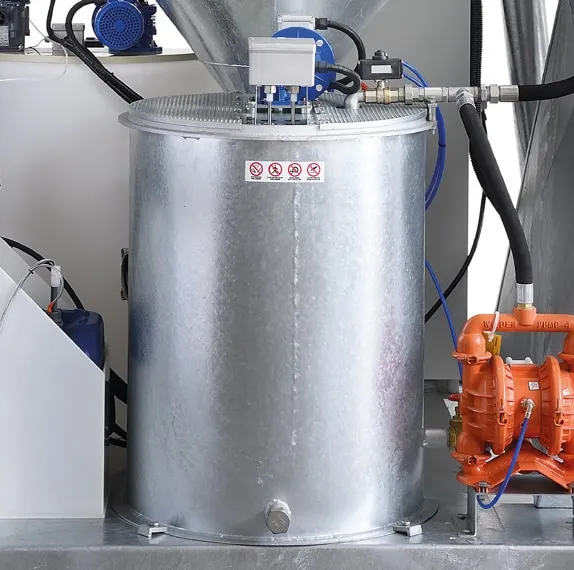

Mini Compact L 2.1 — Hot-dip galvanized sludge homogenization station. — Hot-dip galvanized sludge homogenization station.
