Dal Prete · Water Treatment

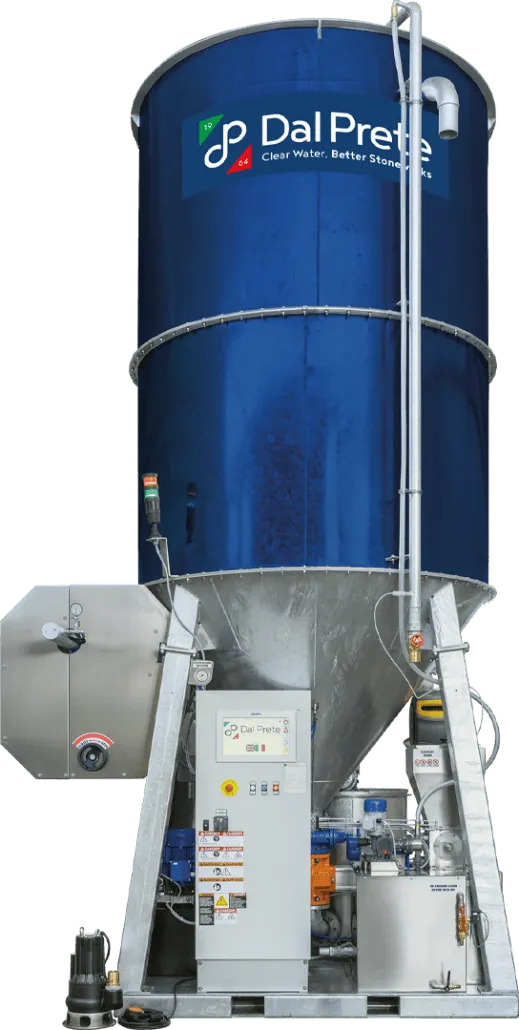

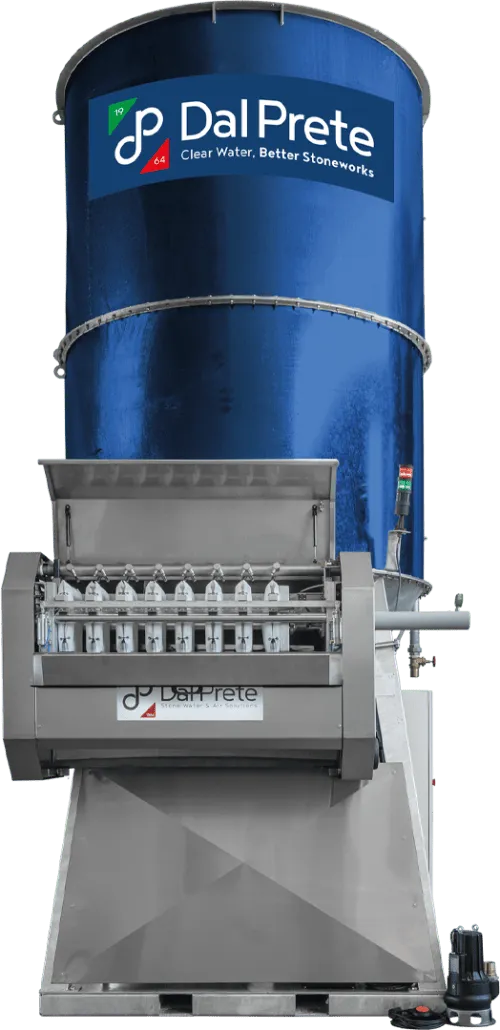

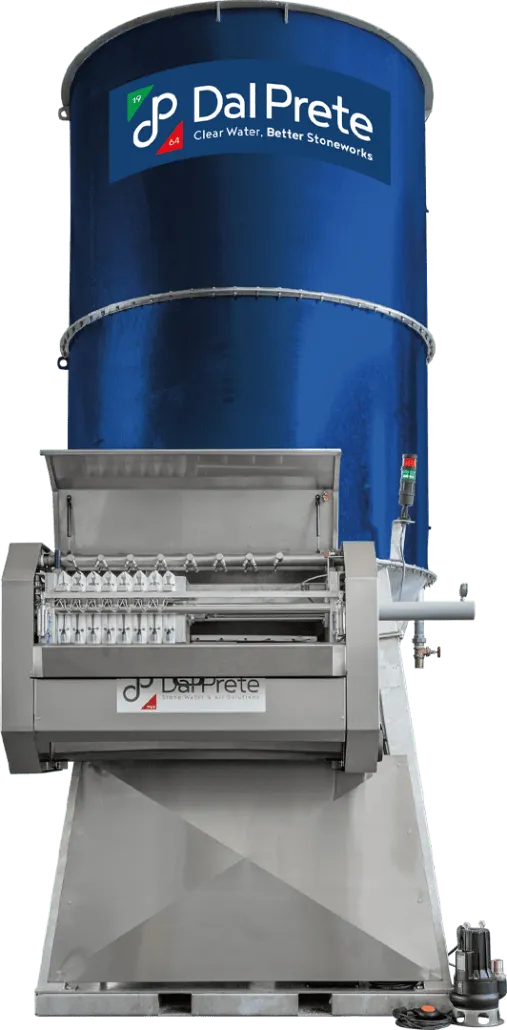

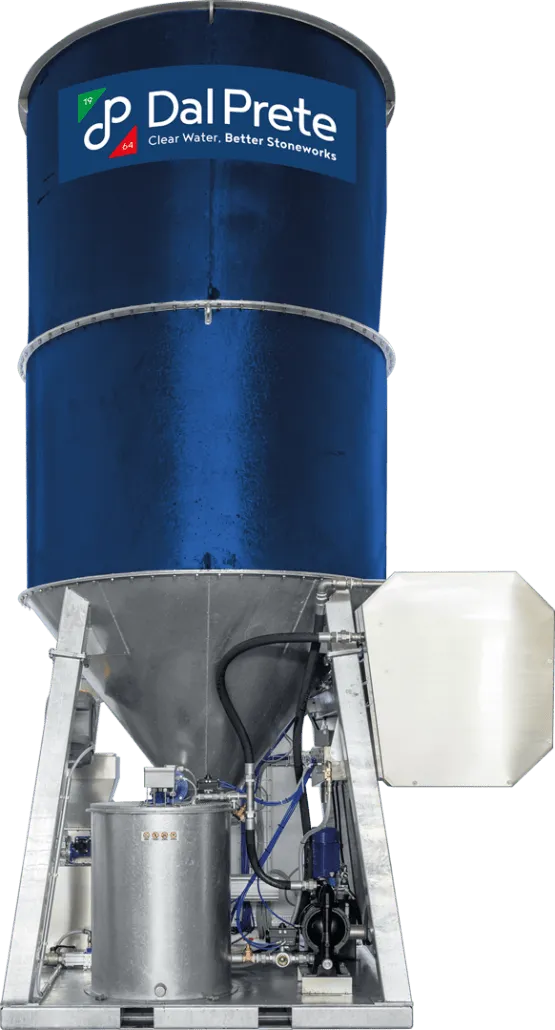

The Mini Compact L 3.1 Premium is the compact wastewater treatment system that offers extremely high levels of automation and safety.
Designed for
• If you want to minimize operator intervention in wastewater management. • If you aim to achieve high safety standards . • If you want to improve competitiveness by optimizing time, resources, and organization.
Benefits
Single-block unit of just 6 m2 Saves space.
Automated operations. Saves time and reduces human error.
The resulting waste is dewatered sludge. Keeps the workplace clean.

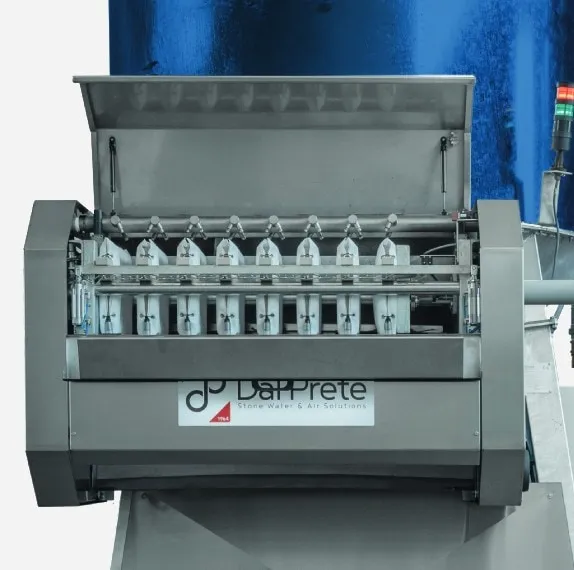

Integrated clarification and dewatering. Easy to use.

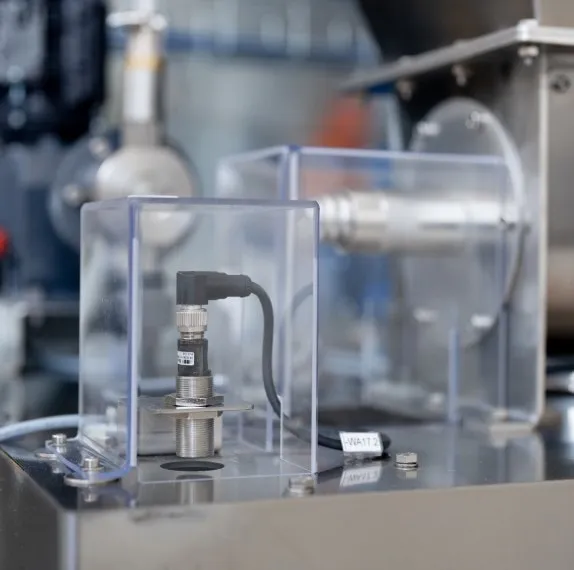

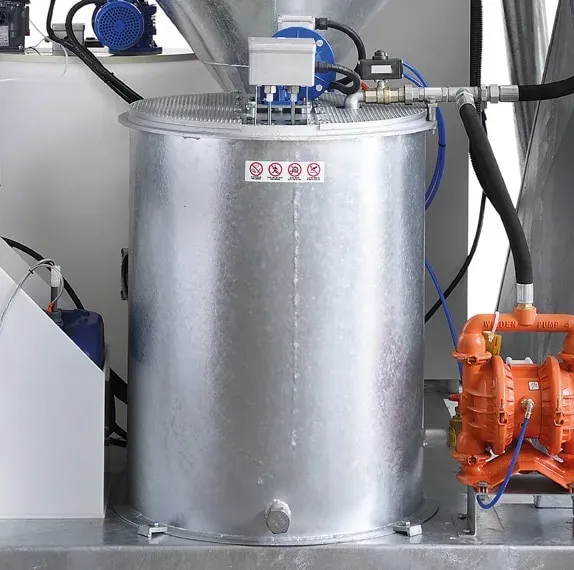

Ultrasonic sensors for level monitoring in the flocculant preparation tank and sludge discharge and homogenization tank. Maximum precision and long-lasting durability.
Self-maintenance. Minimal operator activity.

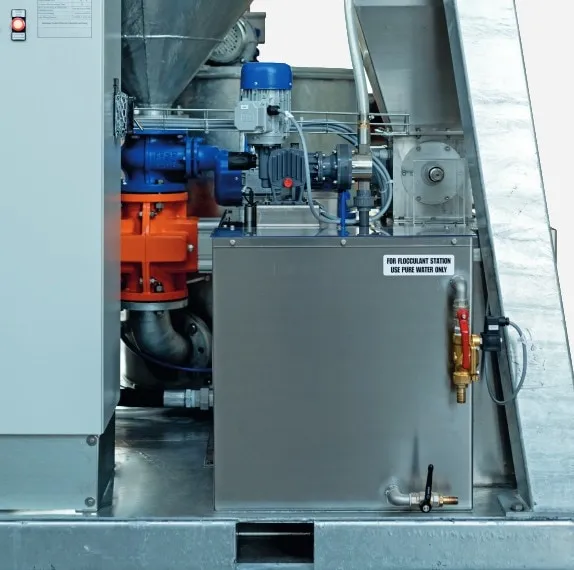

Automatic flocculant preparation and dosing. Saves on chemical agents and eliminates human error.

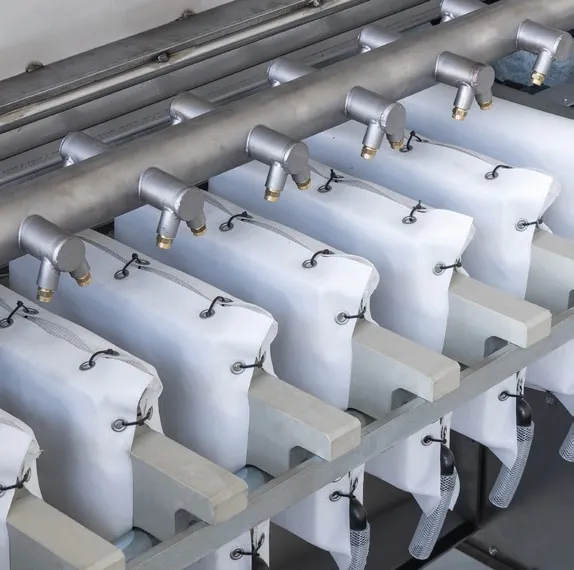

Automatic washing of main components in contact with sludge. Prolongs system life.
Series installation. Clarified water increases as needed.
Mini Compact L 3.1 Premium
The Mini Compact L 3.1 Premium is the compact wastewater treatment system that offers extremely high levels of automation and safety.
Technical data
| Clarified water output l/min | 600 |
|---|---|
| Pressed sludge output m3/h | 0,23 |
| Transport footprint m | 6 |
| Filter press plates | 8 |
| Plate dimensions in millimetres | 300x300 |
| Total installed power kW | 12,5 |
| On request |
|
Other features
- Ultrasonic sensors and a pressure transducer send a digital signal to the system software.

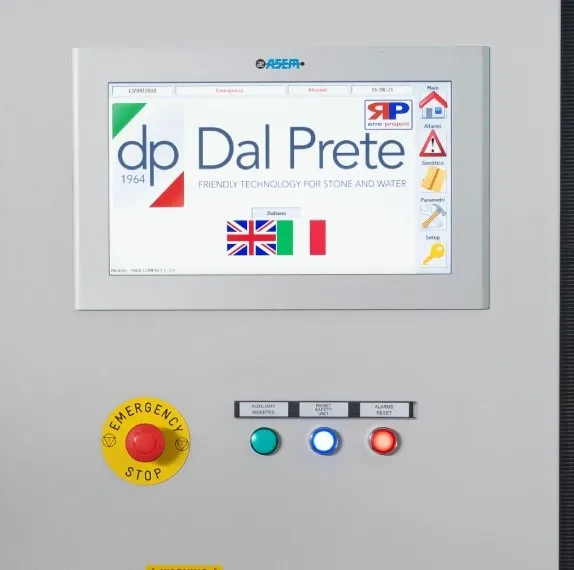

- 15,6" touchscreen with intuitive software. Remote control.
- Manual loaded in the control panel. IP55 protection against dust and water jets.
- 15,6” touchscreen to view and control all system components.
- Alarm management with alerts on the integrated touchscreen and optionally via SMS.
- Fully automated control of clarification and dewatering cycles.
- Dewatering cycle planning based on production needs.
- LAN connection for remote support. Direct connection via a dedicated portal.
- Customizable software.
Details
