Dal Prete · Water Treatment
The Super Compact 2.1 is the compact Dal Prete clarifier designed for companies that want a plant that is easy to use, with essential automatic functions and streamlined sludge management.
Designed for
• installing only the strictly necessary machines: bridge saw and manual polisher. • using one or two work centers that require a lot of water but do not generate large quantities of sludge.
Benefits
Single block, only 4m2. Save space
Square shape. Maximized decanter volume.
Automated operations. Save time and reduce human error.
Integrated clarification and dewatering. Easy to use.
The waste produced is dewatered sludge. Always a clean workplace.
10” touchscreen with DPURE 2.1 software. Full control.
Series installation. The clarified water increases as needed.
Super Compact 2.1
The Super Compact 2.1 is the compact Dal Prete clarifier designed for companies that want a plant that is easy to use, with essential automatic functions and streamlined sludge management.
Technical data
| Clarified water output l/min | 150 |
|---|---|
| Pressed sludge output m3/h | 0,1 |
| Transport footprint m | 3 |

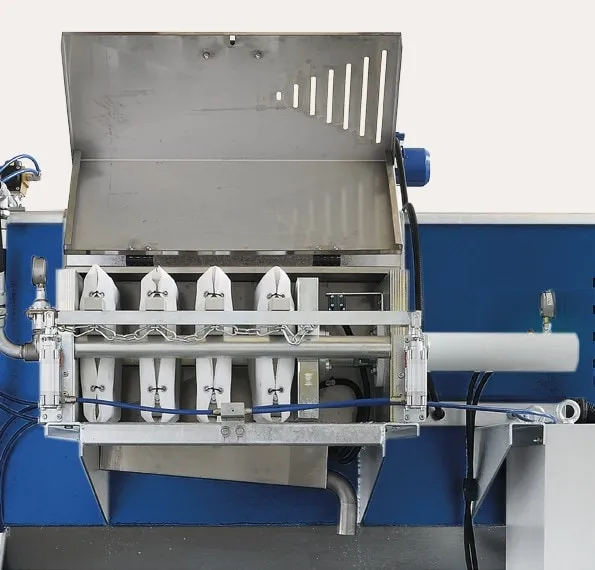

| Filter press plates | 4 |
| Plate dimensions in mm | 300x300 |
| Total installed power kW | 5,0 |
| On request |
|
Other features
- IP55 protection against dust and water jets.
- LAN control. Shipped as a single unit.
- Open space beneath the filter press.

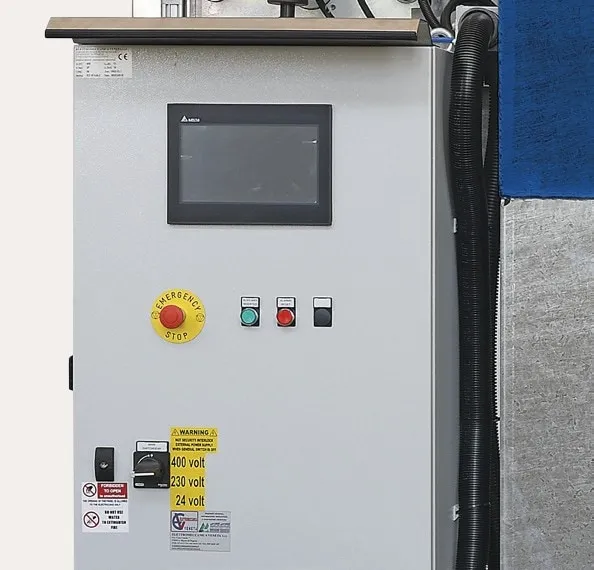

- 10” touchscreen for viewing and controlling all system components.
- Alarm management with alerts on the integrated touchscreen and optionally via SMS.
- Fully automated control of clarification and dewatering cycles.
- Planning of dewatering cycles according to production needs.
- LAN connection for remote assistance.
- Customizable software options.
